EXOcompact Vido
5 EXOcompact Vido
5.1 Status indications
No status indications are available for this model.

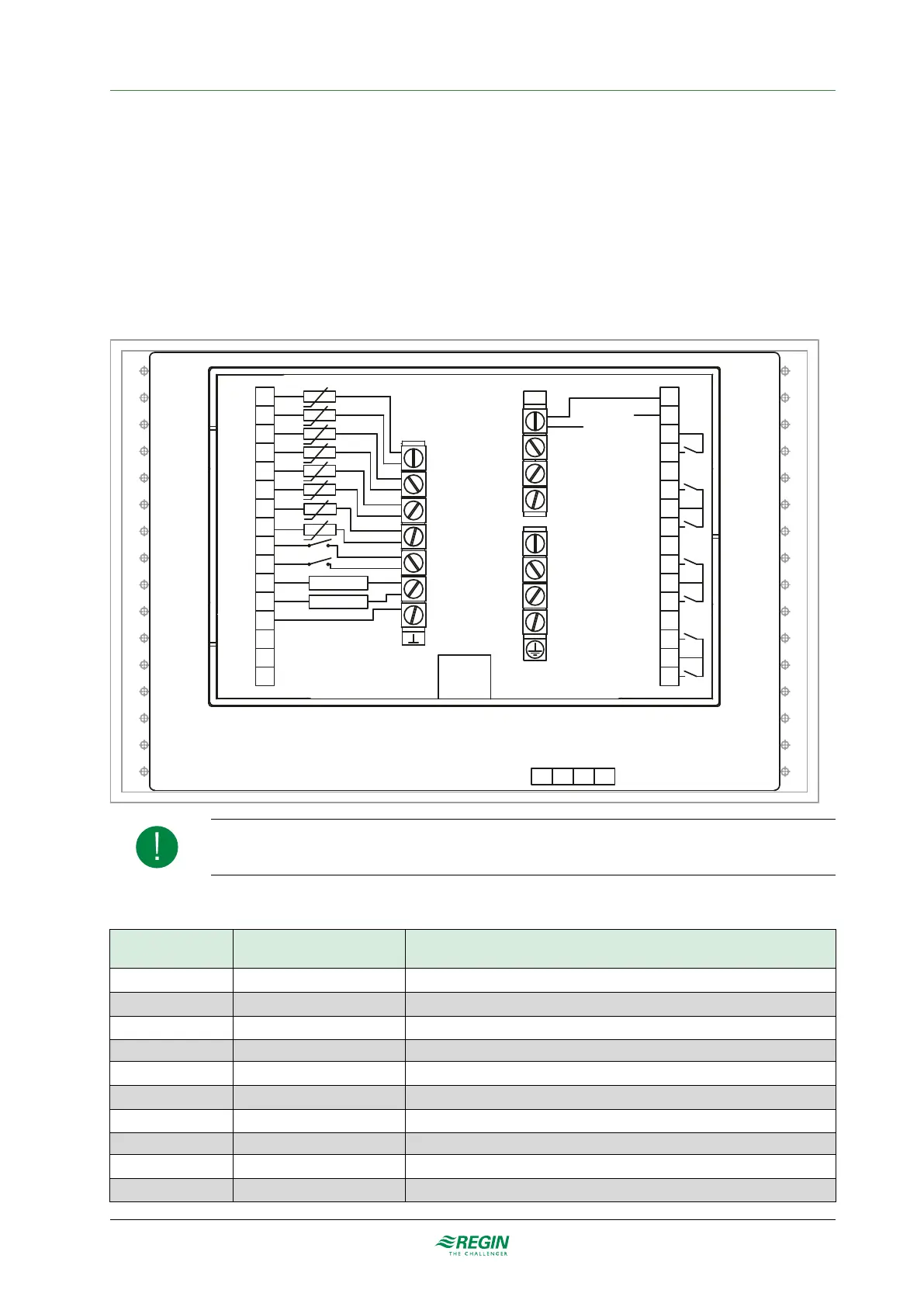

5.2 Terminals and wiring diagram
5.2.1 Models XCV193…-2
NNoottee!! Analogue inputs, digital inputs and universal analogue I/O:s must refer to a signal ground
terminal.
Table 5-1 XCV193…-2 controller terminals descriptions
Terminal № and
designator
Type Description
1 DO1 Digital output Output terminal DO1
2 Power supply Used for power supply to the digital outputs DO1 and DO2
3 DO2 Digital output Output terminal DO2
4 Not used
5 DO3 Digital output Output terminal DO3
6 Power supply Used for power supply to the digital outputs DO3 and DO4
7 DO4 Digital output Output terminal DO4
8 Not used
9 DO5 Digital output Output terminal DO5
10 Power supply Used for power supply to the digital outputs DO5 and DO6
View of terminal base
L
N
N
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
16
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
0..10V In/Out
1
8x PT1000
µ 1A 230V~ (ind.)
TCP/IP
ext.
Display
P1
B
A
E
AI1
AI2
AI3
AI4
AI5
AI6
AI7
AI8
DI1
DI2
UA1
UA2
Gnd
DO7
DO6
DO5
DO4
DO3
DO2
DO1
N
MBUS*
B
A
* Depending on the model
0..10V In/Out
20
EXOcompact Ardo, Eedo and Vido manual, Rev.
B
