EXOcompact Vido

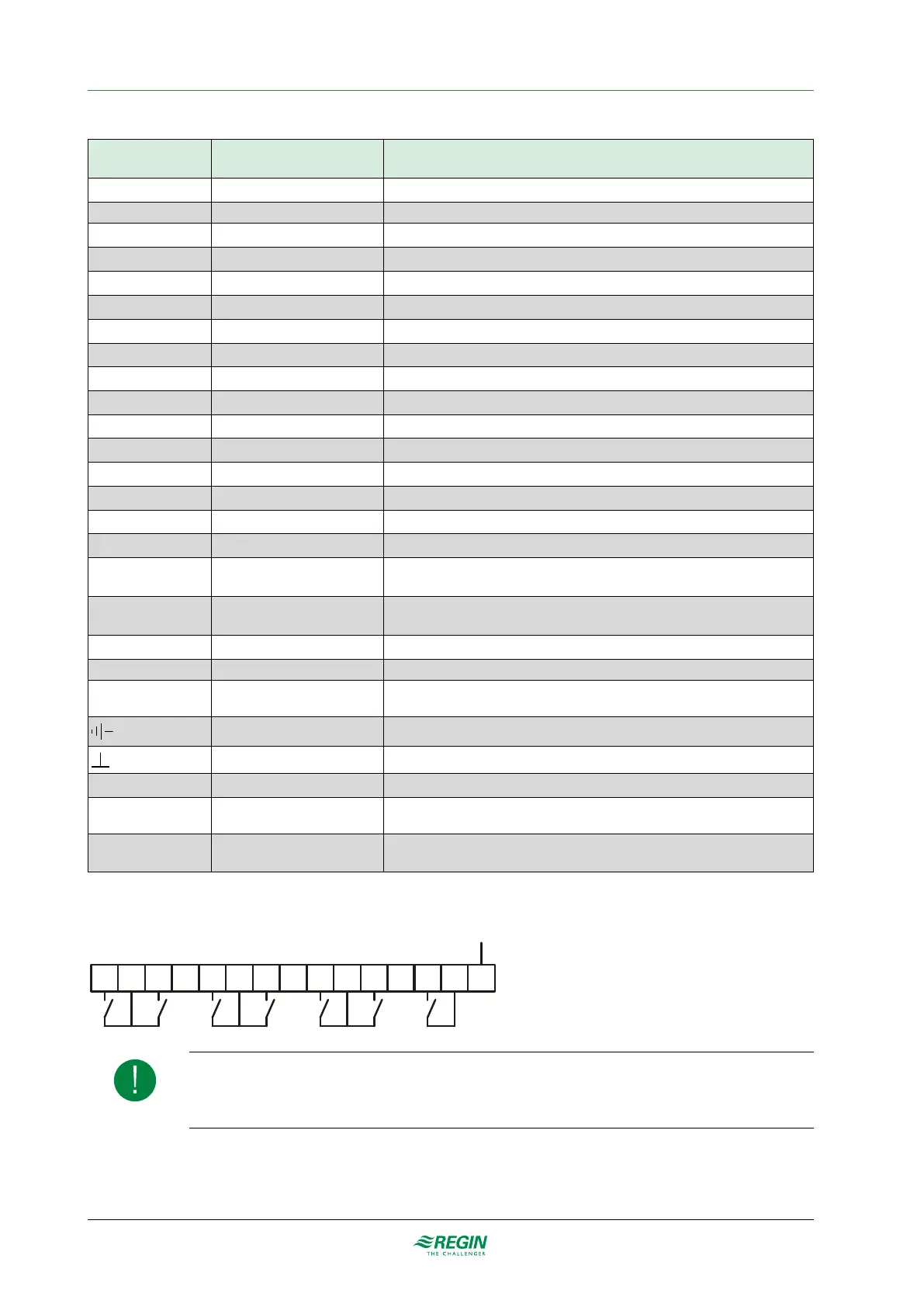

Table 5-1 XCV193…-2 controller terminals descriptions (continued)
Terminal № and
designator
Type Description
11 DO6 Digital output Output terminal DO6
12 Not used
13 DO7 Digital output Output terminal DO7
14 Power supply Used for power supply to the digital output DO7
15 L Supply voltage 230 V AC supply voltage
16 N Supply voltage (neutral) 230 V AC supply voltage (neutral)
17 AI1 Analog input Input terminal AI1
18 AI2 Analog input Input terminal AI2
19 AI3 Analog input Input terminal AI3
20 AI4 Analog input Input terminal AI4
21 AI5 Analog input Input terminal AI5
22 AI6 Analog input Input terminal AI6
23 AI7 Analog input Input terminal AI7
24 AI8 Analog input Input terminal AI8
25 DI1 Digital input Input terminal DI1
26 DI2 Digital input Input terminal DI2
27 UA1 Universal analogue input or
output
Universal analogue I/O, can be configured to act as either an analogue input
or as an analogue output
28 UA2 Universal analogue input or
output
Universal analogue I/O, can be configured to act as either an analogue input
or as an analogue output
29 Gnd Digital ground Signal ground for digital inputs
30 Not used
31 MBUS B
32 MBUS A
M-Bus port Used for communication via M-Bus
Ground Earth ground for 230 VAC
Signal ground Used as ground for I/O:s
TCP/IP Ethernet communication port 8P8C modular connector used for Ethernet - TCP/IP communication
P1 [E/N/A/B] RS485 communication port 1 RS485 connector used for communications via BACnet, or for master/slave
communication via Exoline or Modbus.
ext. Display External display communica-
tion port
4P4C modular connector used for communication with an ED-RU-... room unit
The relays (DO) are voltage-free and must receive power from a single pole for each relay.
NNoottee!! The lifetime of relays mainly depends on the number of switch cycles. Therefore it is recom-
mended to program the outputs so that the number of switch cycles per day is kept low. This can be
achieved by using suitable function blocks in EXOdesigner.
L
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
µ1A 230V~ (ind.)
DO7 DO6 DO5 DO4 DO3 DO2
DO1
EXOcompact Ardo, Eedo and Vido manual, Rev.
B
21
