3.2 Terminals and wiring diagram
3.2.1 Model XCA203W-4
The controller terminals are shown in Figure 3-1 and described in Table 3-1.

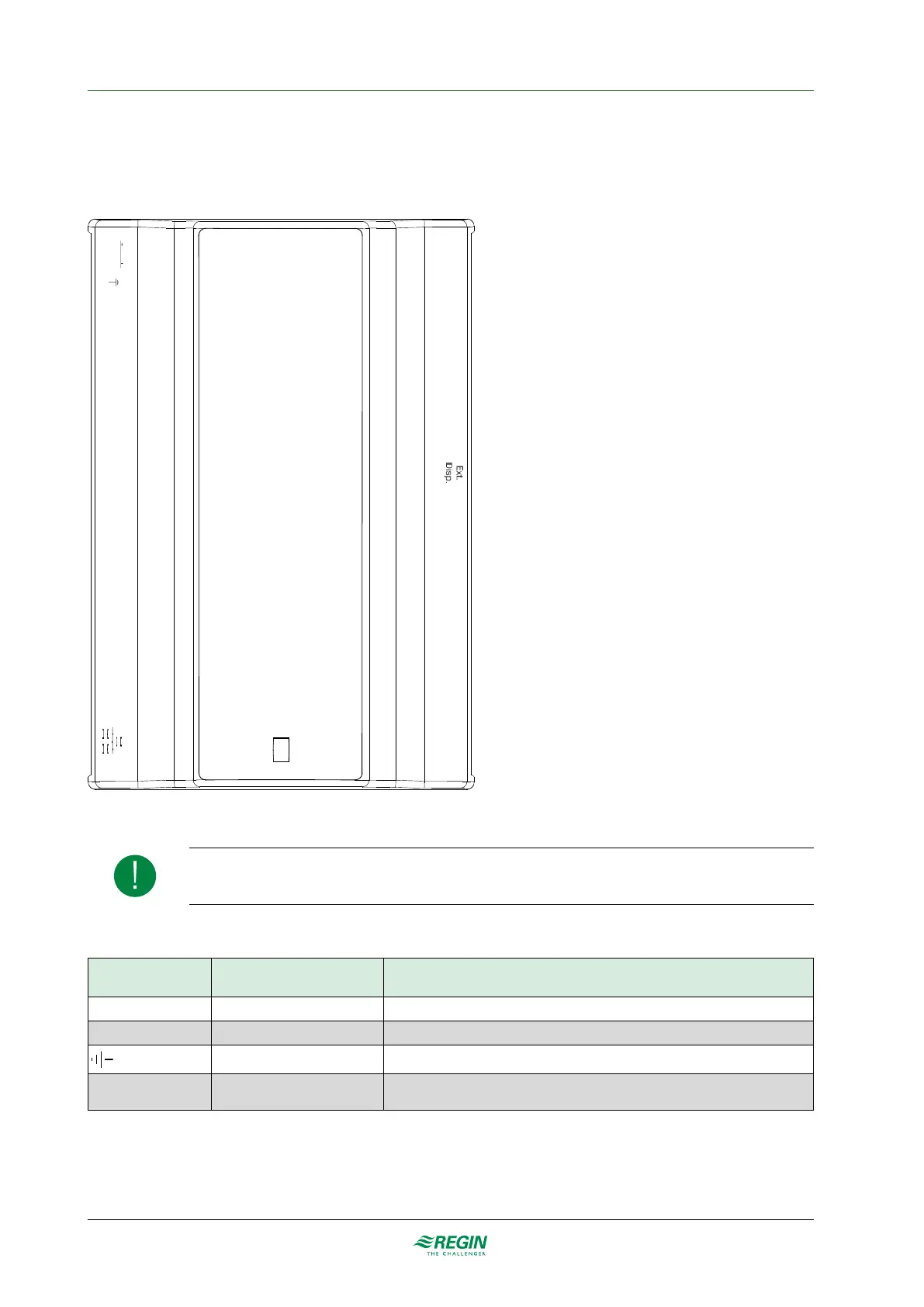

Figure 3-1 XCA203W-4 controller terminals layout
NNoottee!! This model can only be connected to 24 V AC, not DC.
Table 3-1 XCA203W-4 controller connection descriptions.
Terminal № and
designator
Type Description
1 G Supply voltage 24 V AC supply voltage.
2 G0 Supply voltage (reference) 24 V AC supply voltage (reference).
Ground Earth ground.
10 GDO
14 GDO
Supply voltage output 24 V AC supply voltage output for use together with digital outputs.
EXOcompact
Ardo
3
25 AI4a
30 AGND
1 G
2 G0
10 GDO
11 DO1b
12 DO2b
14 GDO
15 DO4b
16 DO5b
17 DO6b
13 DO3b
20 AGND
21 AI1a
22 AI2a
23 AGND
24 AI3a
31 CI1a
32 CI2a
AO1a 40
AO2a 41
AO3a 42
AO4a 43
AGND 45
GND 50
DI1b 51
DI2b 52
GND 53
DI3b 54
DI4b 55
E60
N61
A62
B63
N71
A72
B73
E70
{
P
1
{
P
2
