8 Maintenance

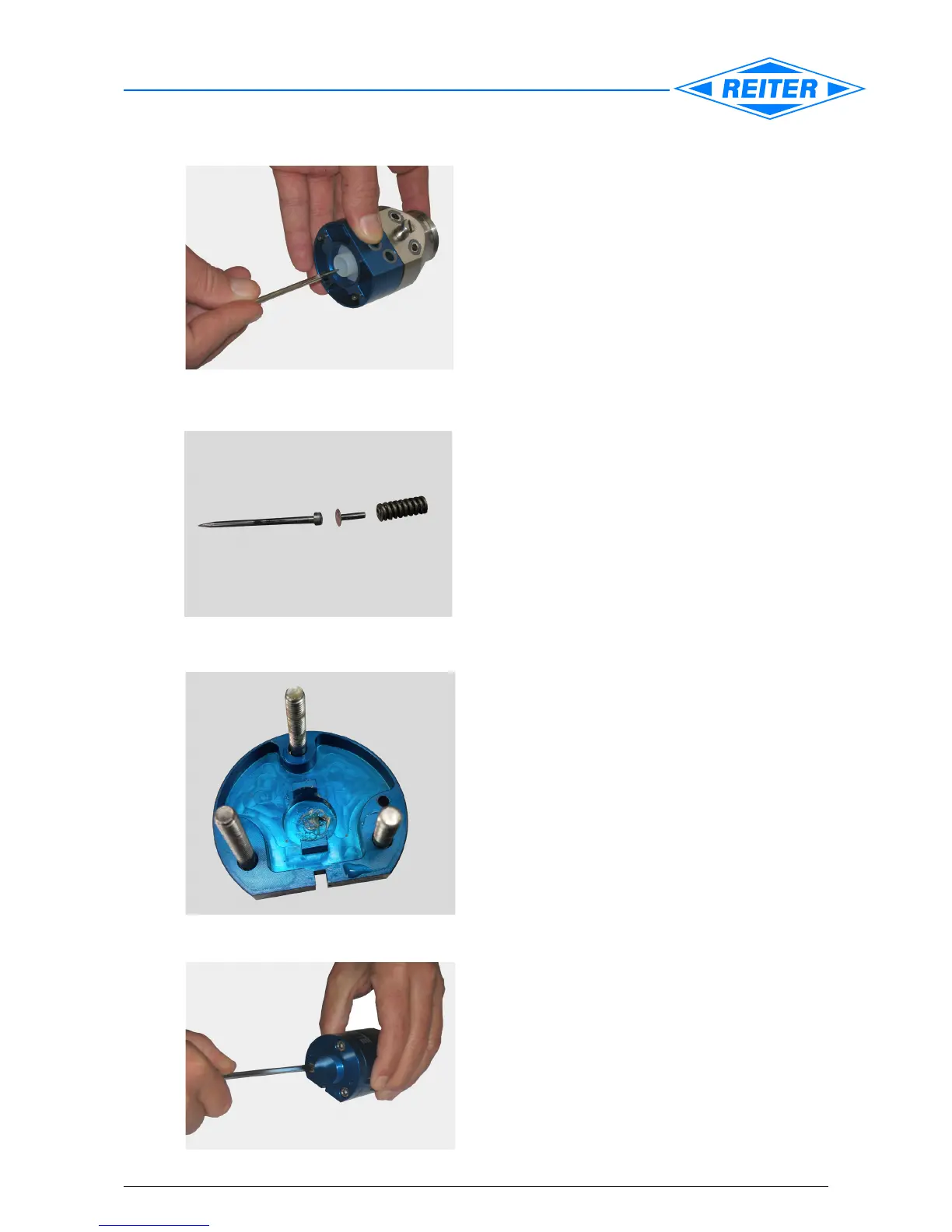

 9. Greasetipofthepaintneedle(13)withgun
greaseandinsertthroughthepiston(12)into
the needle set. Push manually careful for-
wardstowardsthenozzle.
 10. Placegreasedspringpin(14)andthetwo
compressionsprings–small(16),large(15)
– which are inserted into each other, on the
paintneedle(13).
 11. Closehousingwithendplate(17).
 12. TightenthethreescrewswithanAllenkeywith
4.5Nm.
