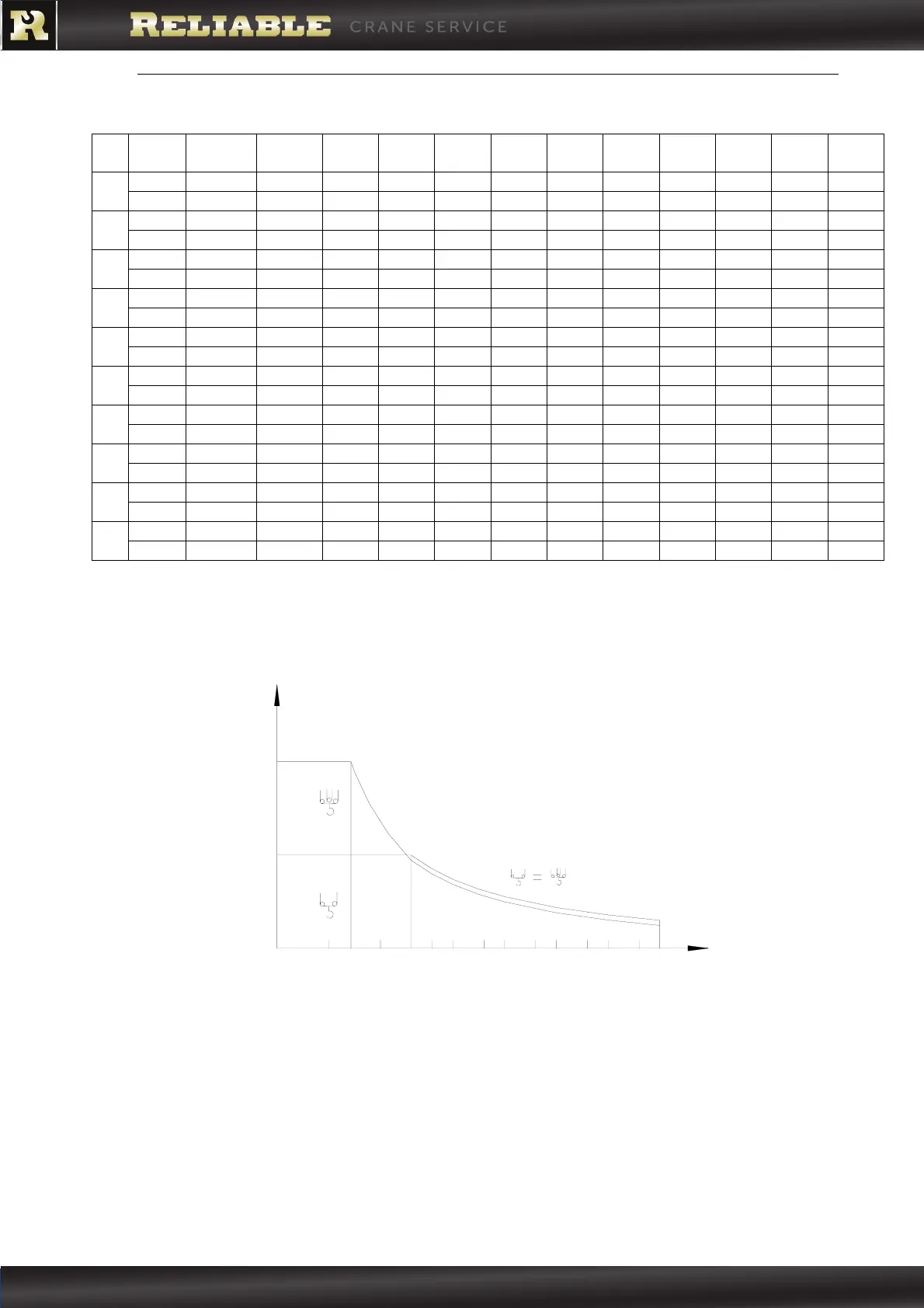

STT293 CONCISE TOWER CRANE MANUAL
-15- EURC1.0ENG
Table 1.1.2-1
R Fall
R(max)
m
C(max)
t
30 35 40 44 50 54 60 64 70 74
IV 20.2 12.0 7.50 6.21 5.05 4.48 3.80 3.43 2.98 2.72 2.39 2.20
74
II 37.3 6.0 6.00 6.00 5.55 4.98 4.30 3.93 3.48 3.22 2.89 2.70
IV 20.7 12.0 7.72 6.40 5.25 4.66 3.96 3.58 3.11 2.84 2.50
70
II 38.5 6.0 6.00 6.00 5.75 5.16 4.46 4.08 3.61 3.34 3.00
IV 22.3 12.0 8.43 7.03 5.83 5.19 4.42 4.01 3.49 3.20
64
II 41.9 6.0 6.00 6.00 6.00 5.69 4.92 4.51 3.99 3.70
IV 22.1 12.0 8.37 6.98 5.84 5.20 4.43 4.02 3.50
60
II 42.0 6.0 6.00 6.00 6.00 5.70 4.93 4.52 4.00
IV 22.3 12.0 8.46 7.06 5.95 5.30 4.02 4.10
54
II 42.7 6.0 6.00 6.00 6.00 5.80 5.02 4.60
IV 23.2 12.0 8.88 7.43 6.26 5.62 4.80
50
II 44.8 6.0 6.00 6.00 6.00 6.00 5.30
IV 25.9 12.0 10.10 8.50 7.17 6.50
44
II 44.0 6.0 6.00 6.00 6.00 6.00
IV 26.4 12.0 10.35 8.74 7.50
40
II 40.0 6.0 6.00 6.00 6.00
IV 26.4 12.0 10.35 8.80
35
II 30.0 6.0 6.00 6.00
IV 26.4 12.0 10.35
30
II 30.0 6.0 6.00
 
 
 W
 P
 P

W
      


P
! !
