Reliable STT293 - Reeving (See 1.5.1-1); From Dual Reeving to Single Reeving

STT293 CONCISE TOWER CRANE MANUAL
-44- EURC1.0ENG
1.5. REEVING (SEE 1.5.1-1)
1.5.1. FROM DUAL REEVING TO SINGLE REEVING
- Bring the trolley against the jib foot and fasten it.
- Lower the hoist hook down the ground (vertical position).
- Remove the connecting pin (8), connecting arm (5) and single hook
block (4).
- Reinstall the connecting pin (8) on the single hook block and secure it
with cotter pins.

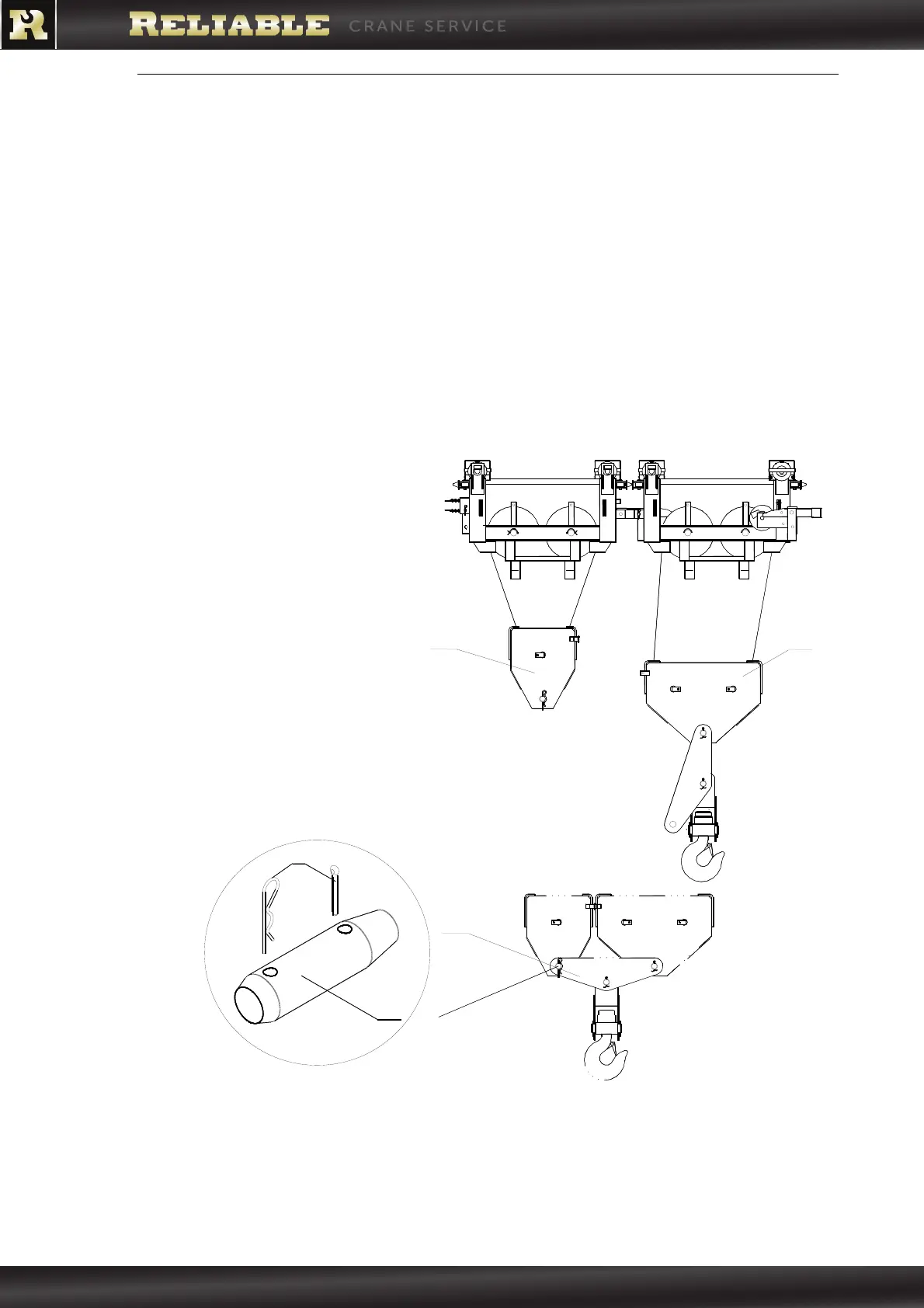

Fig. 1.5.1-1




! !
