STT293 CONCISE TOWER CRANE MANUAL
-37- EURC1.0ENG
1.3.4. DIMENSIONAL FEATURES OF THE FOUNDATION ANCHORS
The foundation anchors are placed symmetrically in the foundation block and
are to form a 2-by-2 m square, based on the dimensions of the mast to be
erected (see Fig. 1.3.4-1).
The distance between the topside of the mounting plate and the topside of the
foundation block must be 150 mm.

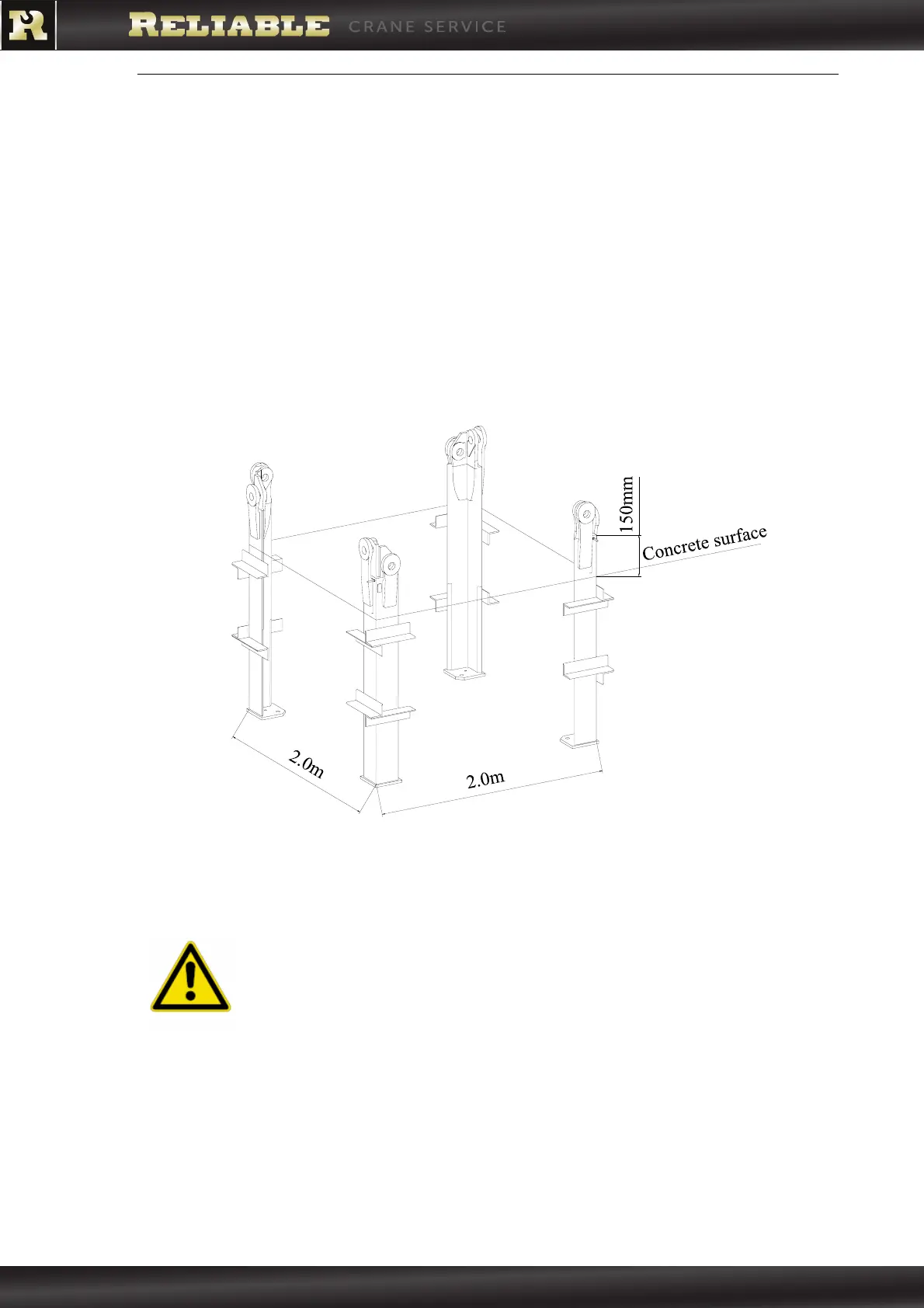

Fig. 1.3.4-1
ATTENTION: Cutting or reducing the reinforcement in the foundation is
prohibited.
