2.1. EXPLANATION OF THE SYMBOLS:
LFV (EX. 75LFV45)
2.2. COMPOSITION OF THE WINCH UNIT:

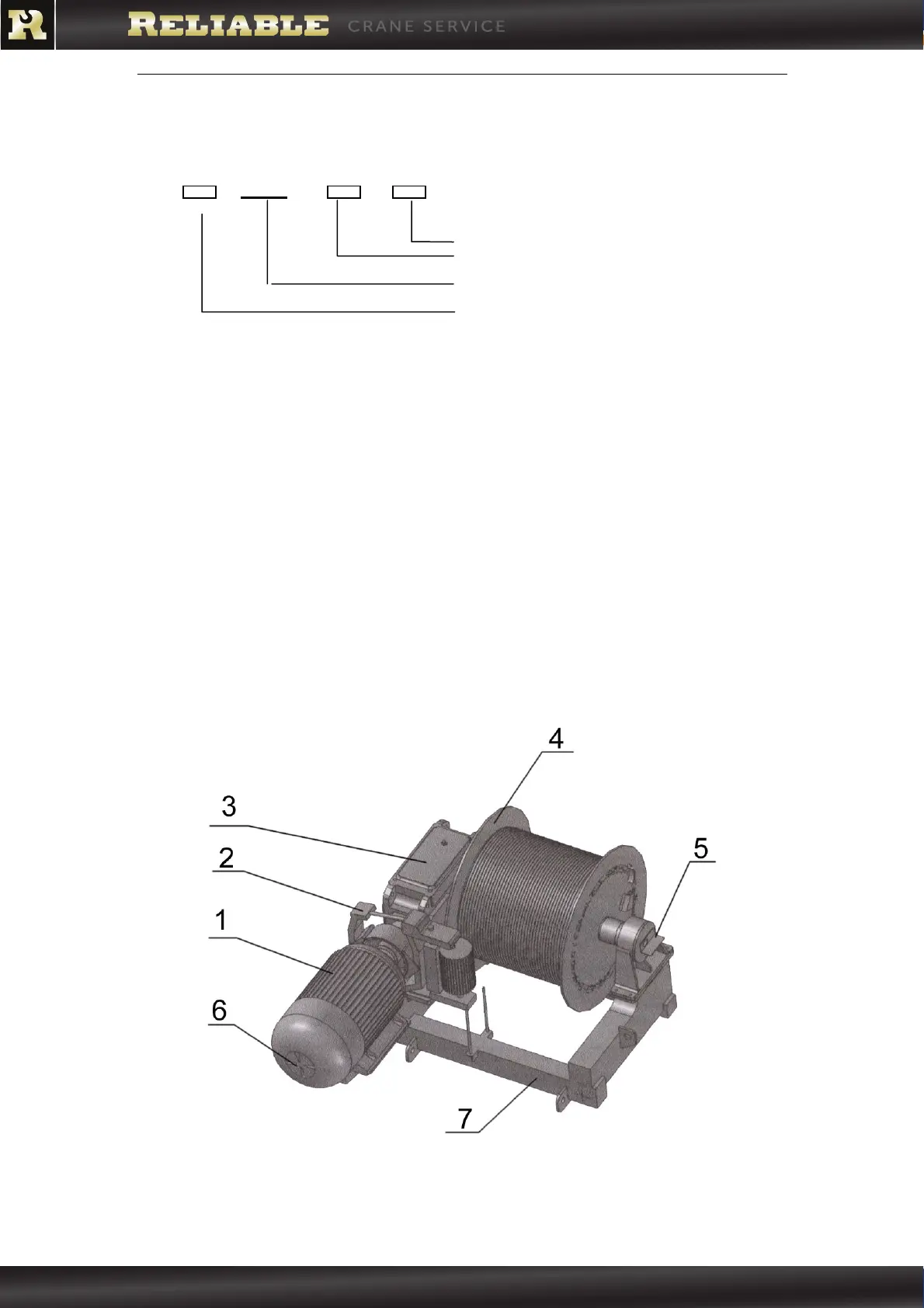

The LFV winch unit consists of the following components:
See Fig. 2.2-1.
- Frequency controlled motor (1)
- Brake mechanism (2)
- Gearbox (3)
- Hoisting drum (4)
- Limiter (5)
- Motor ventilator (6)
- Support base (7)
Fig. 2.2-1
Speed code, D for high speed motor
Load capacity of single wire
Frequency controlled
Motor power in kW
! !
