Tall/Medium Electric The following parts may be ordered through the store you purchased
the water heater from, or direct from the factory.
Be sure to provide all pertinent facts when you call or visit.
Selling prices will be furnished on request or parts will be
shipped at prevailing prices and you will be billed accordingly.
The model number of your Electric Water Heater will be found on the
model rating plate located above the lower access panel.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING
INFORMATION:
• MODEL NUMBER
• SERIAL NUMBER
• VOLTAGE AND ELEMENT WATTAGE
• PART DESCRIPTION
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.

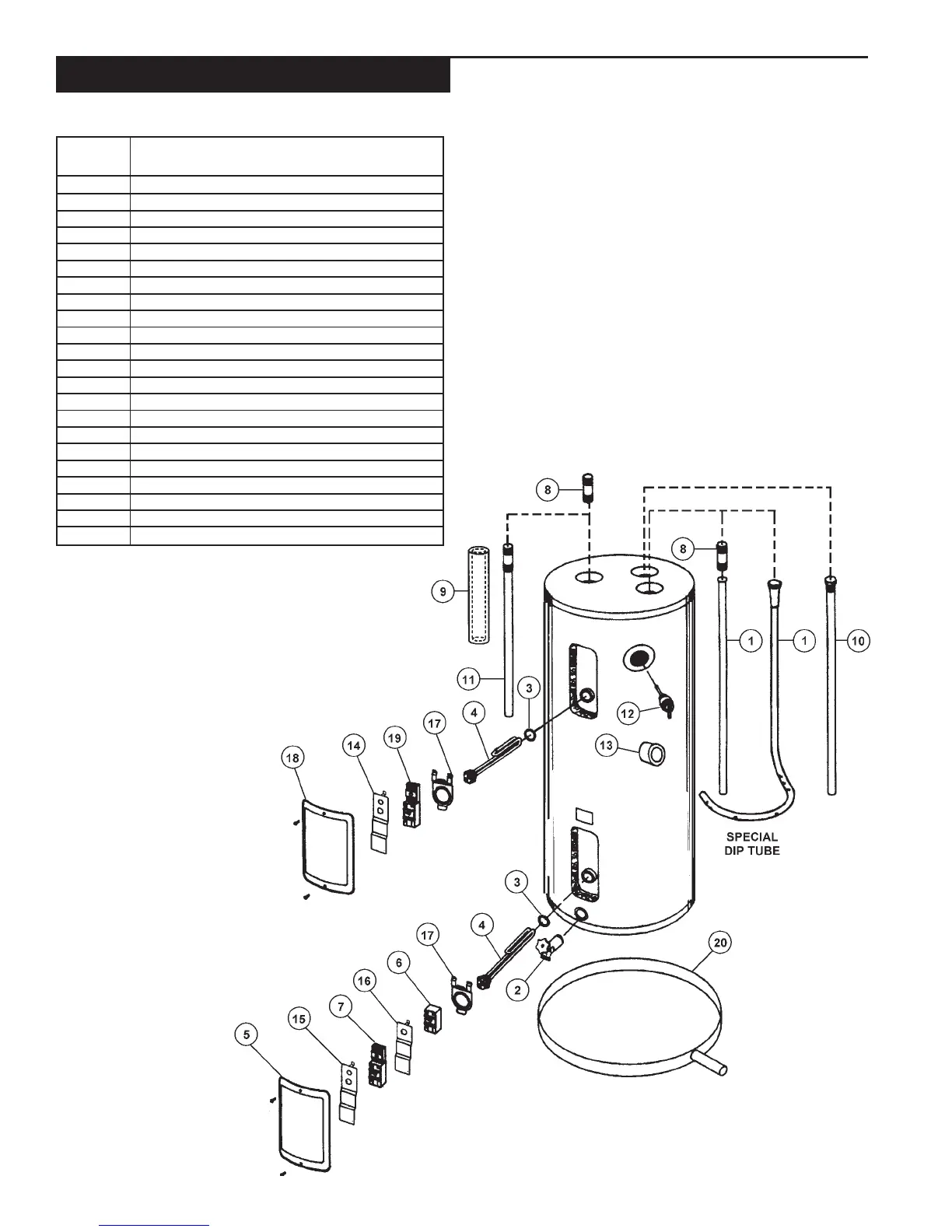

KEY
NO. PART DESCRIPTION
1 Dip Tube**
2 Drain Valve
3 Element Gasket
4 Element w/Gasket
5 Lower Access Panel
6 Lower Thermostat
7 Lower Thermostat w/High Limit
8 Nipple w/Heat Traps
9 Pipe Insulation
10 Primary Anode Rod
11 Secondary Anode Rod/Nipple w/Heat Traps*
12 T & P Valve
13 T&P Insulation
14 Terminal Cover (Double Element)
15 Terminal Cover
16 Terminal Cover
17 Thermostat Bracket (ea.)
18 Upper Access Panel
19 Upper Thermostat w/High Limit (Double element)
20 20” Dia. Base Pan w/Side Drain
20 22” Dia. Base Pan w/Side Drain
20 26” Dia. Base Pan w/Side Drain
* Standard equipment only on eight and ten year models.
** NOTE: Certain models are factory equipped with a special
dip tube (to retard a build-up of dissolved solids) and is
not a replaceable part.
To Next Page
