REMdevice BRICK 09K - Page 17

Installation, start up and operating manual – version 5.3 Gen.10

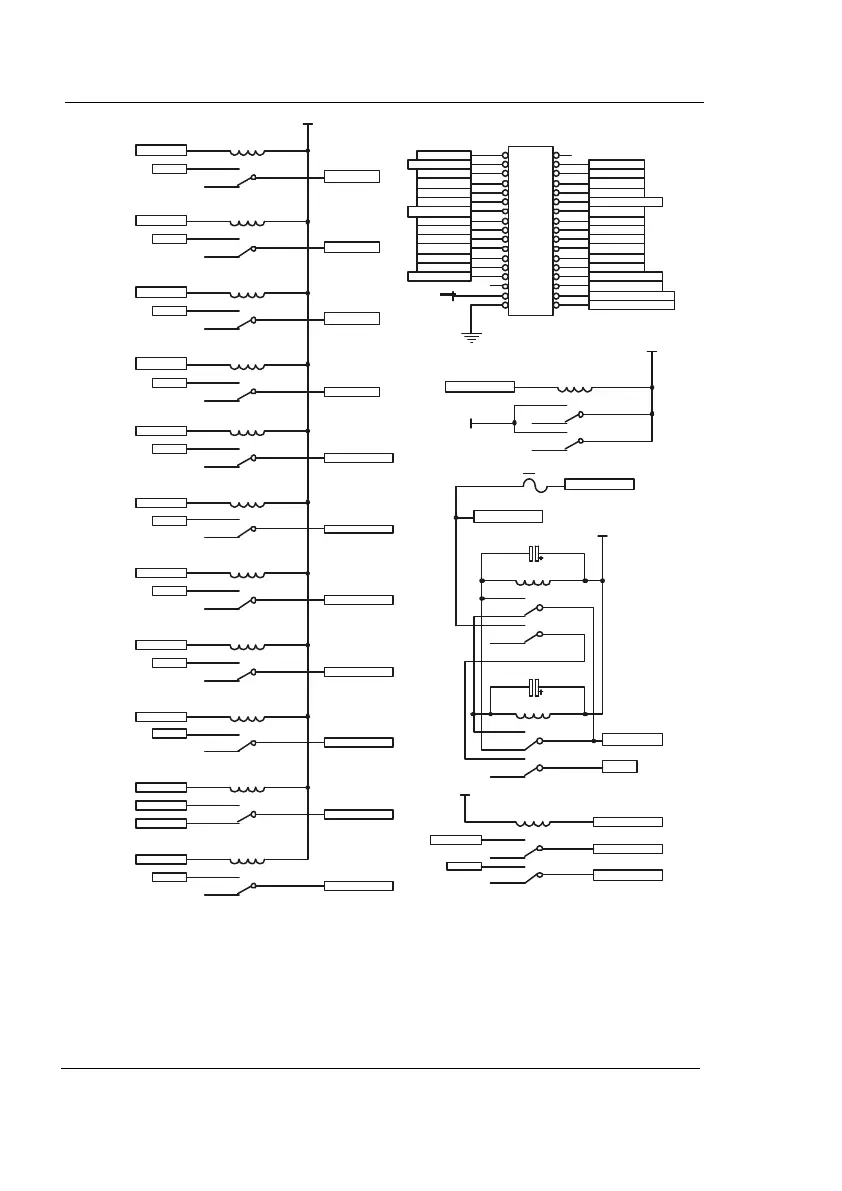

Radio control BRICK and PAIL
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
JP2
Connettore Decodifica e Ricezione
MARCIA-OUT
RG3-OUT RG2-OUT
RG1-OUT RG0-OUT
RE0-OUT
ARRESTO/S
RF6-OUT
RF0-OUT
RF2-OUT
RF1-OUT
RF3-OUT
RF4-OUT RF5-OUT
RE2-OUT RE3-OUT
RE4-OUT RE5-OUT
RE6-OUT RE7-OUT
RE1-OUT
IN1 Power Supply
O1 Power Supply
ALARM-OUT
RB0-OUT
RB25-OUT RB3-OUT
LAMPEG
2
1
4
5
3
7
8
6
RL3
RELAYD
21
4
5
3
7
8
6
RL1
Alarm
25
1
3
4
RL18
RELAYS
25
1
3
4
RL22
RELAYS
25
1
3
4
RL23
RELAYS
25
1
3
4
RL27
RELAYS
25
1
3
4
RL16
RELAYS
25
1
3
4
RL19
RELAYS
25
1
3
4
RL21
RELAYS
25
1
3
4
RL24
RELAYS
25
1
3
4
RL25
RELAYS
25
1
3
4
RL26
RELAYS
25
1
3
4
RL17
RELAYS
+12
ALARM-OUT
+12B
+12B
MARCIA-OUT
MARC
MARC COM
CLAX
CLAX COM
RF1-OUT
PR16
PR16 COM
RF2-OUT
PR17
PR17 COM
RF3-OUT
PR18
PR18 COM
RF4-OUT
PR19
PR19 COM
RG0-OUT
PR21
PR21 COM
RG1-OUT
PR22
PR22 COM
RG2-OUT
PR23
PR23 COM
RG3-OUT
PR24
PR24 COM
RF5-OUT
PR25
PR25 COM
RF6-OUT
PR26 NA
PR26 COM
RB0-OUT
PR27
PR27 COM
PR26 NC
2
1
4
5
3
7
8
6
RL2
STOP
+12B
ARRESTO/S
STOP
21
4
5
3
7
8
6
RL28
STOP
C2
100uF 16V
C3
100uF 16V
+12B
4A 250V
STOP-COM
STOP-FUSE
STOP-COM
STOP-FUSE
NOTA : negli schemi sopra sono indicati tutti i comandi (PR) possibili
ATTENZIONE : nel radiocomando sono disponibili solamente i comandi (PR) richiesti
NOTE: all possible commands (PR) are shown on the above diagrams
WARNING: only the requested commands (PR) are available on the radio control
REMdevice
®
- ITALY 17
