WORKING PRINCIPLES
Description of telegram link
The fixed-length telegram is composed of 64 bit:
of which 6 bit implement a protection algorithm that guarantees a
Hamming distance of 4 with probability of a missing an error of less
than 10
-8
(less than 1 in 100.000.000)
32 bit are used for command codes
the remaining 8 bit are calculated as a checksum on the previous 56 bit
The 24 bit for linkage of the transmitter with the receiver has a code that
is set by the manufacturer, each radio control unit has its own unique
code.
START
STOP
1 2

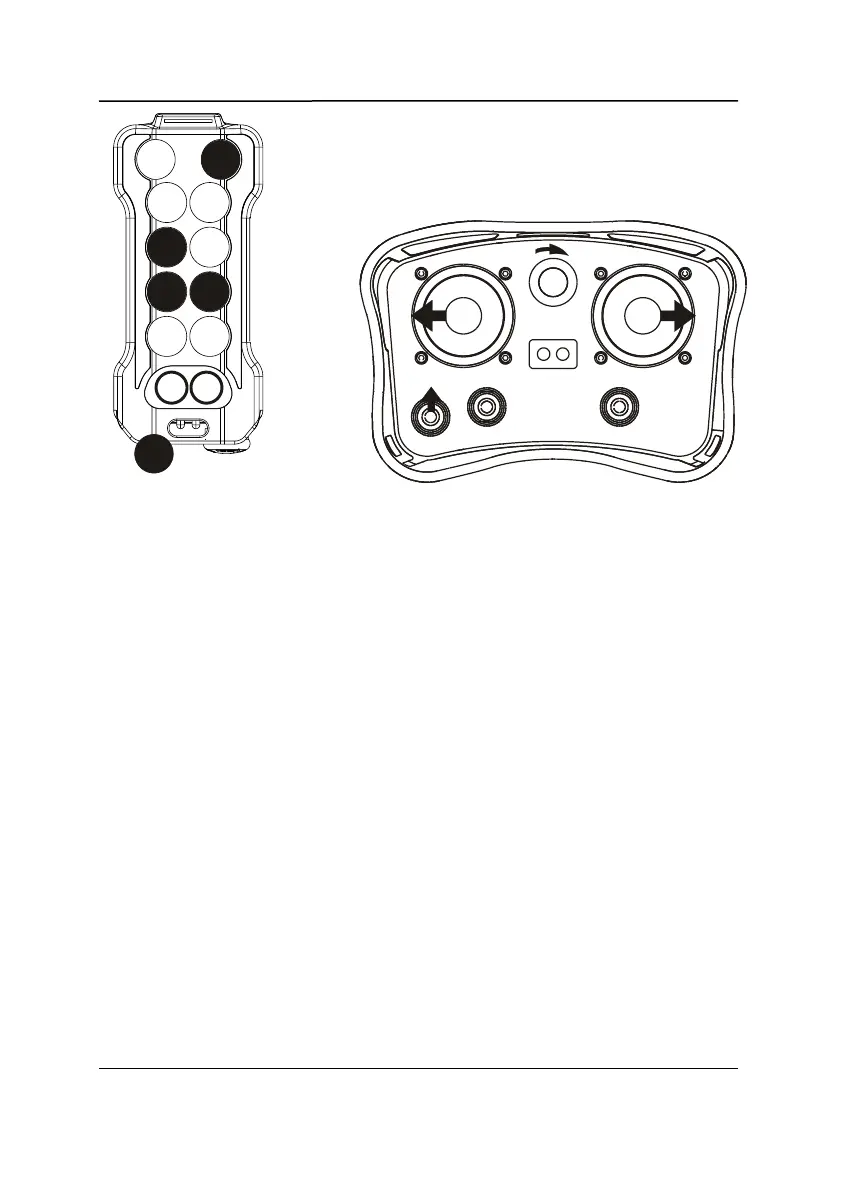

Figure 18
