REMdevice BRICK 09K - CHANGING THE FUNCTIONS; Transmitter Function Settings; Receiver Function Settings

Installation, start up and operating manual – version 5.3 Gen.10
Radio control BRICK and PAIL
CHANGING THE FUNCTIONS
Locate the FUNCTION microswitches by opening the transmitter unit and
receiver as described in the paragraph concerning CHANGE OF
FREQUENCY.
On the transmitter unit
Microswitch 1: RESERVED/DO NOT USE
Microswitch 2: AUTOMATIC SWITCH OFF
When in the ON position the transmitter unit WILL
NOT automatically switch itself off after 4 minutes.
On the receiver unit
Microswitch
OPERATION
1
2
OFF
OFF
No preset
ON OFF
BRICK: second and third speed self-held.
PR15 is self-held by PR9 or PR10, PR16 is self-
held by
PR15.
OFF ON
BRICK: third and fourth speed self-held.
PR5 and PR6 are self-held by PR11.
PR25 and PR27 are self-held by PR17.
PR26 and PR14 are self-held by PR23.
ON ON
pressing the buttons on the bottom row of the BRICK
keypad (normally reserved for shifting
) or activating the
shifting commands on the PAIL transmitter unit, will inhibit
all the other commands (lifting, rolling, rotating).
NOTE: the radio control unit is supplied with all the FUNCTION
microswitches in the OFF position (factory setting).

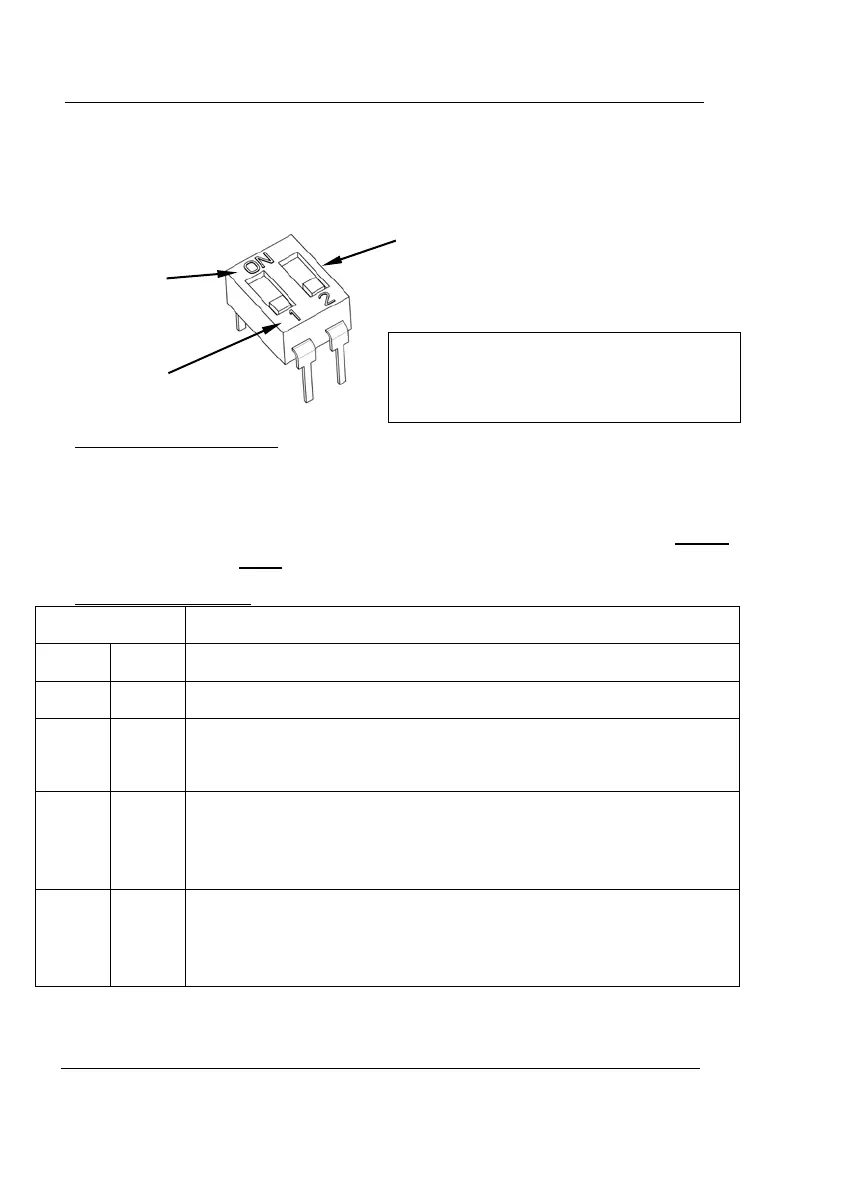

FUNCTION CHANGE
MICROSWITCHES
ON POSTION
OFF
POSITION
PAY CAREFUL ATTENTION TO THE
POSITIONING OF THE MICROSWITCHES:
THE REFERENCE IS THE WORD “ON”.
REMdevice
®
- ITALY 29
