17
white
white
brown
orange
black
blue

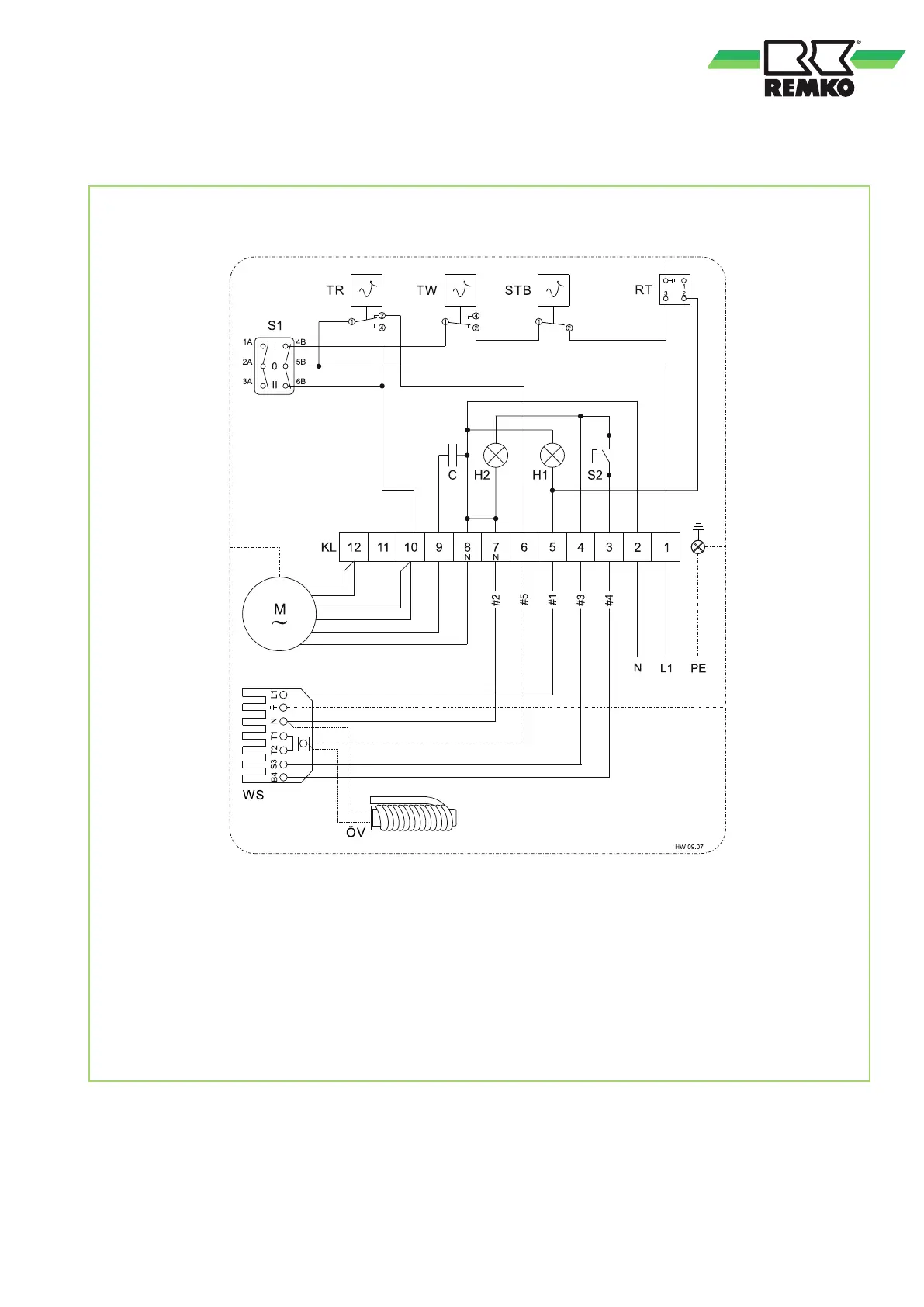

Electrical wiring diagram
Multiflex oil pre-heating
Optional: For CLK 30/50 and 70.
Series: With CLK 120/150 with oil burner
fitted ex works.
Legend:
C
= Start-up capacitor
H1 = Operating lamp (green)
H2 = External burner fault lamp (red)
KL = Terminal block
M = Fan motor
RT = Thermostat socket
S1 = Operating switch
S2 = Reset button (burner)
STB = Safety temperature limiter
TR = Temperature controller
TW = Temperature monitoring device
WS = Burner plug, 7-pin
(only fitted with factory burner delivery)
ÖV = Multiflex oil pre-heating
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.
