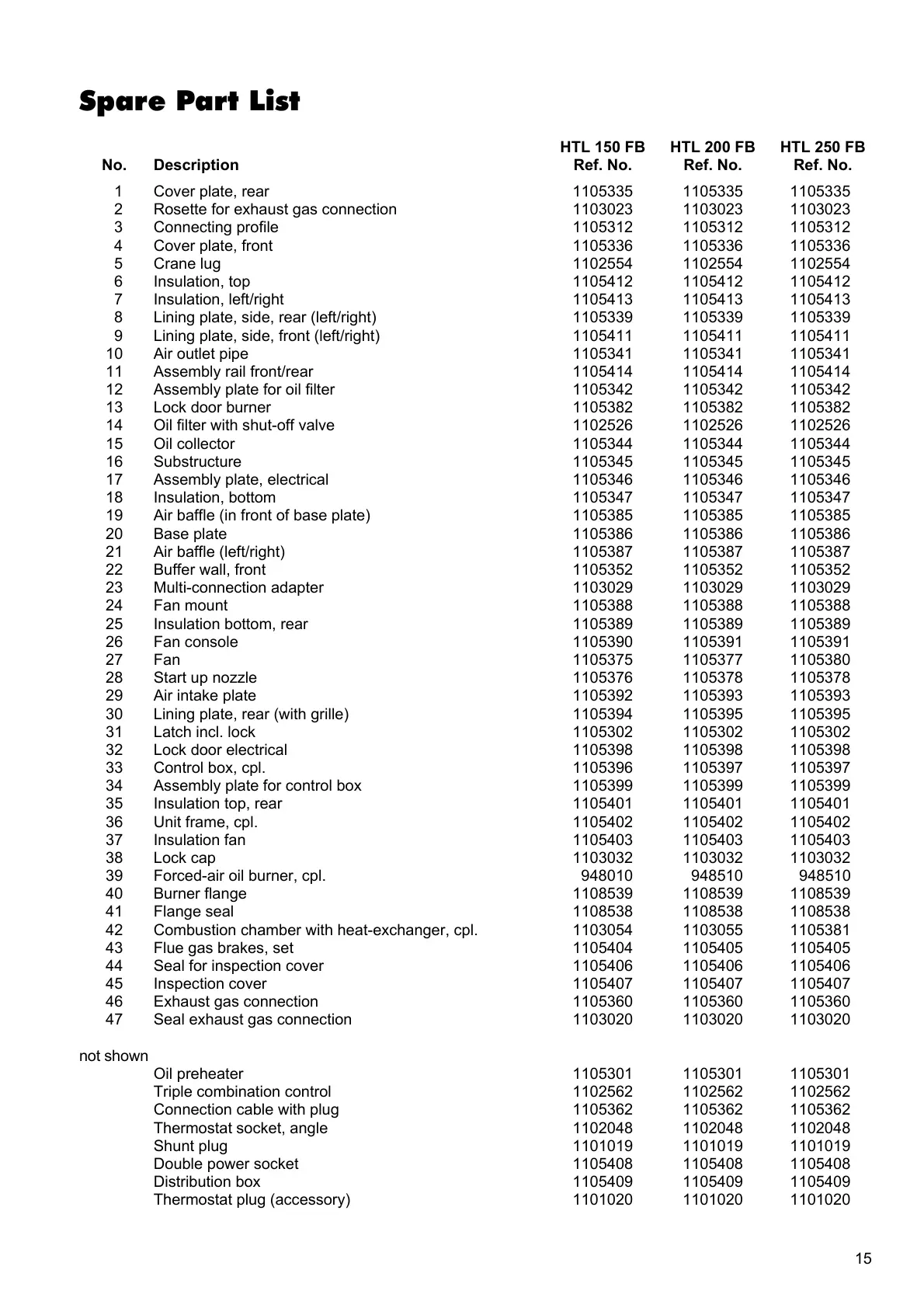

REMKO HTL 150 FB - Spare Part List

15
No. Description
HTL 150 FB
Ref. No.
HTL 200 FB
Ref. No.
HTL 250 FB
Ref. No.
1 Cover plate, rear 1105335 1105335 1105335
2 Rosette for exhaust gas connection 1103023 1103023 1103023
3 Connecting profile 1105312 1105312 1105312
4 Cover plate, front 1105336 1105336 1105336
5 Crane lug 1102554 1102554 1102554
6 Insulation, top 1105412 1105412 1105412
7 Insulation, left/right 1105413 1105413 1105413
8 Lining plate, side, rear (left/right) 1105339 1105339 1105339
9 Lining plate, side, front (left/right) 1105411 1105411 1105411
10 Air outlet pipe 1105341 1105341 1105341
11 Assembly rail front/rear 1105414 1105414 1105414
12 Assembly plate for oil filter 1105342 1105342 1105342
13 Lock door burner 1105382 1105382 1105382
14 Oil filter with shut-off valve 1102526 1102526 1102526
15 Oil collector 1105344 1105344 1105344
16 Substructure 1105345 1105345 1105345
17 Assembly plate, electrical 1105346 1105346 1105346
18 Insulation, bottom 1105347 1105347 1105347
19 Air baffle (in front of base plate) 1105385 1105385 1105385
20 Base plate 1105386 1105386 1105386
21 Air baffle (left/right) 1105387 1105387 1105387
22 Buffer wall, front 1105352 1105352 1105352
23 Multi-connection adapter 1103029 1103029 1103029
24 Fan mount 1105388 1105388 1105388
25 Insulation bottom, rear 1105389 1105389 1105389
26 Fan console 1105390 1105391 1105391
27 Fan 1105375 1105377 1105380
28 Start up nozzle 1105376 1105378 1105378
29 Air intake plate 1105392 1105393 1105393
30 Lining plate, rear (with grille) 1105394 1105395 1105395
31 Latch incl. lock 1105302 1105302 1105302
32 Lock door electrical 1105398 1105398 1105398
33 Control box, cpl. 1105396 1105397 1105397
34 Assembly plate for control box 1105399 1105399 1105399
35 Insulation top, rear 1105401 1105401 1105401
36 Unit frame, cpl. 1105402 1105402 1105402
37 Insulation fan 1105403 1105403 1105403
38 Lock cap 1103032 1103032 1103032
39 Forced-air oil burner, cpl. 948010 948510 948510
40 Burner flange 1108539 1108539 1108539
41 Flange seal 1108538 1108538 1108538
42 Combustion chamber with heat-exchanger, cpl. 1103054 1103055 1105381
43 Flue gas brakes, set 1105404 1105405 1105405
44 Seal for inspection cover 1105406 1105406 1105406
45 Inspection cover 1105407 1105407 1105407
46 Exhaust gas connection 1105360 1105360 1105360
47 Seal exhaust gas connection 1103020 1103020 1103020
not shown
Oil preheater 1105301 1105301 1105301
Triple combination control 1102562 1102562 1102562
Connection cable with plug 1105362 1105362 1105362
Thermostat socket, angle 1102048 1102048 1102048
Shunt plug 1101019 1101019 1101019
Double power socket 1105408 1105408 1105408
Distribution box 1105409 1105409 1105409
Thermostat plug (accessory) 1101020 1101020 1101020
Spare Part List
