REMKO HTL 150 FB - Wiring Diagram HTL-FB; Technical Data

18
Technical Data
Model HTL 150 FB HTL 200 FB HTL 250 FB
Rated heat power max, kW 160 200 220
Rated heat output kW 148 184 203
Rated air output
1)
m³/h 11,180 12,950 13,860
Pressure (max. total) Pa 410 540 620
Fuel heating oil EL according to DIN 51603 or diesel
Fuel consumption max. kg/h 13.5 16.8 18.0
Oil nozzle USG 3.0 80°S 3.5 80°S 4.0 80°S
Pump pressure bar 14 16 14.5
Exhaust gas emissions min, % 8 8 9
Furnace resistance (in operating mode) Pa 65 110 135
Required chimney draught Pa 0 0 0
Electrical connection V/Hz 400/3N~ / 50 400/3N~ / 50 400/3N~ / 50
Power consumption (max, total unit) W 2,640 4,580 4,810
Rated current (max. total unit) A 6.1 9.3 9.8
Power consumption (max. fan) W 1,950 3,900 4,100
Rated current (max. fan) A 3.6 6.8 7.1
Power consumption (fuel pre-heating) W 300 300 300
Fuse protection (customer-installed) A 3 x 16 3 x 16 3 x 16
Temperature increase (∆
t
)
K 56 57 59
Sound pressure level L
pA
1m
2)
dB (A) 71 74 74
Air intake ø (air intake connection, accessory) mm 550 550 600
Air outlet ø mm 550 550 550
Exhaust gas connection ø mm 200 200 200
Length total mm 2,400 2,400 2,400
Width total mm 800 800 800
Height total mm 1,370 1,370 1,370
Weight (with forced-air oil burner) kg 460 480 505
1) (at ∆
t
45K / 1.2 kg/m³)
2) Noise measuring DIN 45635 - 01 - KL 3
F5 = Back-up fuse power socket
H4 = Malfunction light burner
M1 = Fan motor
RT = Room thermostat socket
SD = Double power socket in front
S2 = Burner reset
SK = Control box
TW = Temperature monitor
WS = Wieland plug to the burner
X3 = Terminal box front

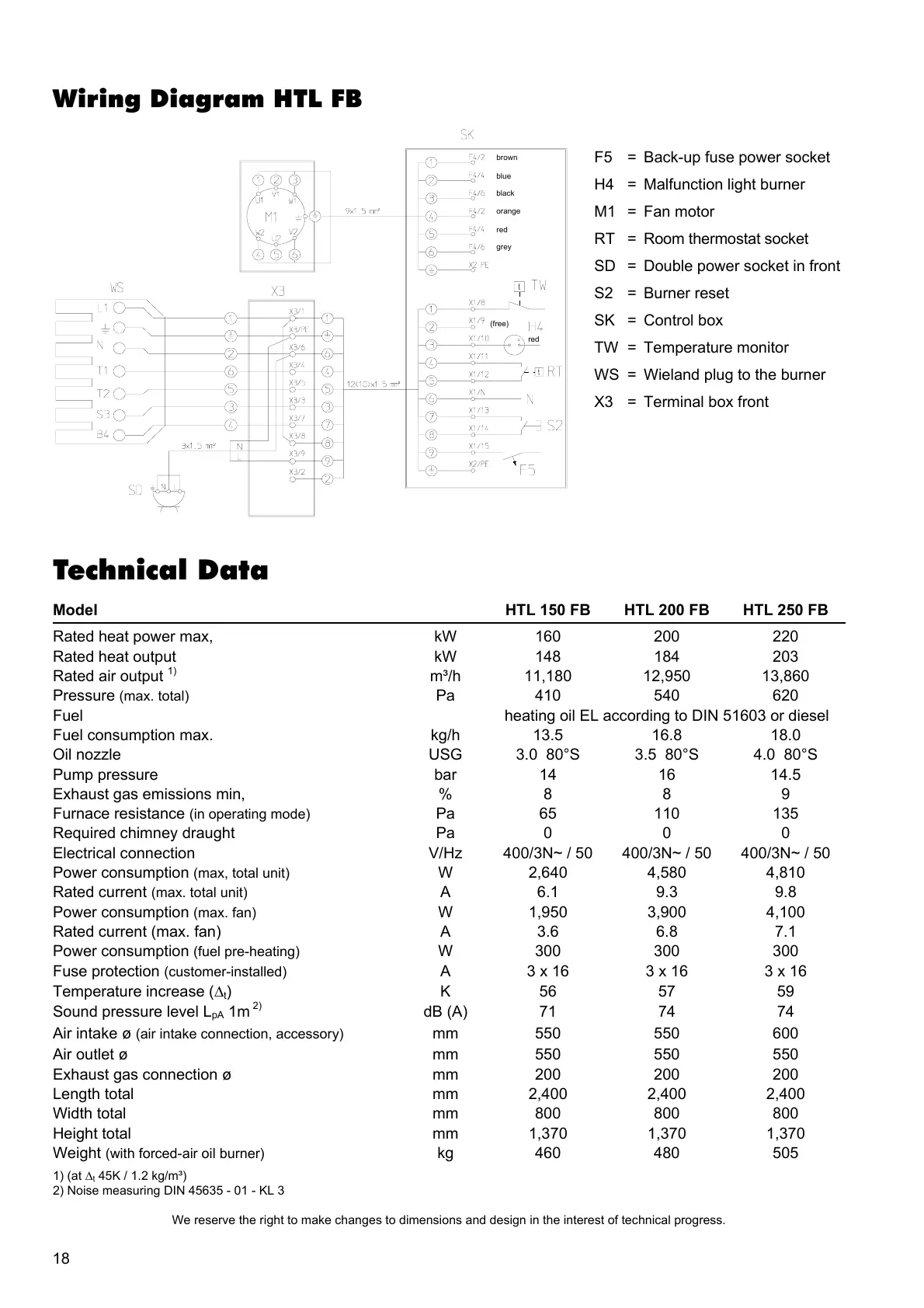

Wiring Diagram HTL FB
We reserve the right to make changes to dimensions and design in the interest of technical progress.
(free)
red
brown
blue
black
orange
red
grey
