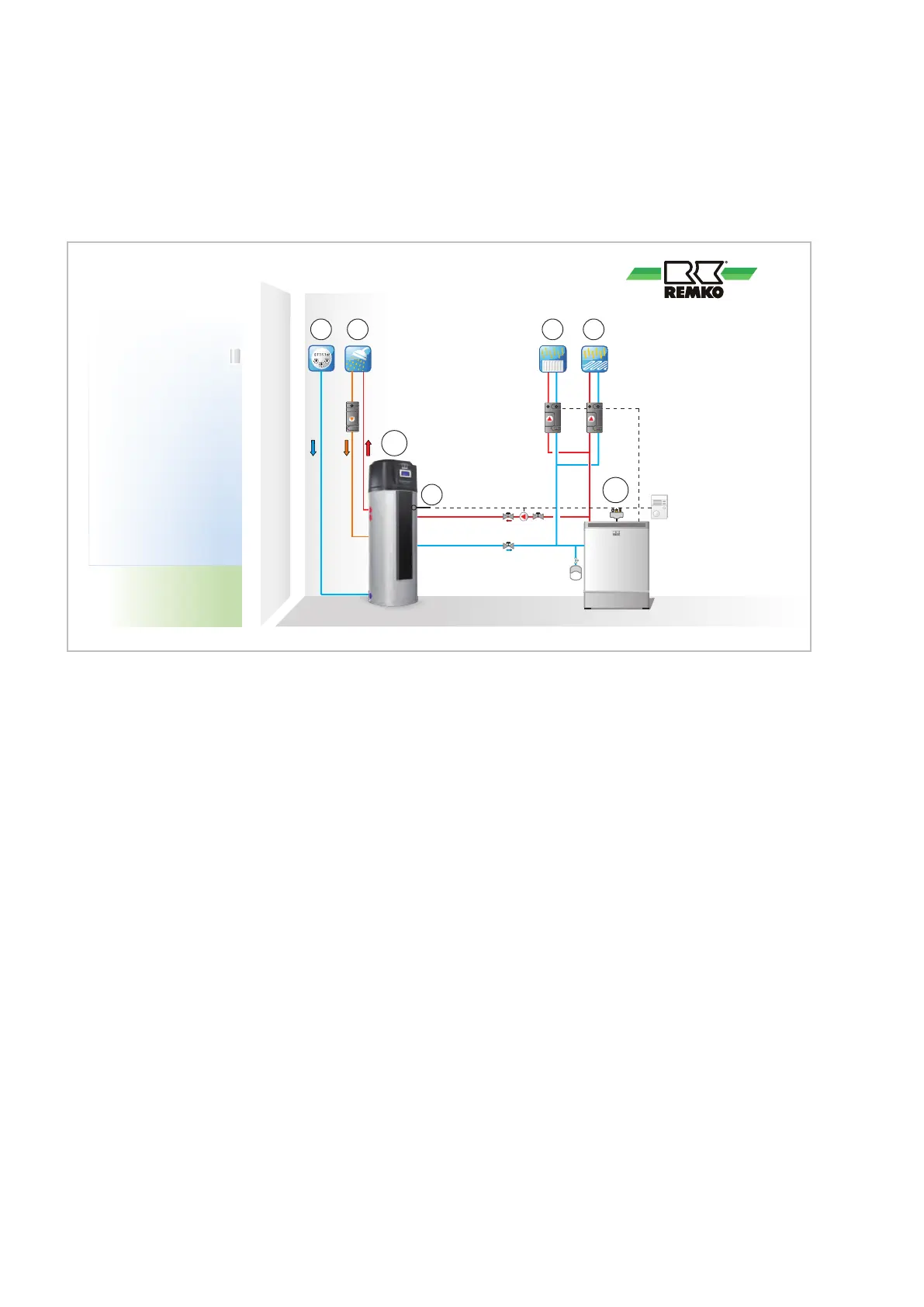

Hydraulic circuit diagram 1 for REMKO RBW heat pump
Functions: Heating and hot water
This hydraulic circuit diagram serves merely to assist in planning activities;
the customer-provided hydraulic system on site must be planned and laid out by the installer!
40°
A
1 2 43
B
5
Fig. 12: Example 1 - RBW hydraulic circuit diagram
A: RBW heat pump
B: Oil/gas boiler
1: Cold water
2: Hot water
3: Heating circuit 1 mixed
4: Heating circuit 2 mixed
5: Boiler probe (hot water probe)
REMKO RBW PV series
