Hydraulic circuit diagram 2 for REMKO RBW heat pump
Functions: Heating and hot water
This hydraulic circuit diagram serves merely to assist in planning activities;
the customer-provided hydraulic system on site must be planned and laid out by the installer!
S 08
40°
A
C
1 2 43 5
B
6
7

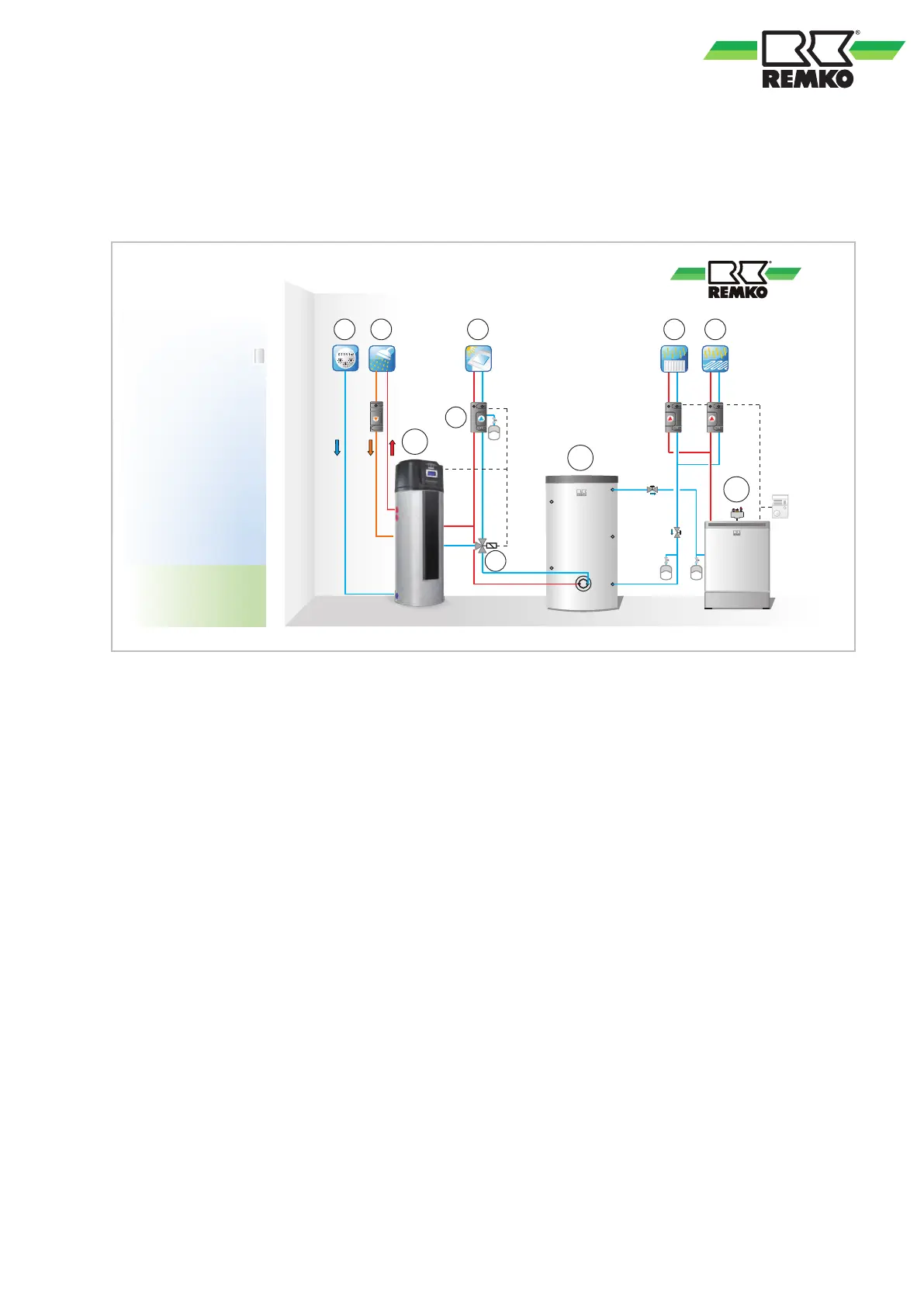

Fig. 13: Example 2 - RBW hydraulic circuit diagram
A: RBW heat pump
B: Storage tank
C: Oil/gas boiler
1: Cold water
2: Hot water
3: Solar
4: Heating circuit 1 mixed
5: Heating circuit 2 mixed
6: Solar pump
7: Solar changeover valve
