REMKO WKF Series User Manual


V
3 1425
-S24.2/S13.2
PT1000 / Vol. Imp.
VL / Vol. Wärmep.

1 2
-S06.2
PT1000
Vorlauf, 4. gem. Kreis

1 2
-S07.2
PT1000
Kältemittel

1 2
-S11.2
PT1000
Rücklauf, 3. gem. Kreis

1 2
-S12.2
PT1000
Vorlauf, 3. gem. Kreis
Potential Free Outputs
Sensor InputsSensor InputsSensor InputsSensor Inputs
Systemregler SMT I/O
In
A30
In
A31
In
A32
In
A33
In
A34
S20
+5V
GND
S40
S41
S21
+5V
GND
S42
S43
S22
+5V
GND
S44
S45
S23
+5V
GND
S46
S47
S24
+5V
GND
S48
S49
S01
GND
S02
GND
RJ45
S03
GND
S04
GND
S05
GND
S06
GND
S07
GND
S08
GND
S09
GND
S10
GND
S11
GND
S12
GND
S13
GND
S14
GND
S15
GND
S16
GND

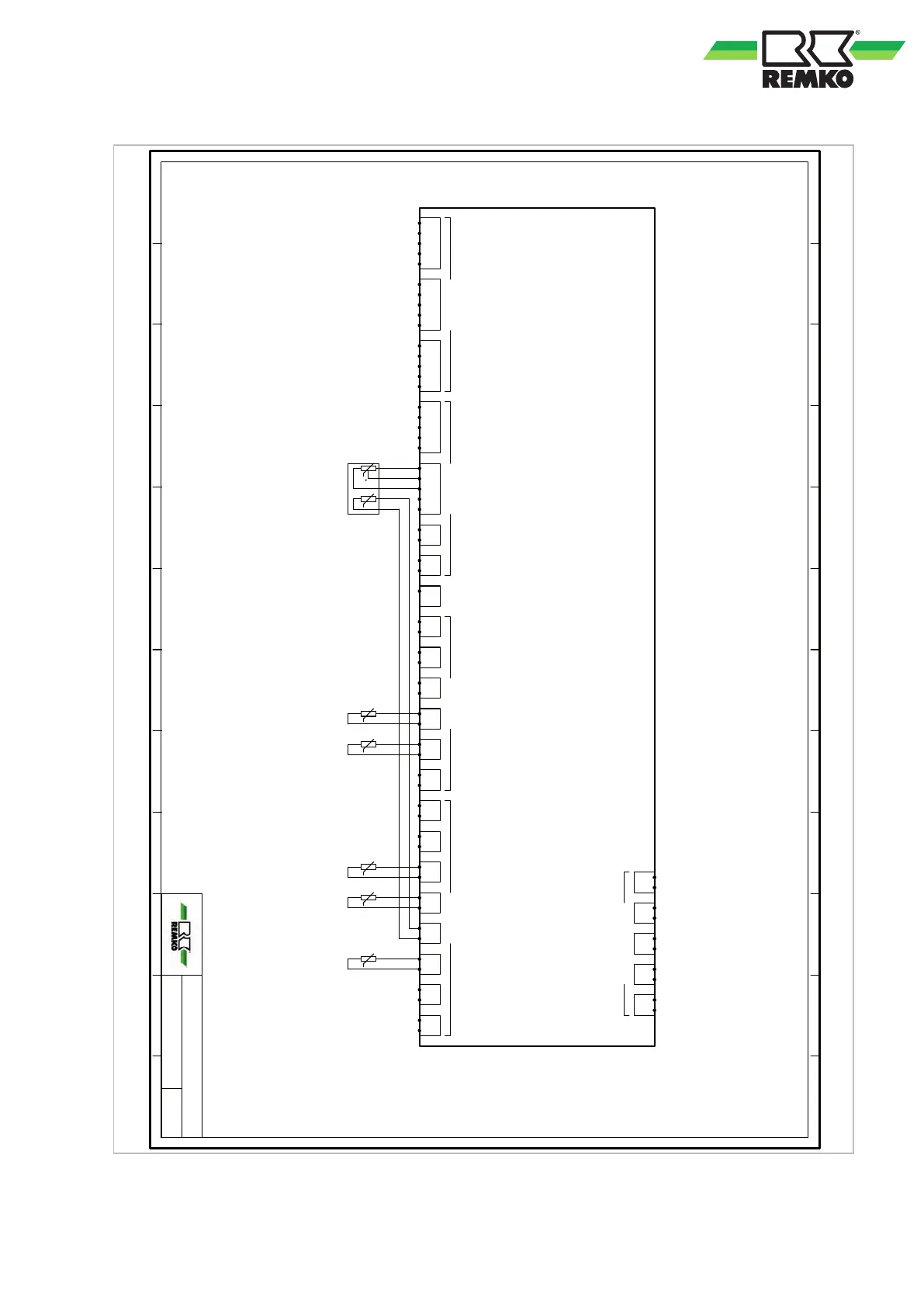

-SMT2.2 Systemregler (oben)

1 2
-S14.2
PT1000
Rücklauf, 4. gem. Kreis
0 1 2 3 4 5 6 7 8 9 10 11
5/6
WKF DUO 2021
0 1 2 3 4 5 6 7 8 9 10 11
03.03.2021
Projekt Titel:
PT1000 / Vol. Imp.
LF / Vol. Heat Pump
Project title:
Potential-Free Outputs
System controller (top)
System controller SMT I/O
PT1000
PT1000
Inlet, 4th mixed circuit
Refrigerant
PT1000
PT1000
Inlet, 3rd mixed circuit
Return ow, 4th mixed circuit
PT1000
Return ow, 3rd mixed circuit
43
