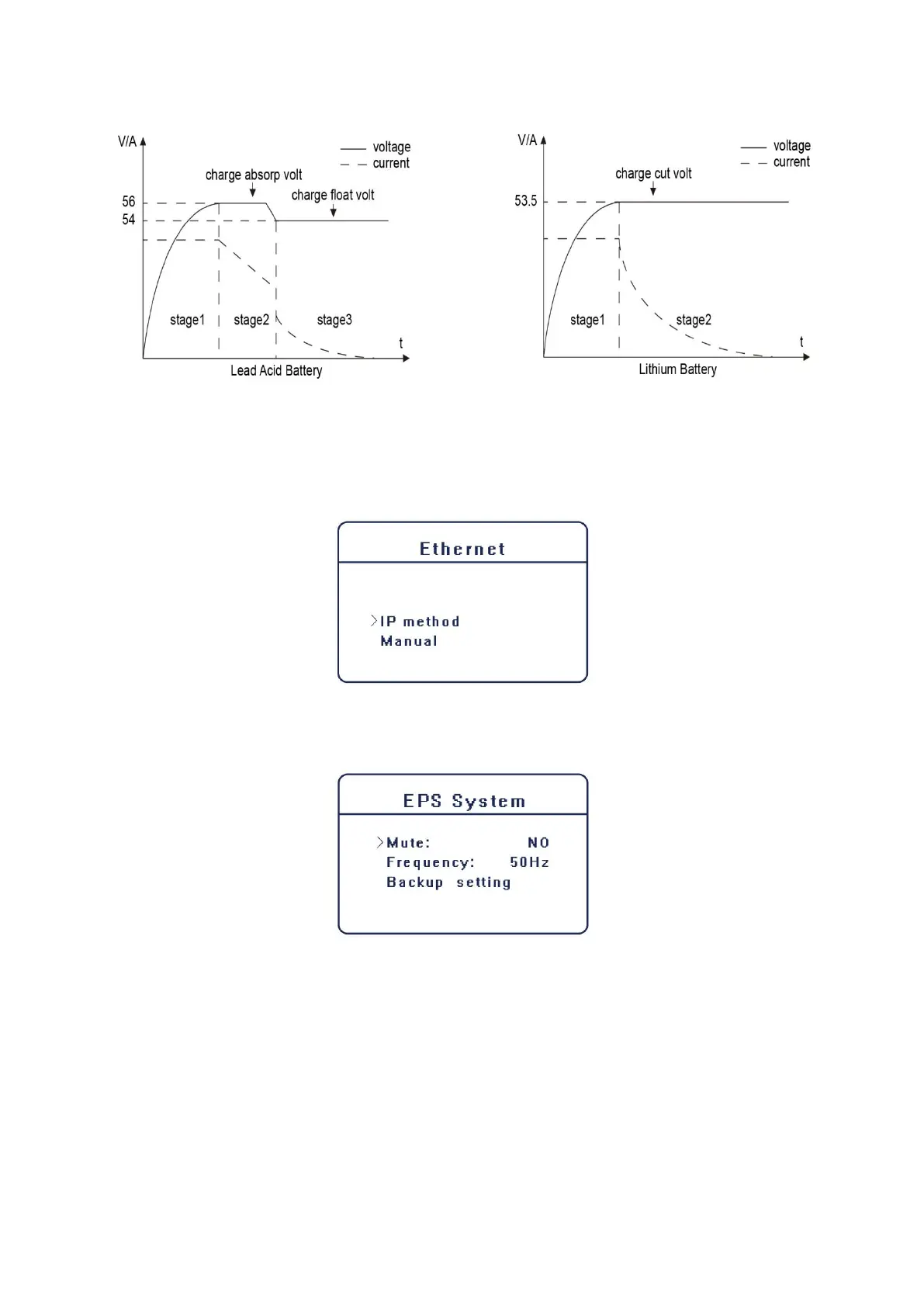

J) Ethernet
Users can set the information about Ethernet here, such as IP address, subnet mask number,
and default gateway number. Press up or down button to select and press “OK” to confirm.
K) EPS system
The ESC-Hybrid inverter can work in the EPS mode. Installer can set the EPS parameters here.
“Mute “means you can set the warning of system which has entered EPS mode. “No “means
there will be a buzzing and it is the default value. “Yes “means you choose to shut down the
warning function. Besides, if the buzzing is sharp, it means EPS output takes over loads.
“Frequency “here can be set 50Hz or 60Hz please based on correlative loads.
“Backup setting “here can be set “Battery backup discharge Volt”.End user can only set the
“Mute” and “Frequency” here.
