ENGINE AND PERIPHERALS

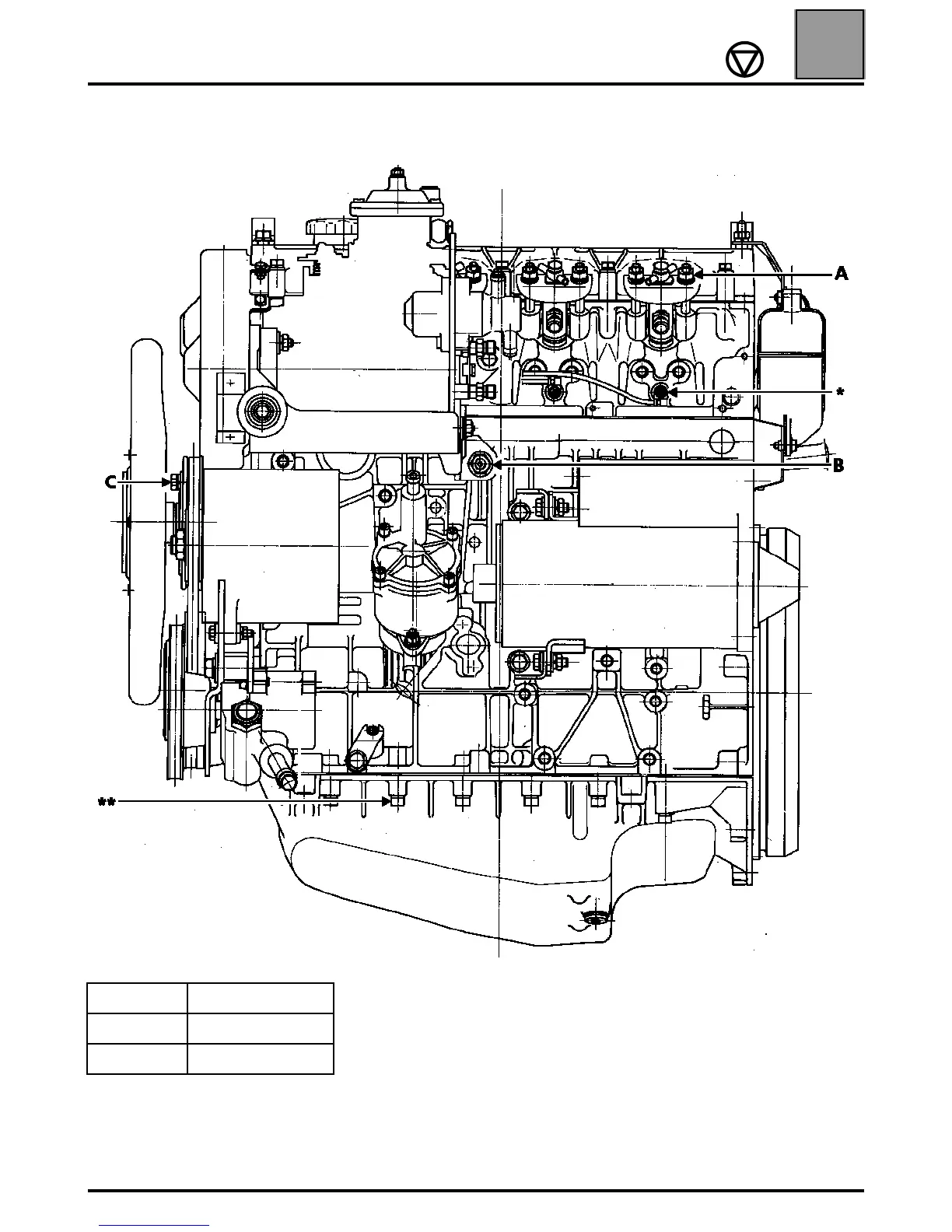

Tightening torques (in daNm)

10-8

CYLINDER BLOCK

* Preheating shunt nut connector: 0.25 daNm

** Aluminium sump : 1.4 to 1.7 daNm

Metal sump : 1.25 daNm

A 2

B 2

C 2.5
