ENGINE AND PERIPHERALS
Overhauling the engine
10
10-73

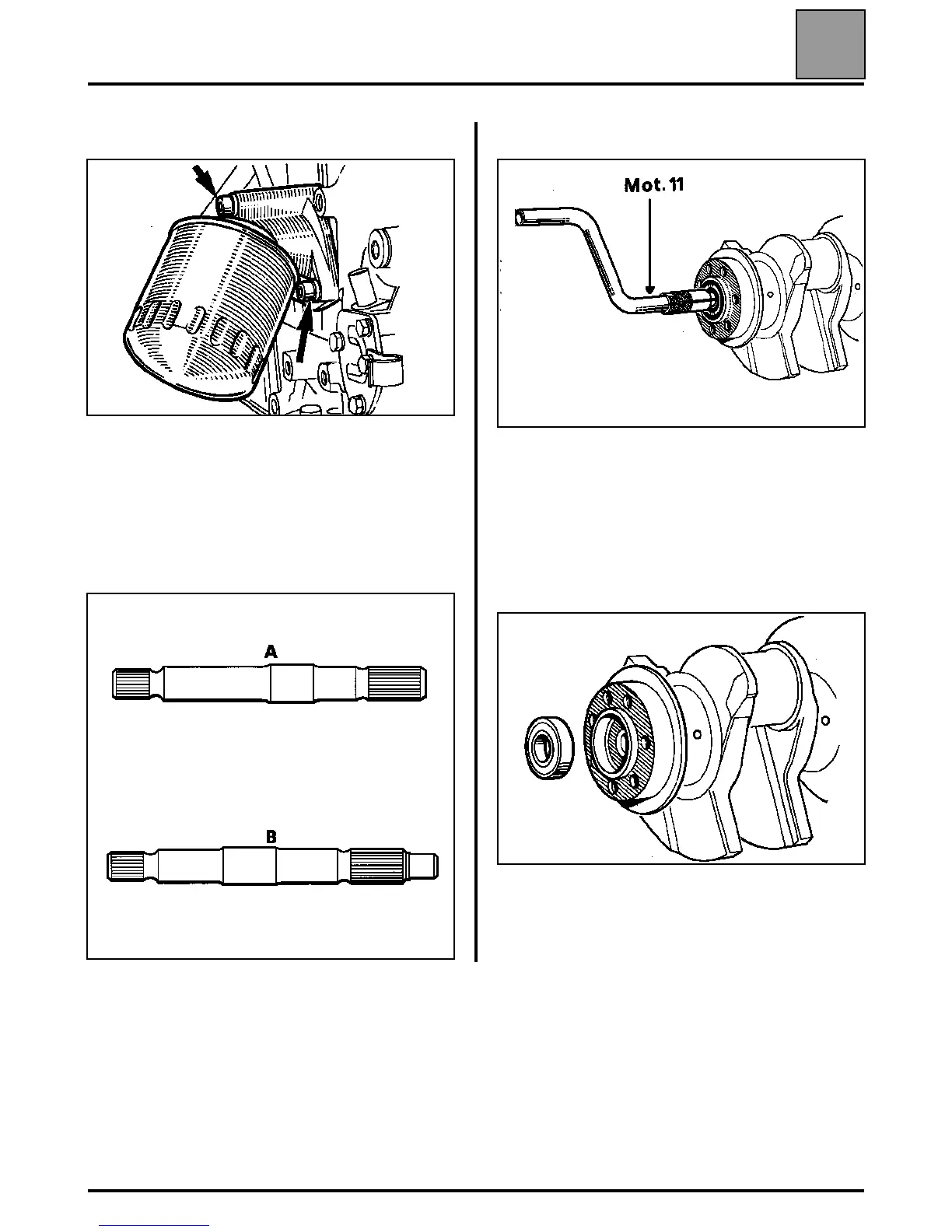

Remove the filter holder.
Replacing the bearing
NOTE: if the gearbox is fitted with a short shaft (A), it
does not need a bearing in the crankshaft.
If the gearbox is fitted with a long shaft (B) the
crankshaft must be fitted with a bearing.
Remove the bearing using tool Mot. 11.
Refitting the bearing
Cement the bearing with loctite FRENBLOC for
engines fitted with flywheel mounting bolts that have
no stop.
16547R
77443R
