ENGINE AND PERIPHERALS
Overhauling the engine
10
10-47
Adjusting the timing

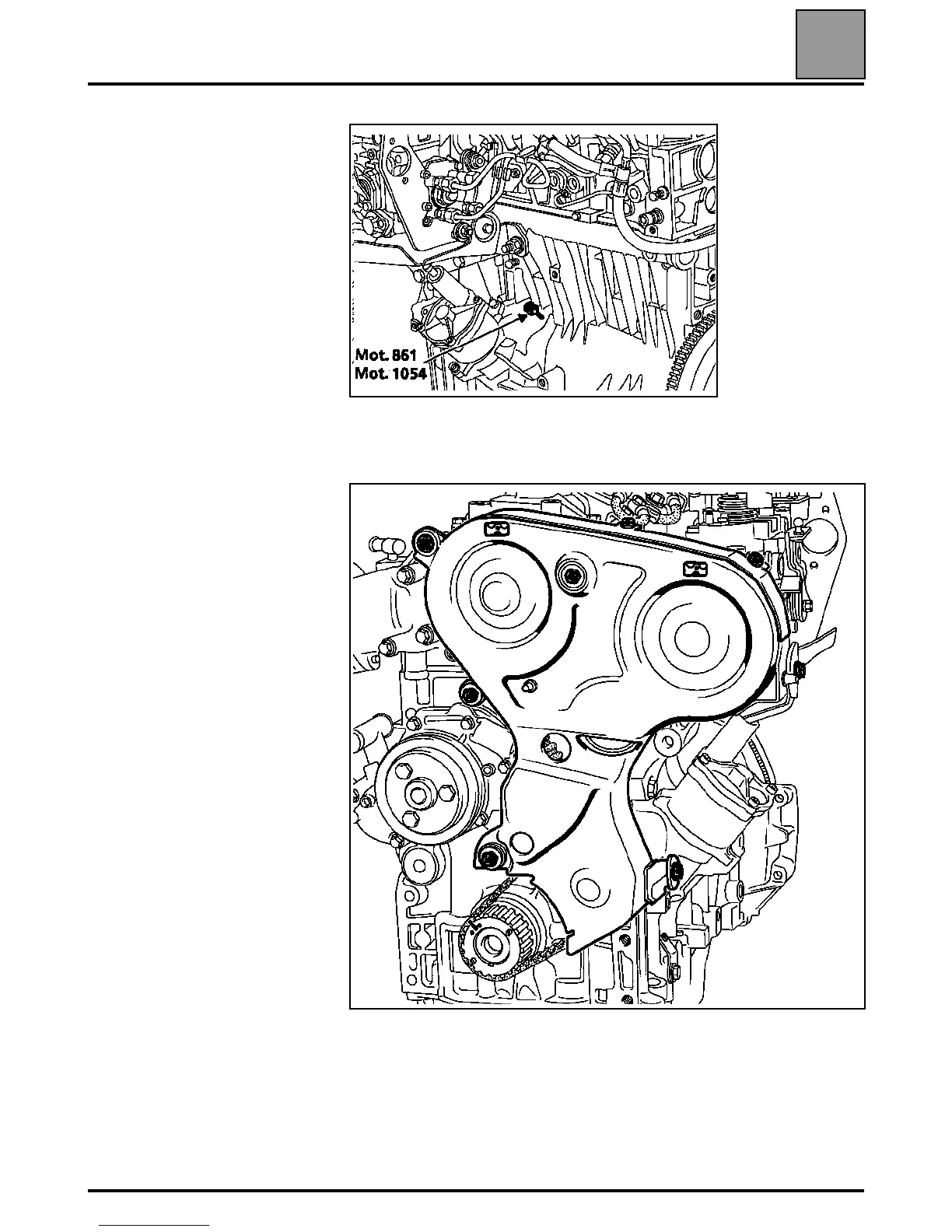

Fit the TDC setting rod on Mot. 861
or Mot. 1054, then turn the engine
(clockwise from the timing end) to
bring the camshaft sprocket and
injection pump marks in line with
the valve timing cover marks (start
to pull on the rod one half-tooth
before the marks are aligned), in
order to avoid dropping into a
balance hole.
