ENGINE AND PERIPHERALS
Overhauling the engine
10
10-48

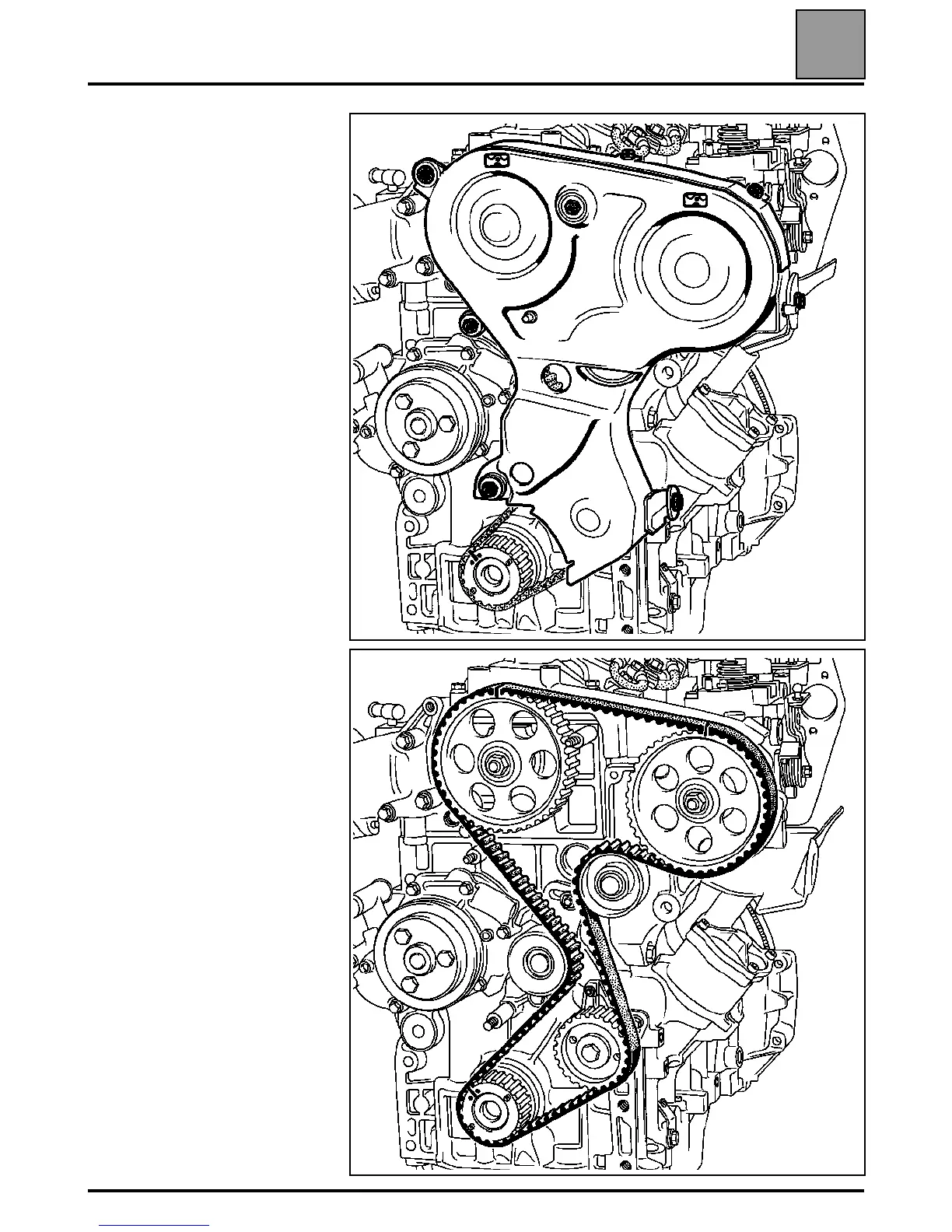

Check the timing on the camshaft
sprocket and injection pump
(marks on the valve timing cover
must be aligned with pulley marks).
Remove the timing cover.
Check the marks on the crankshaft
timing sprocket (see diagram).
Make a fixed mark on the cylinder
head cover and another on the
injection pump where they are
aligned with the pulley marks.
