ENGINE AND PERIPHERALS
Overhauling the engine
10
10-68

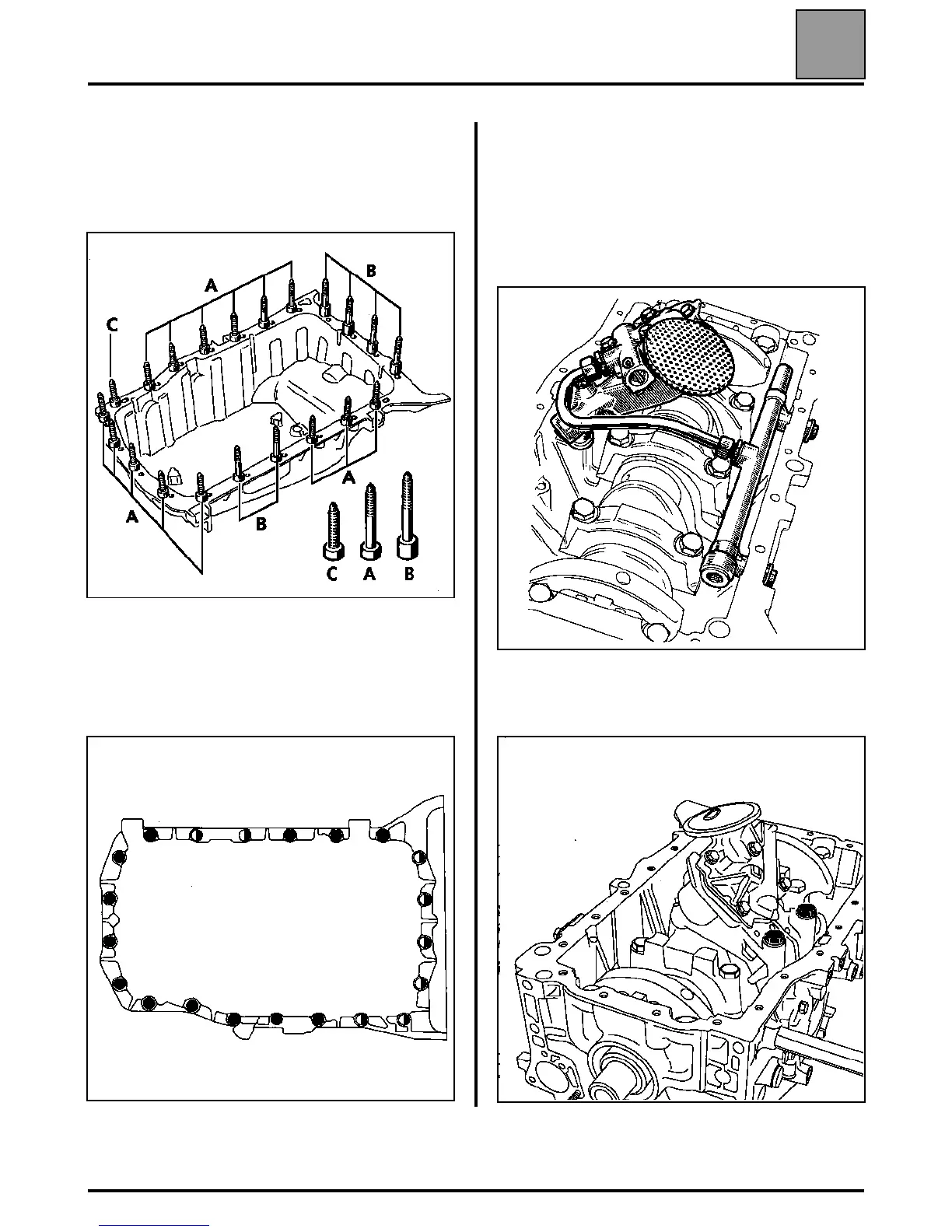

Remove the sump.
1
st
model
Three types of bolt marked A, B and C.
2
nd
model
Two types of bolt marked as follows:
– 13 bolts (M7 x 100-40),
– 8 bolts (M7 x 100-52).
Remove:
– the crankshaft seals,
– the oil filter using Mot. 1281-01.
Position the pistons at mid-stroke.
Disconnect the connection tube between the oil pump
and the lubricating gallery (if fitted).
Remove the oil pump.
90571R
16553S
16562S
