HUBCAPS - WHEELS

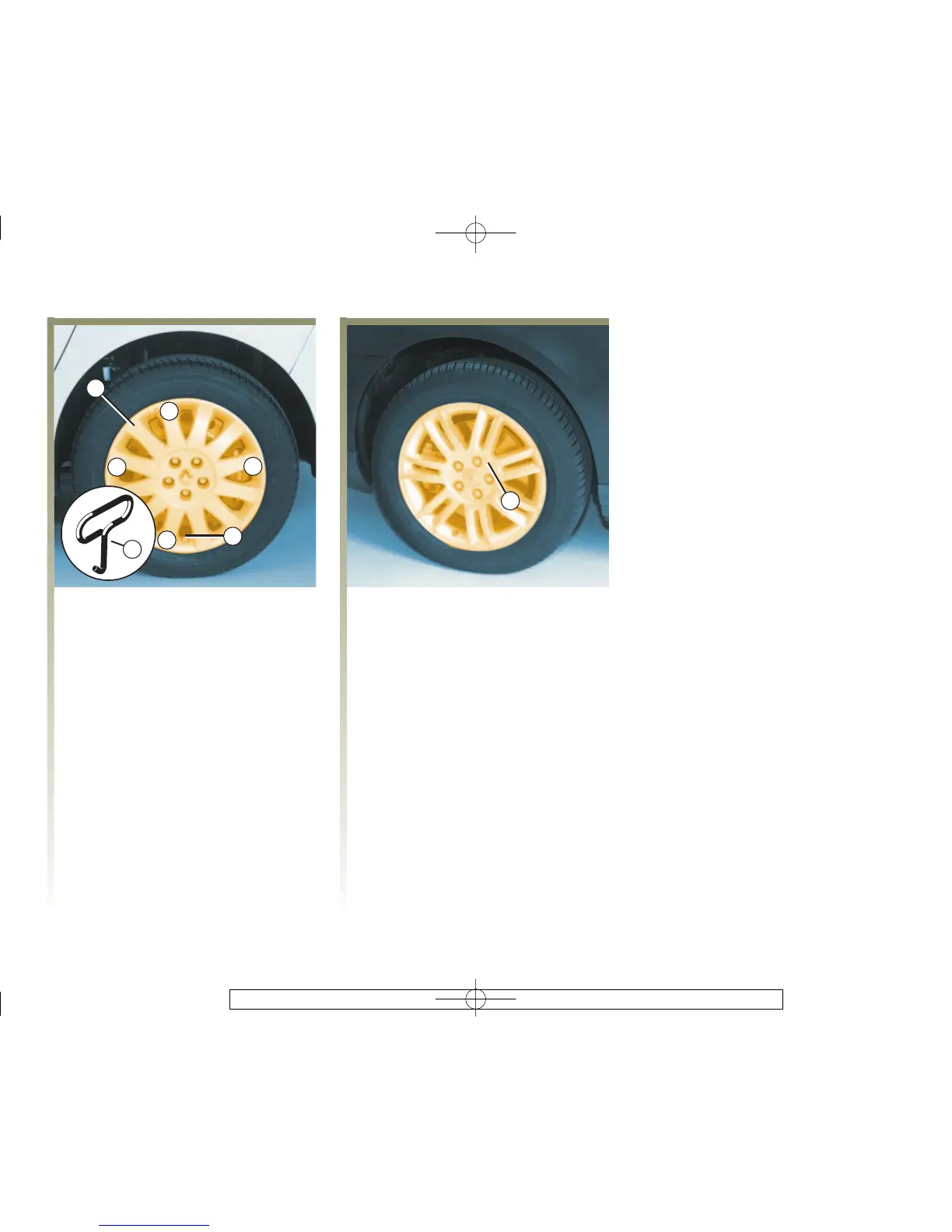

Wheel trim with exposed wheel
nuts 1
To remove it, use hub cap spanner 3
(from the tool kit), inserting the
hook into the recess next to the
valve.
To refit it, line it up with valve 2.
Push in the retaining hooks
beginning with valve side A then B
and C and finish with the side
opposite the valve D.
Wheel with exposed bolts 4
Remove the nuts and lift off the
wheel.
