E2 Lite Setup
R20UT3240EJ0300 Rev.3.00 Page 21 of 36
May.15.20
(2) A connector to the user-system interface cable must be installed on the user system. Table 2.1 shows the
recommended connector for the emulator.
Table 2.1 Recommended Connector
Connector
Type Number
Manufacturer
Specifications
14-pin (2.54-mm
pitch) connector
7614-6002
3M Japan Limited
14-pin straight type (Japan)
2514-6002 3M Limited 14-pin straight type (other countries)
20-pin (1.27-mm
pitch) connector
FTSH-110-01-L-DV-K Samtec 20-pin surface-mount straight type
10-pin (1.27-mm
pitch) connector
FTSH-105-01-L-DV-K Samtec 10-pin surface-mount straight type
10-pin (1.27-mm
pitch) connector
FTSH-105-01-L-DV*
(no guide marking)
Samtec 10-pin surface-mount straight type
Note: When using the connector without a guide marking, take care regarding the direction for insertion of the cable.
(3) For the pin assignments of the connector, refer to the additional document for user’s manual for the
E1/E20 emulator or E2 emulator Lite which corresponds to the target MCU.
(4) Connect one end of the user-system interface cable to the E2 Lite and the other end to the connector on
the user system as shown in Figure 2.3 and Figure 2.4.

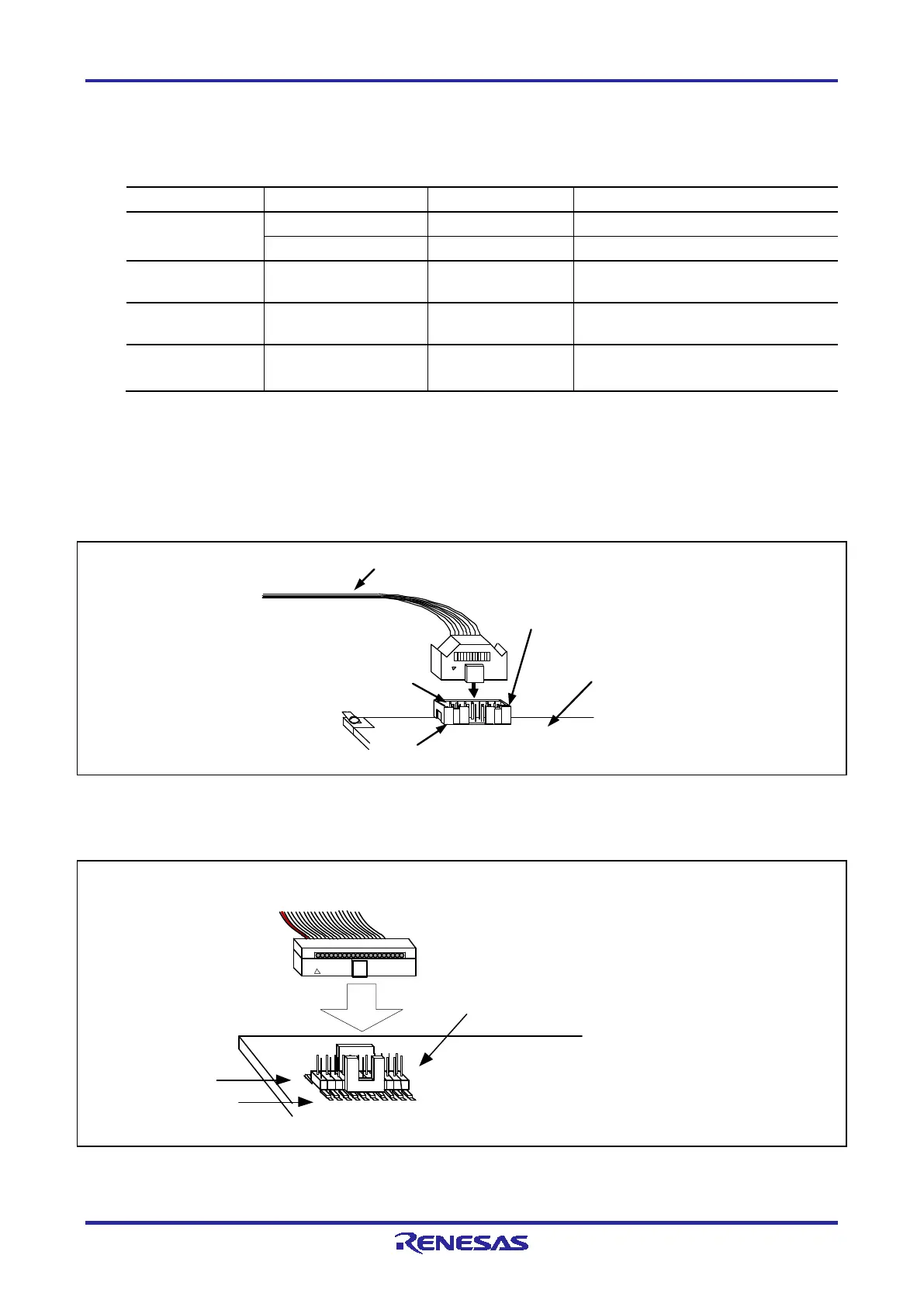

Figure 2.3 Connecting the User-System Interface Cable to the 14-Pin Connector when the E2 Lite is
to be Used
User system
Connector:
20-pin (1.27-mm pin pitch) connector
Samtec type number: FTSH-110-01-L-DV-K
Pin 1
Pin 2
User-system interface cable with the 20-pin
(1.27-mm pin pitch) connector
Figure 2.4 Connecting the User-System Interface Cable to the 20-Pin Connector when the E2 Lite is
to be Used
User system
14-pin user-system interface cable
14-pin connector
7614-6002 or
2514-6002
Pin 1
Pin 2
