Renfert MT3 - Commissioning

- 3 -
EN

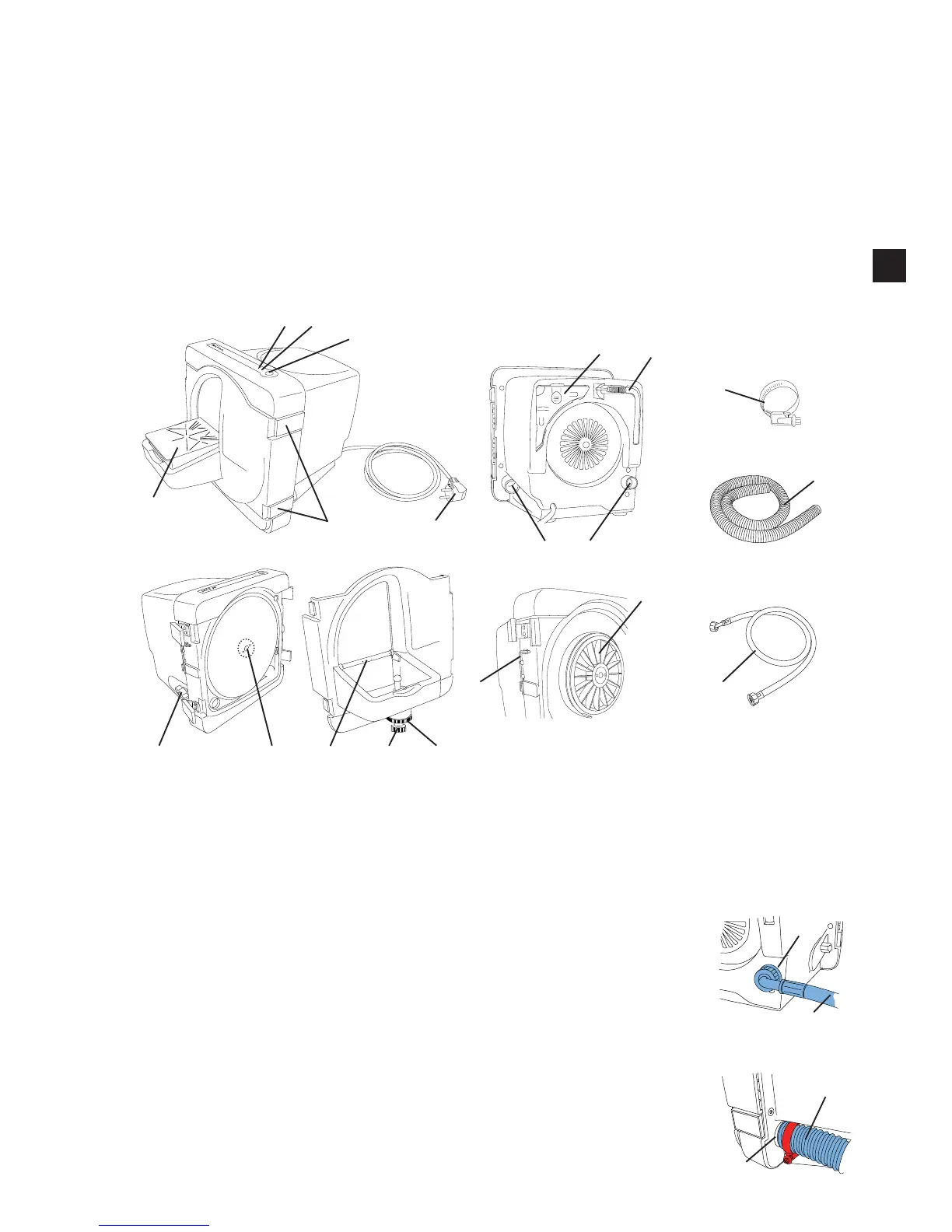

1.2 MT3 pro
1 hose clamp
 
3 operating indicator
4 fault indicator
5 grinding table
6 door latch (4x)
7 mains plug
8 drain hose
9 water hose
10 angle bracket
11 pull-off tool
12 water connection
13 darin water connecting branch
14 water inlet
15 cover
16 fastening screw
17 lock pins
18 rinse tube
19 adjusting screw
20 knurled nut
22 Allen key, SW4

Fig. 2
5
6
2
34
7
9
10
11
12
13
23
22
19 20
18
15/16/17
14
8
1
2. Commissioning
2.1 Positioning
Place appliance on solid even working surface.
Place appliance close to a supply water connection and drain.
Place appliance with easy access to the mains plug socket.
2.2 Water connection
2.2.1 Water supply
Connect water hose (9) to water connection (12).
Connect the water hose to a water supply with a shutoff tap.

Fig. 3
9
12
2.2.2 Drain water

Fix with a hose clamp.
Place drain water hose with downward slope.
Fig. 4
8
13
