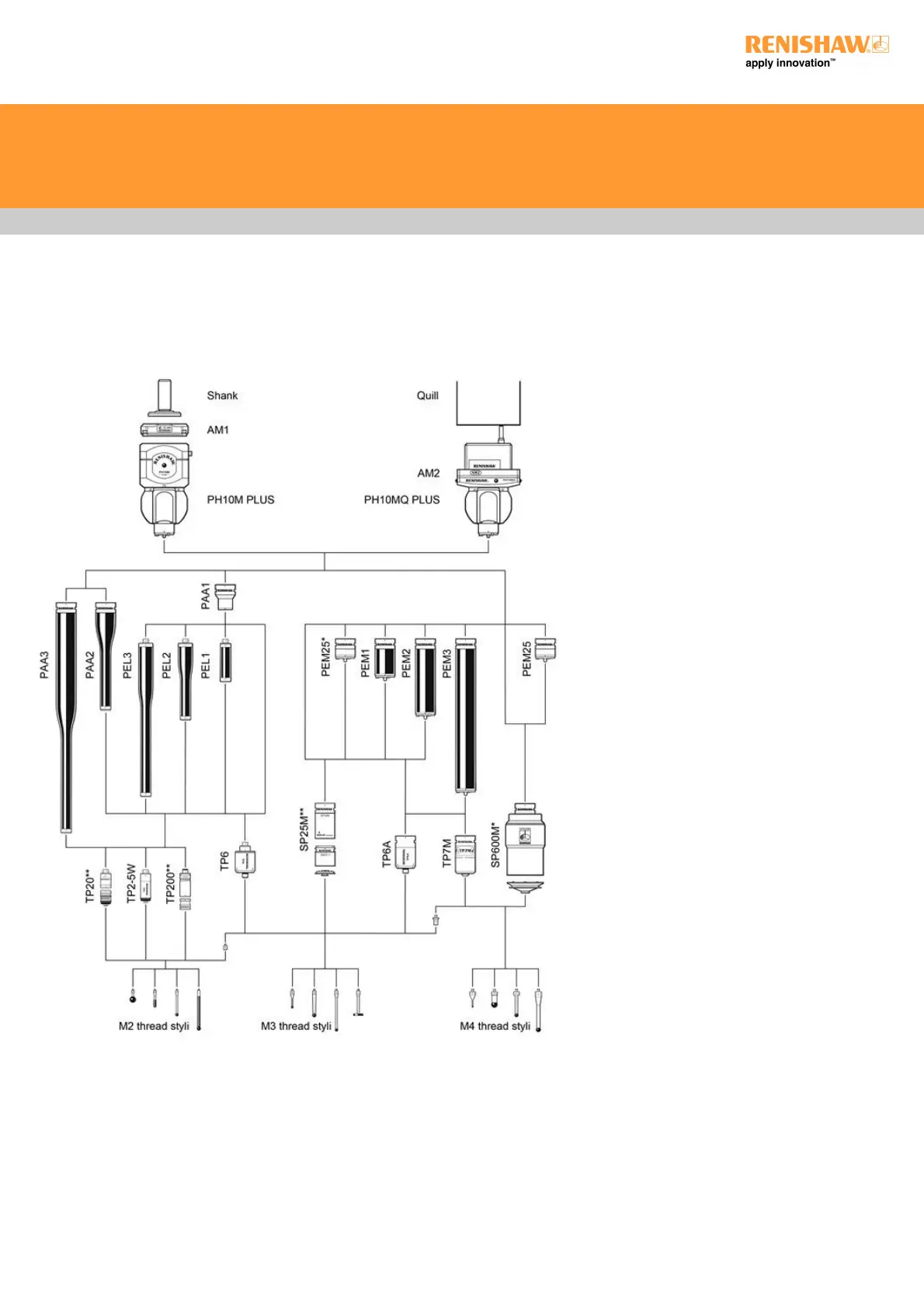

PH10M PLUS and PH10MQ PLUS system diagrams
The diagram below shows the range of extensions, probes and styli which can be used in conjunction with the PH10M PLUS and PH10MQ
PLUS heads.
* PH10MQ PLUS used with SP600M requires a PEM25 extension bar to achieve A = 97.5° or A = 105° in all B‐axis positions.
** Other modules versions are available for TP20, TP200 and SP25M.
PH10 PLUS installation and user's guide
www.renishaw.com
Issued 03 2020
23
