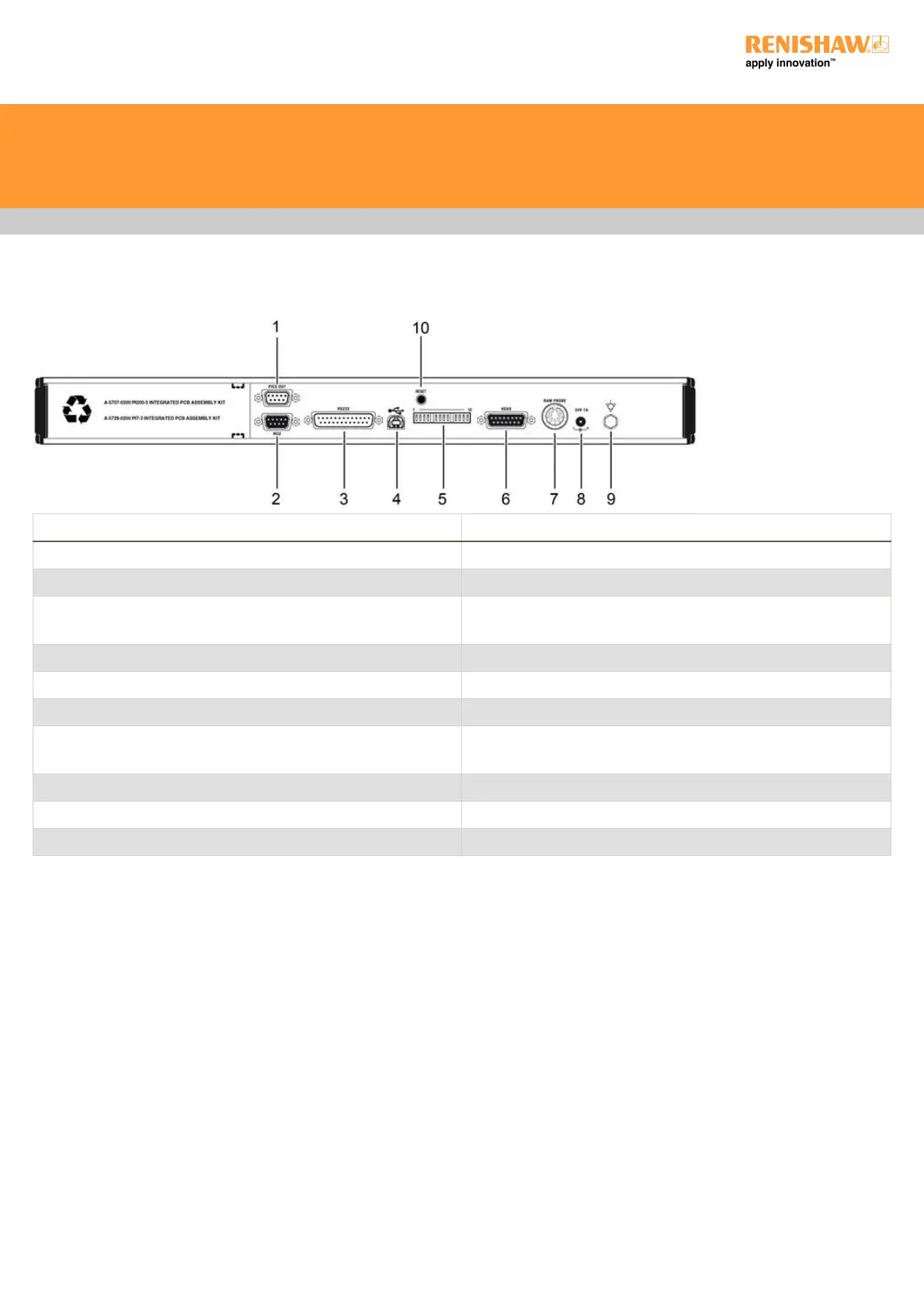

PHC10-3 PLUS rear panel layout
Key Description
1 9-way D-type plug for PICS output.
2 9-way D-type connector to HCU2.
3 25-way D-type plug RS232 communications connector to CMM
computer.
4 USB type 'B' socket.
5 PHC10-3 configuration switches.
6 15-way D-type connector to probe head.
7 7-pin DIN raw probe connector to probe interface or multiwire input
for internal interfaces.
8 DC power jack.
9 Equipment bond point.
10 Reset button.
Refer to the PHC10-3 PLUS installation guide (part number H-1000-0077) for further detail.
PH10 PLUS installation and user's guide
www.renishaw.com
Issued 03 2020
26
