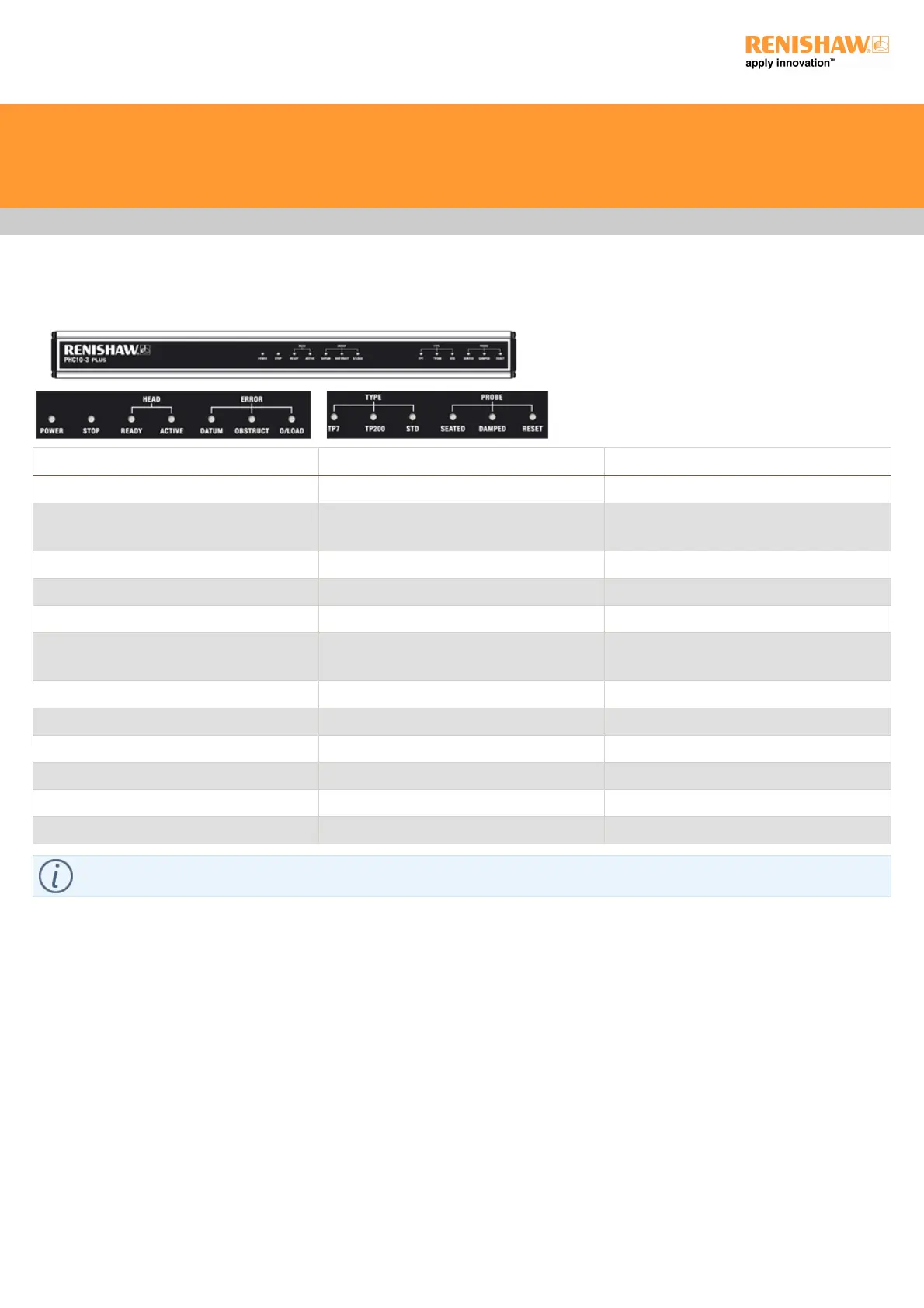

PHC10-3 PLUS LED description
Name Colour Function
POWER Green Power on when lit
STOP Red PHC10-3 PLUS asserting PICS STOP when lit
PI 200-3 asserting PICS STOP when flashing
HEAD READY Green Head ready for use when lit
HEAD ACTIVE Yellow Head indexing when lit
DATUM ERROR Red Head datum error when lit
OBSTRUCT ERROR Red Head obstruct error when lit, non PLUS
interface fitted
OVERLOAD ERROR Red Head overload error when lit
TP7 Green TP7 detected when lit
TP200 Green TP200 detected when lit
STD Green TP2 / TP20 / TP6 detected when lit
SEATED Green Probe seated when lit
DAMPED Yellow Probe damped when lit
NOTE: The probe reset button on the front of PHC10-3 PLUS only functions if a probe interface card is installed within the unit.
