Renishaw RMI-Q Installation Guide

2.11
RMI-Q basics
Remote external audible output
Any output (set to pulsed) can be utilised to
operate an external remote audible indicator.
The audible indicator must comply with the output
transistor specification.
i.e. up to 50 mA.
up to 30 V.

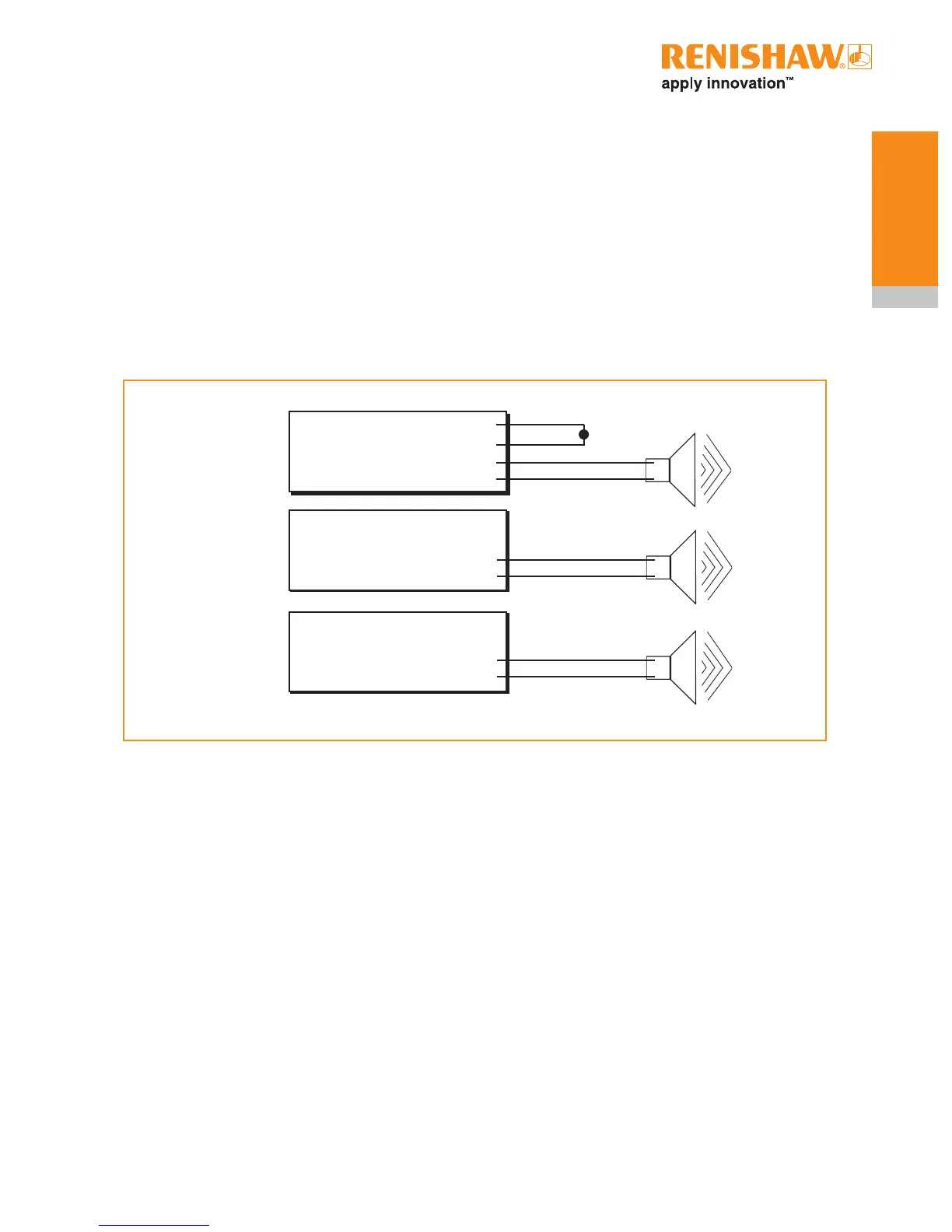

Wiring configurations are shown below.
Option 1.
SSR output
Option 2.
Using 5 V output
Option 3.
Using machine
voltage output
RMI-Q
Red
Turquoise
Turquoise / Black
0 V Black
+ve
–ve
Yellow
0 V Grey
5 V isolated
driven probe
status
RMI-Q
Orange
0 V Black
Driven probe
status output at
supply voltage
+ve
–ve
+ve
–ve
RMI-Q
