Renogy MT-1 User Manual

4

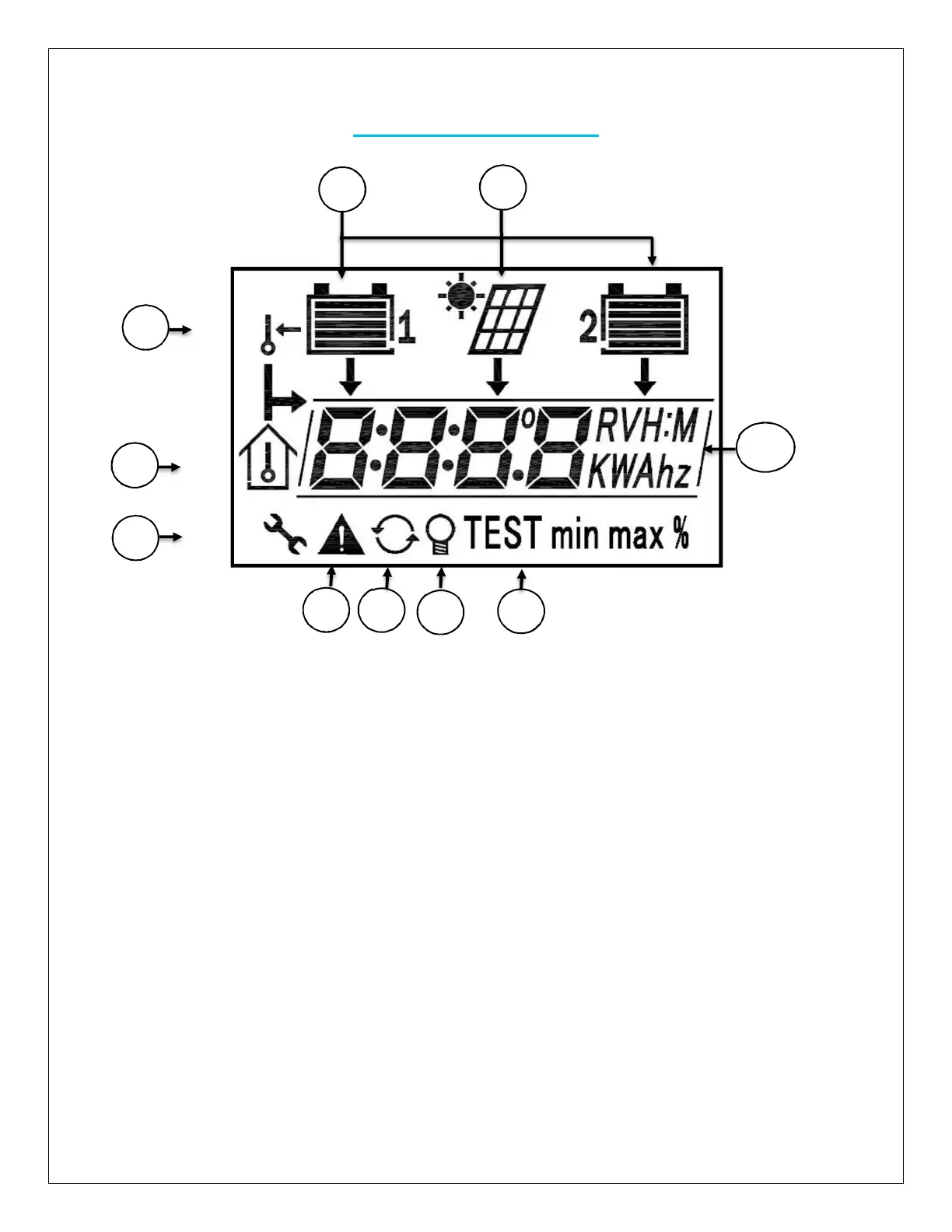

Identification of Display
1. Solar Icon
2. Battery Icon(s)—icon is present if the battery is connected otherwise it will remain flashing.
It will demonstrate the battery level in which each bar represents 20% of the battery
capacity.
3. Remote Temperature Sensor Icon (optional)—if the charge controller has the Remote
Temperature Sensor connected (separate purchase required), the meter will display this
icon.
4. Local Temperature Sensor Icon—indicates the current temperature of the room.
5. Setting Icon—icon is present when the user is modifying parameters of the controller such
as brightness, clock, temperature units, or screen cycling.
6. Error Indicator—indicates improper connection, tracer error, or short circuiting of the
battery or solar panels.
7. Data Repeat Icon—the meter will automatically cycle through the different screens.
8. Backlight on Icon—indicates backlight is on.
9. Self-Test Indicator—when the tracer is powered on, it will “TEST” through all screens and
make sure everything is running appropriately.
10. Data Units
