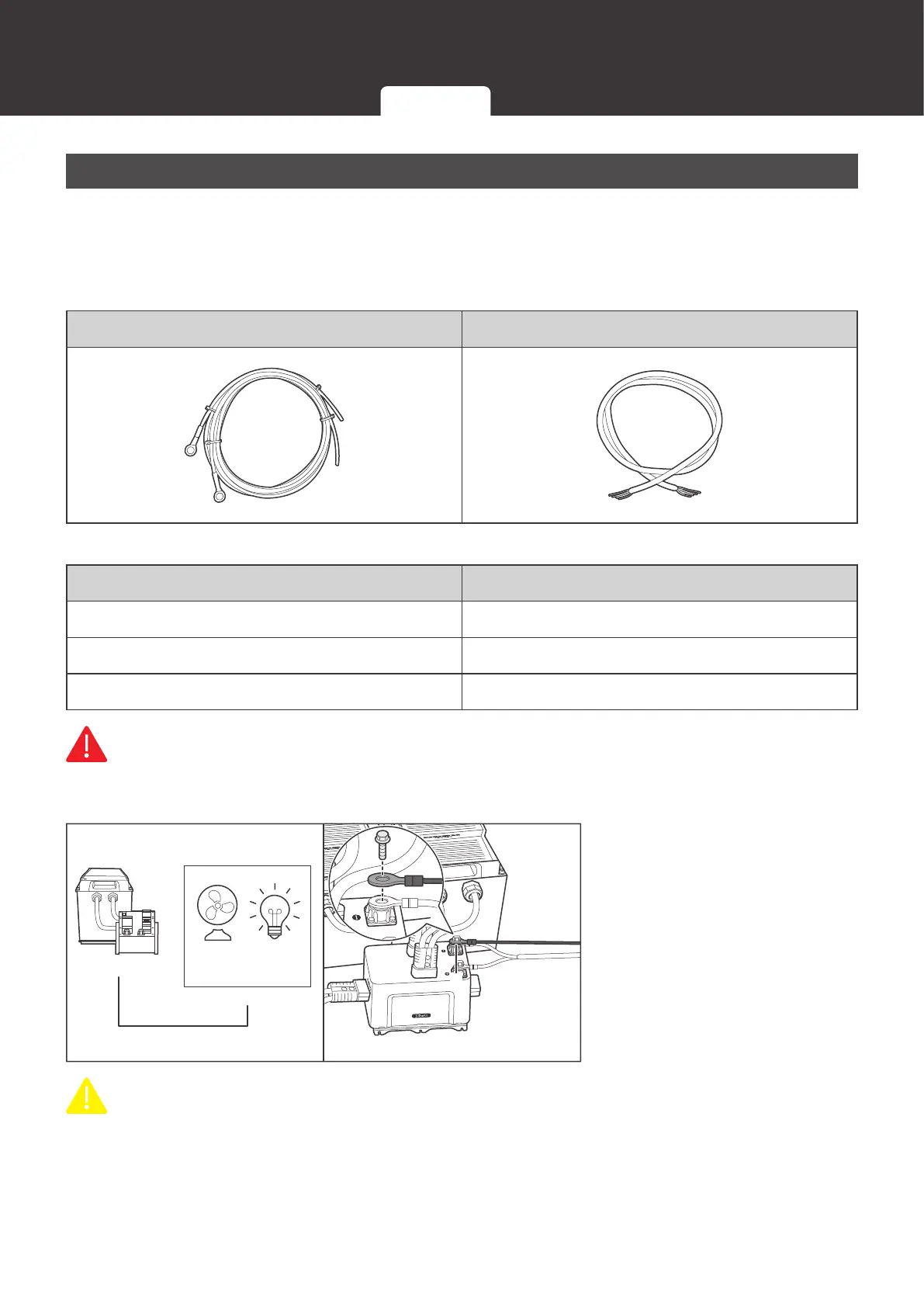

Embedding
External Load
Renogy ONE comes with 3 relays which can be connected to 3 DC loads (≤30V DC, ≤5A). You
can power on/off the loads via Panel Switches on Renogy ONE. For users who do not need
external loads, no adapter cable pre-embedding is required.
Recommended Accessories
Ring Terminal to Bare Wire Adapter Cable Bare Wire Cable
Cable Specifications
Cable Length (ft) / (m) Recommended Cable Size
0-10ft / 0-3m 8AWG
11-20ft / 3-6m 6AWG
21-30ft / 9-6m 6AWG
WARNIN
z
For your safety, please select cables that meet the specifications according to the actual
use.
-
-
-
DC load
(≤30V DC, ≤5A)
1. Connect one of the ring
terminals of the adapter
cable to the negative
terminal of the DC power
supply device, and
connect the other end to
the negative pole of the
load.
CAUTIO
z
Illustrations in this user manual are based on scenarios where REGO 12V 400Ah Lithium
Iron Phosphate Battery and REGO 3 Ports 400A Battery Combiner Box are adopted as DC
power supplies.
12V Power Cable Communication Cables External Load
To Next Page
