Renogy ONE M1 - External Load Wiring

30
Wiring
Communication Cables
+ -
CAN/RS485
TYPE-C
CAN/RS485
TYPE-C
IN1
IN2
OUT1
OUT2
IN3 OUT3

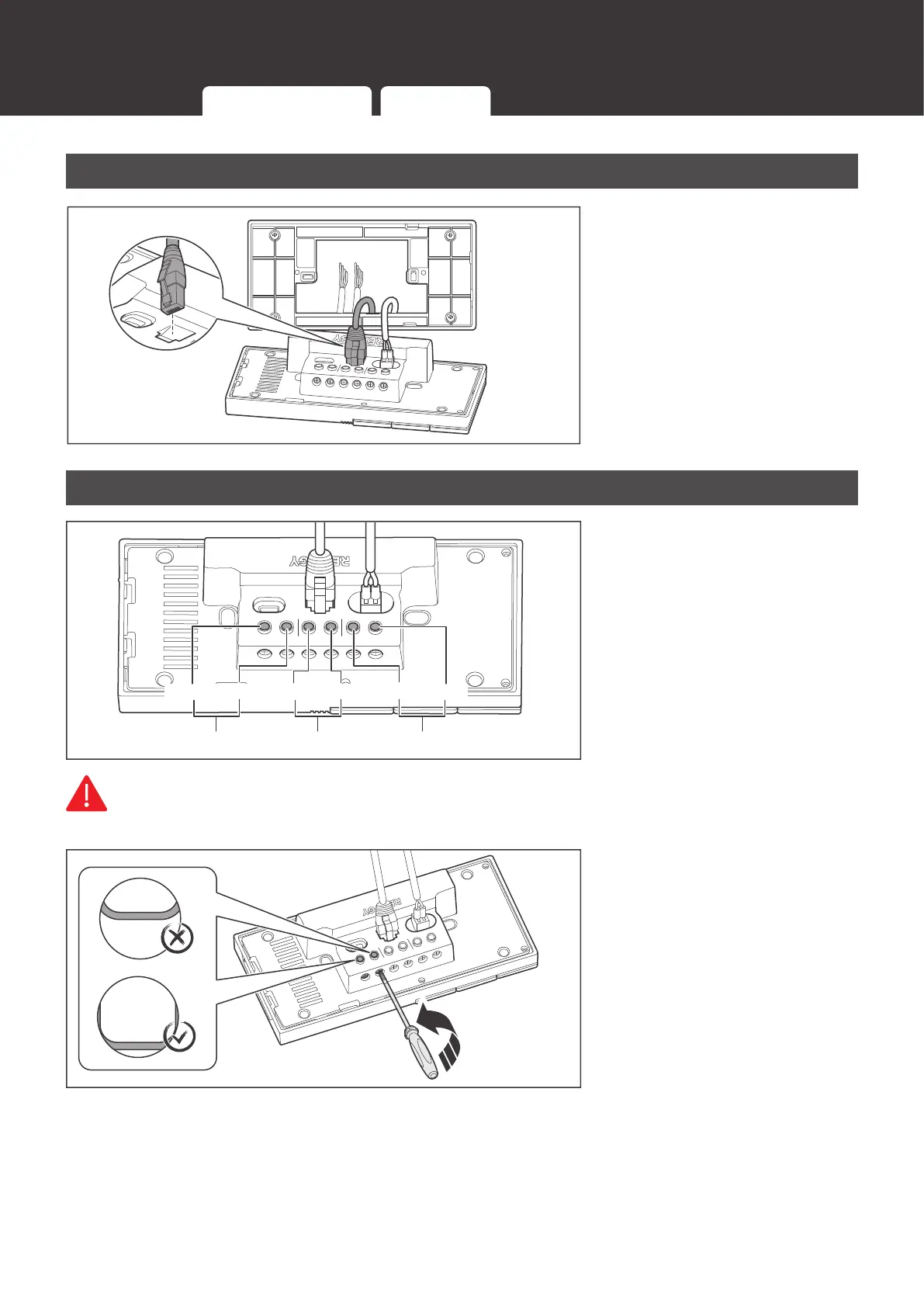

1. Connect the pre-
embedded RJ45 connector
to the RJ45 port of Renogy
ONE.
External Load
IN1
+ -
IN2
CAN/RS485 TYPE-C
OUT1 OUT2 IN3 OUT3
CH3
OUT 3 IN 3 OUT 2 IN 2
CH1
OUT 1 IN 1
CH2
1. Ensure that the DC power
supply cable and the cable
that is connected to the
positive pole of the load
are connected to the same
group of terminals. For
example
, “IN 1” and “OUT
1” are in a
group.
WARNIN
G
z
Make sure the DC power supply is powered off before wiring.
IN1
+ -
IN2
CAN/RS485
TYPE-C
OUT1 OUT2 IN3 OUT3
2. Use a Phillips screwdriver
to turn the wire hatch
screw counterclockwise.
Make sure that the terminal
hatch is completely open.
12V Power Cable Communication Cables External Load
