Embedding
Embedding

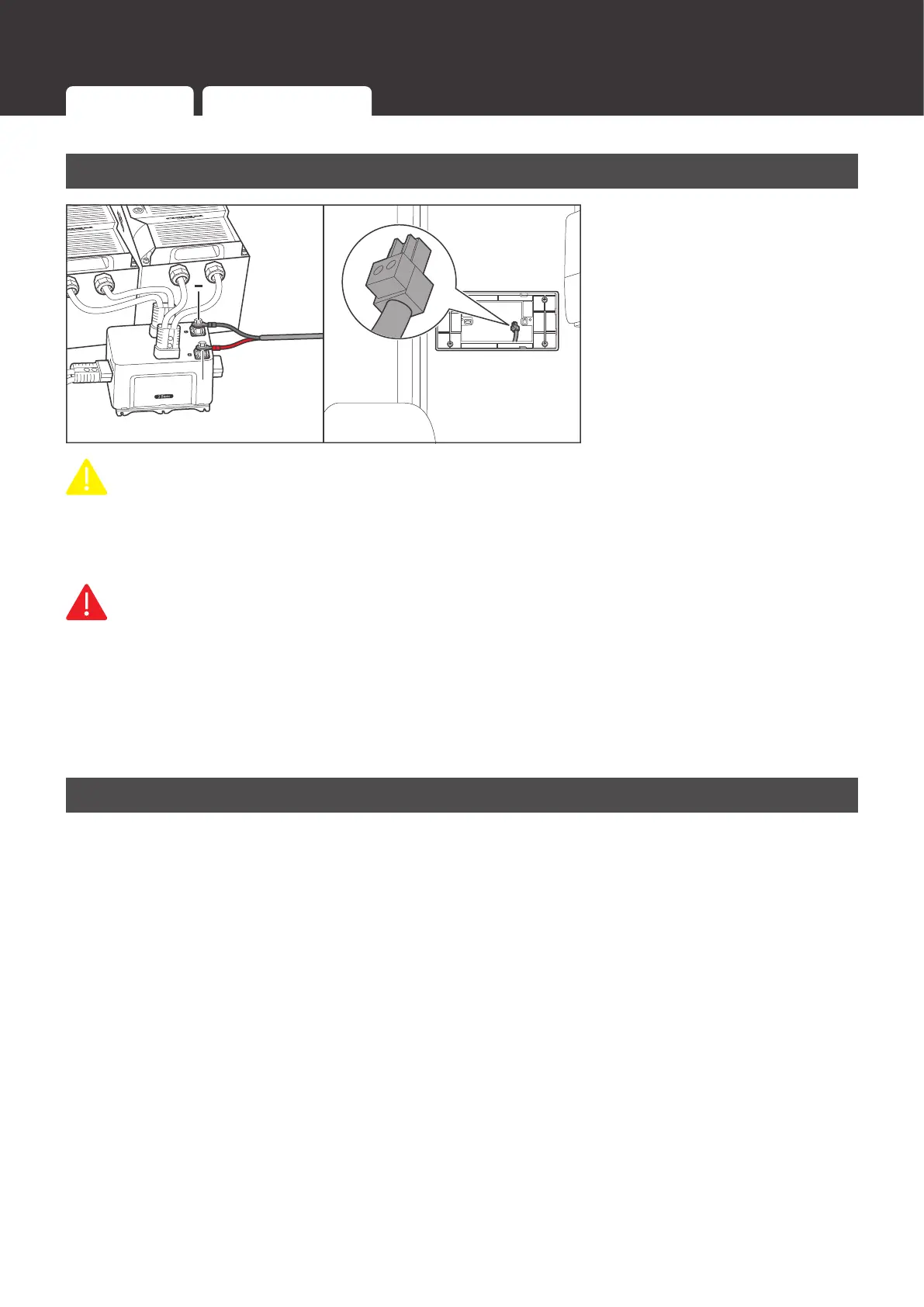

12V Power Cable
+
1. Connect the ring terminals
of the 12V power cable to
the positive and negative
terminals of the DC
power supply device, and
reserve the connector end
of the power cable in the
installation hole.
CAUTIO
z
Illustrations in this user manual are based on scenarios where REGO 12V 400Ah Lithium
Iron Phosphate Battery and REGO 3 Ports 400A Battery Combiner Box are adopted as
power supplies.
WARNIN
z
Make sure the DC power supply is powered off before connection.
z
Renogy ONE can be connected to a DC power supply of up to 16V; otherwise Renogy ONE
may be damaged.
z
Please confirm the polarity of the DC power supply device before connection. A reverse
polarity contact will result in abnormal operations.
Communication Cables
Renogy ONE can communicate with Renogy energy devices in several ways:
1. Bluetooth wireless communication;
2. Wired communication based on RS485 protocol;
3. Wired communication based on RV-C protocol.
You can choose an appropriate communication method according to the actual situation.
For Bluetooth wireless communication, there is no need to pre-embed the communication cable.
For RS485 or RV-C communication, you need to pre-embed the communication cable in the
installation hole.
12V Power Cable Communication Cables External Load
