Reolink E1 User Manual

Reolink Wireless Camera
User Manual
2

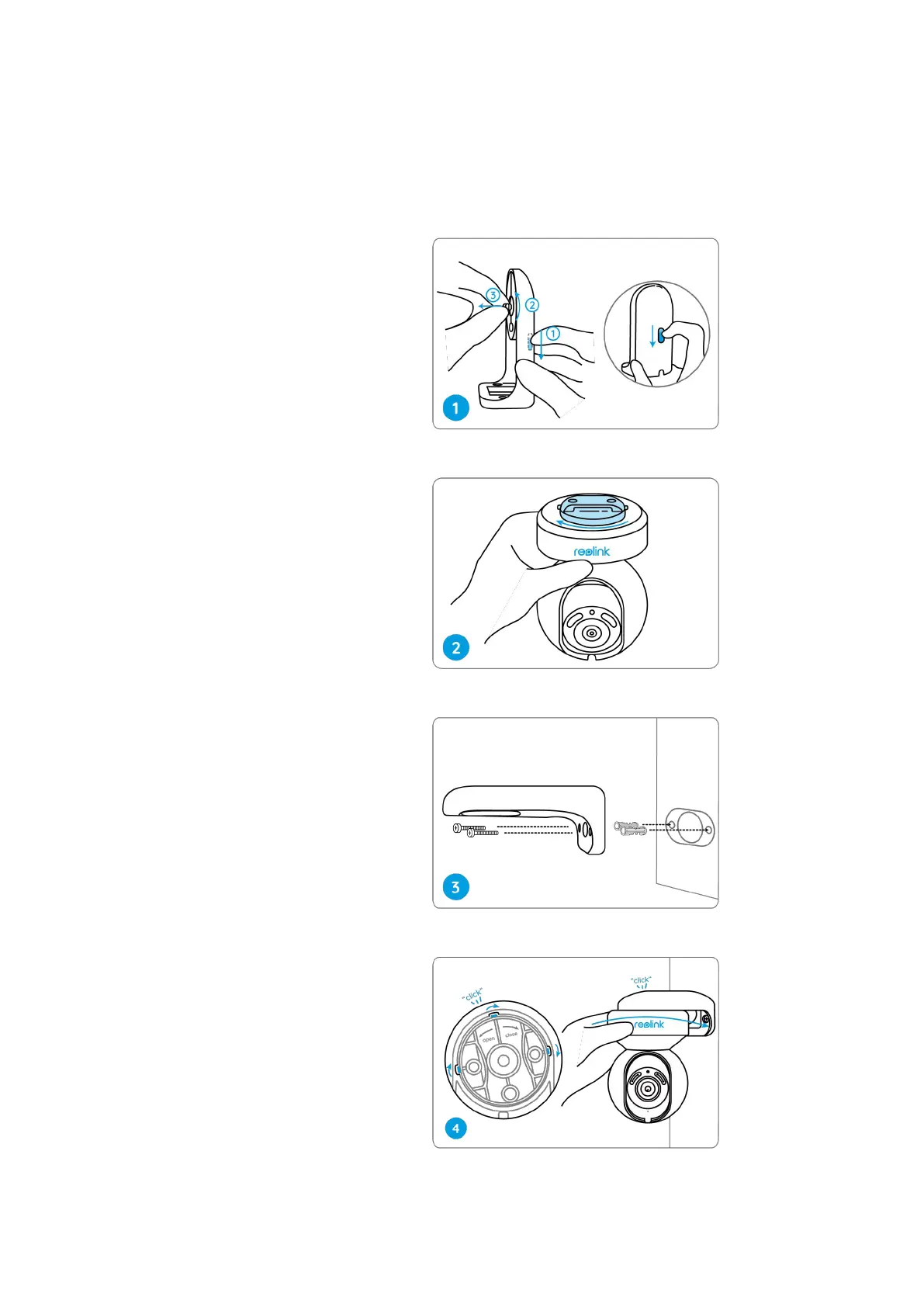

Mount E1 Outdoor
Mount the camera to the wall
For outdoor use, E1 Outdoor must be installed upside down for better waterproof
performance.
Pull the button of the
security mount and unscrew
the bracket to separate the
two parts.
Screw the bracket to the
bottom of the camera.
Drill holes in accordance with
the mounting template and
screw the security mount to
the wall.
Choose a proper direction of
the camera and then align
the bracket to the security
mount and lock the camera
in place by turning
anti-clockwise.
NOTE: Use the drywall anchors included in the package if needed.

Reolink E1 Specifications

General

Pan & Tilt	355° Pan, 50° Tilt
Audio	Two-way audio
Storage	microSD card slot (up to 128GB)
Image Sensor	1/2.7" CMOS Sensor
Wireless Standard	IEEE 802.11b/g/n
Wireless Security	WPA-PSK/WPA2-PSK
Ethernet	No
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Weight	200g
Motion Detection	Yes
Resolution	2304x1296 (3MP)
Night Vision	40 ft (12m)
Connectivity	Wi-Fi
Power	DC 5V/1A
IR Distance	40 ft (12m)
Day/Night Mode	Auto-switching
Viewing Angle	Horizontal: 87.5°, Vertical: 47°, Diagonal: 100°
