Reolink RLN16-410 User Manual

Reolink PoE NVR
User Manual
9

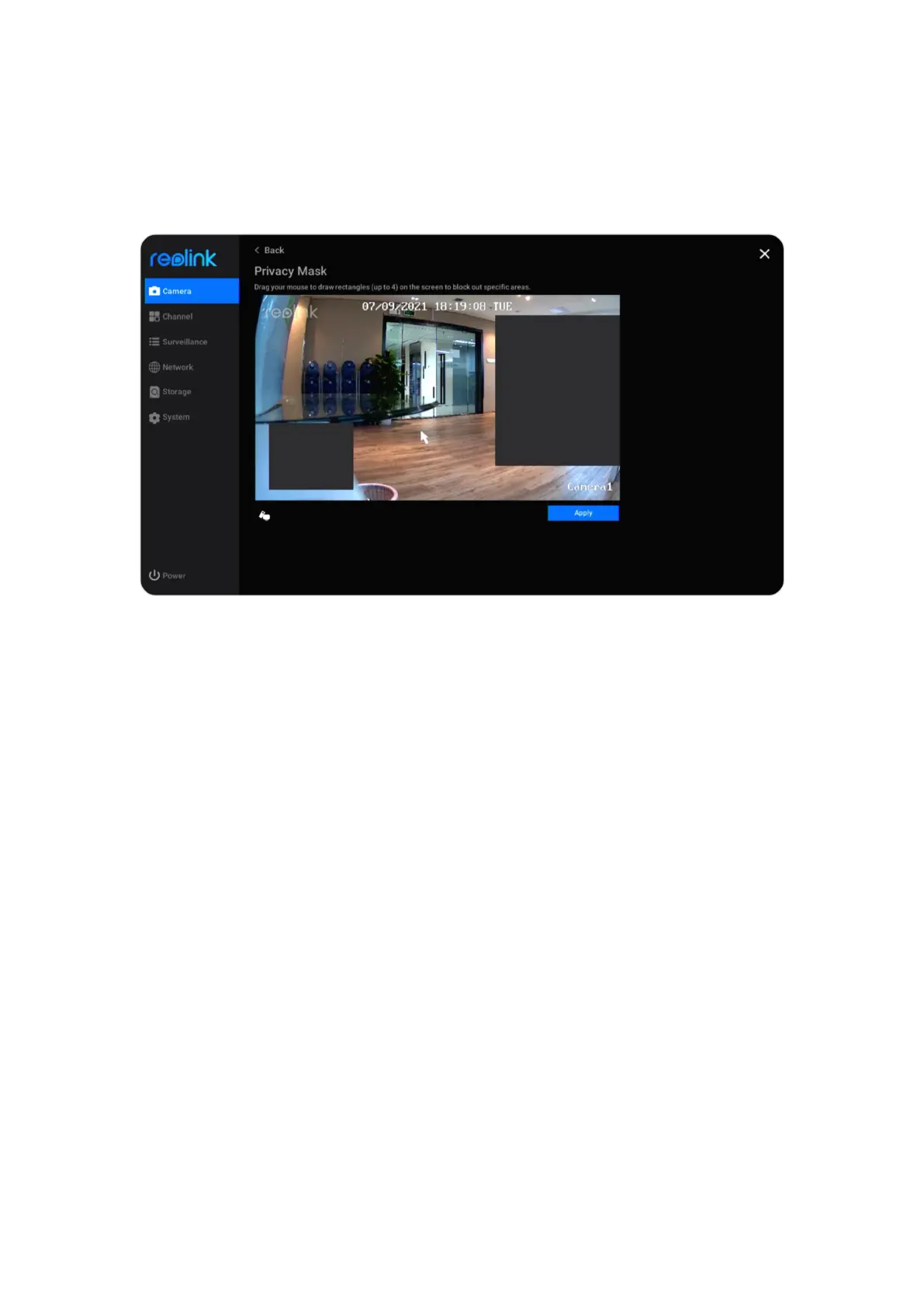

Privacy Mask Settings
You can set the privacy zone to block parts of the live image to protect your privacy.
After setup, the privacy zone will be blocked in both live view and recordings.
Click Privacy Mask Settings, use your mouse to drag up to 4 zones. Then click
Apply to save the change.
Audio and Light
Go to Camera > Audio and Light, here you can set up camera’s audio, status LED,
infrared light and spotlight.
Record Audio: For cameras with built-in microphone, click to enable this option.
Then it will save recordings with audio and also allow to preview with audio.
Status LED: For cameras with status LED, click to disable this option, then the
camera’s status LED will be off.
Infrared Lights: Choose from Auto or Off. Usually suggest you to keep it as Auto.

Reolink RLN16-410 Specifications

General

Number of users	20 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	16 channels
Supported resolutions	1024x768, 1280x720, 1280x800, 1280x1024, 1440x900, 1920x1080
Operating system installed	Embedded LINUX
Product color	Black
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	17
Supported network protocols	HTTP, HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Total installed storage capacity	3000 GB
Mobile operating systems supported	Android, iOS
Output current	2.5 A
Output voltage	48 V
AC input voltage	100-240 V
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	HDMI, LAN (RJ-45)
Wi-Fi	No

Weight and Dimensions

Depth	260 mm
Width	330 mm
Height	45 mm
Weight	3000 g
