Reolink RLN16-410 User Manual

Reolink PoE NVR
User Manual
38
8. System Management
General

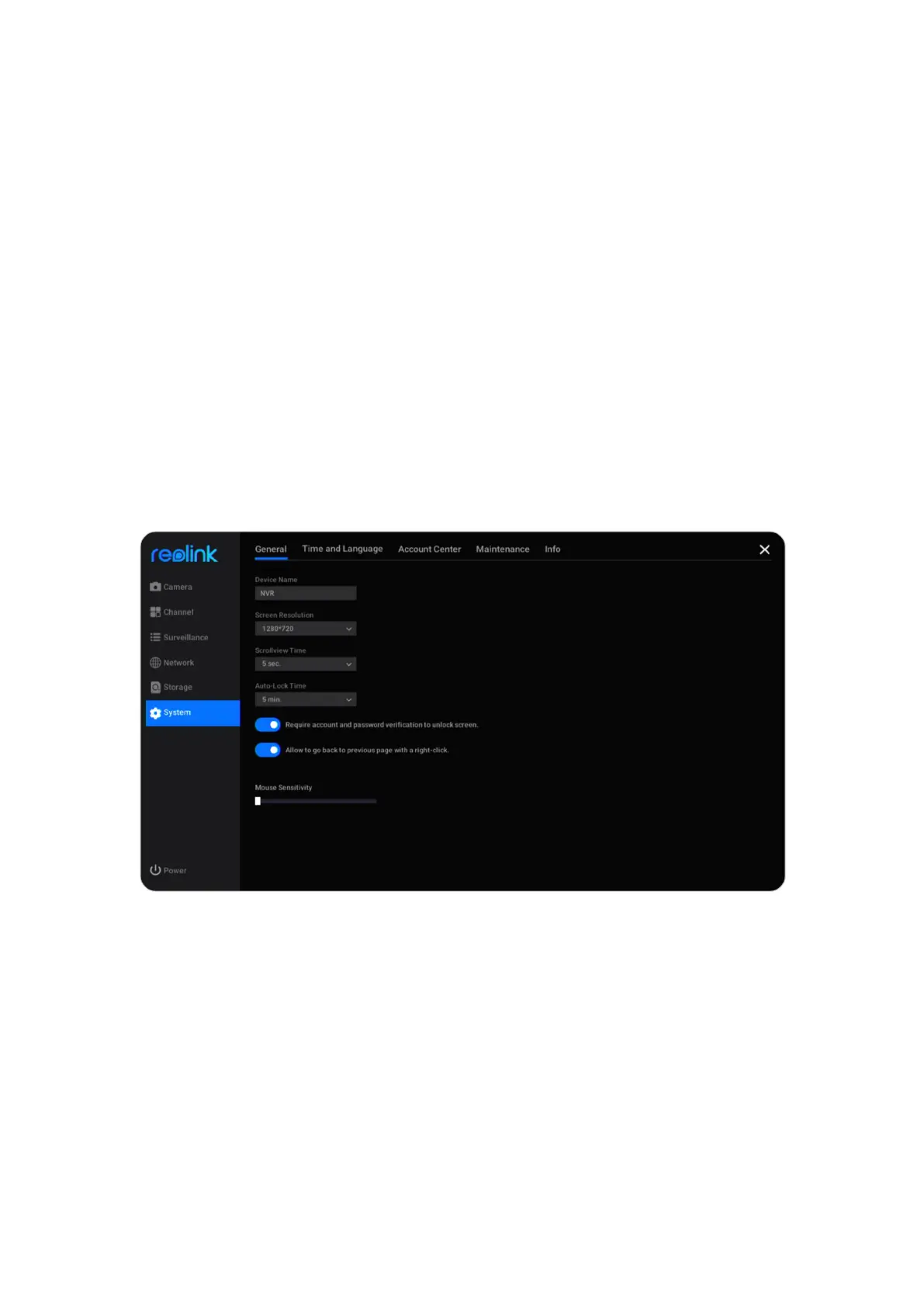

At System > General page, you can set up the settings below.
Device Name: Set a name for the NVR.
Screen Resolution: Set a display resolution on the NVR monitor.
Scrollview Time: Set a time for the scrollview. For example, set it as 5 sec, then it’ll
automatically switch to the next screen of the camera’s live image after every 5
seconds.
Auto Lock Time: Set the time for locking the screen automatically, choose the
option from 1 min, 5 min, 10 min or None. Choose None, the NVR will not
automatically lock the screen. Check the option “Require account and password
verification to unlock screen”, then it’ll ask for the NVR password at the set time
to unlock the screen.

Reolink RLN16-410 Specifications

General

Number of users	20 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	16 channels
Supported resolutions	1024x768, 1280x720, 1280x800, 1280x1024, 1440x900, 1920x1080
Operating system installed	Embedded LINUX
Product color	Black
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	17
Supported network protocols	HTTP, HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Total installed storage capacity	3000 GB
Mobile operating systems supported	Android, iOS
Output current	2.5 A
Output voltage	48 V
AC input voltage	100-240 V
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	HDMI, LAN (RJ-45)
Wi-Fi	No

Weight and Dimensions

Depth	260 mm
Width	330 mm
Height	45 mm
Weight	3000 g
