Reolink RLN16-410 User Manual

Reolink PoE NVR
User Manual
30

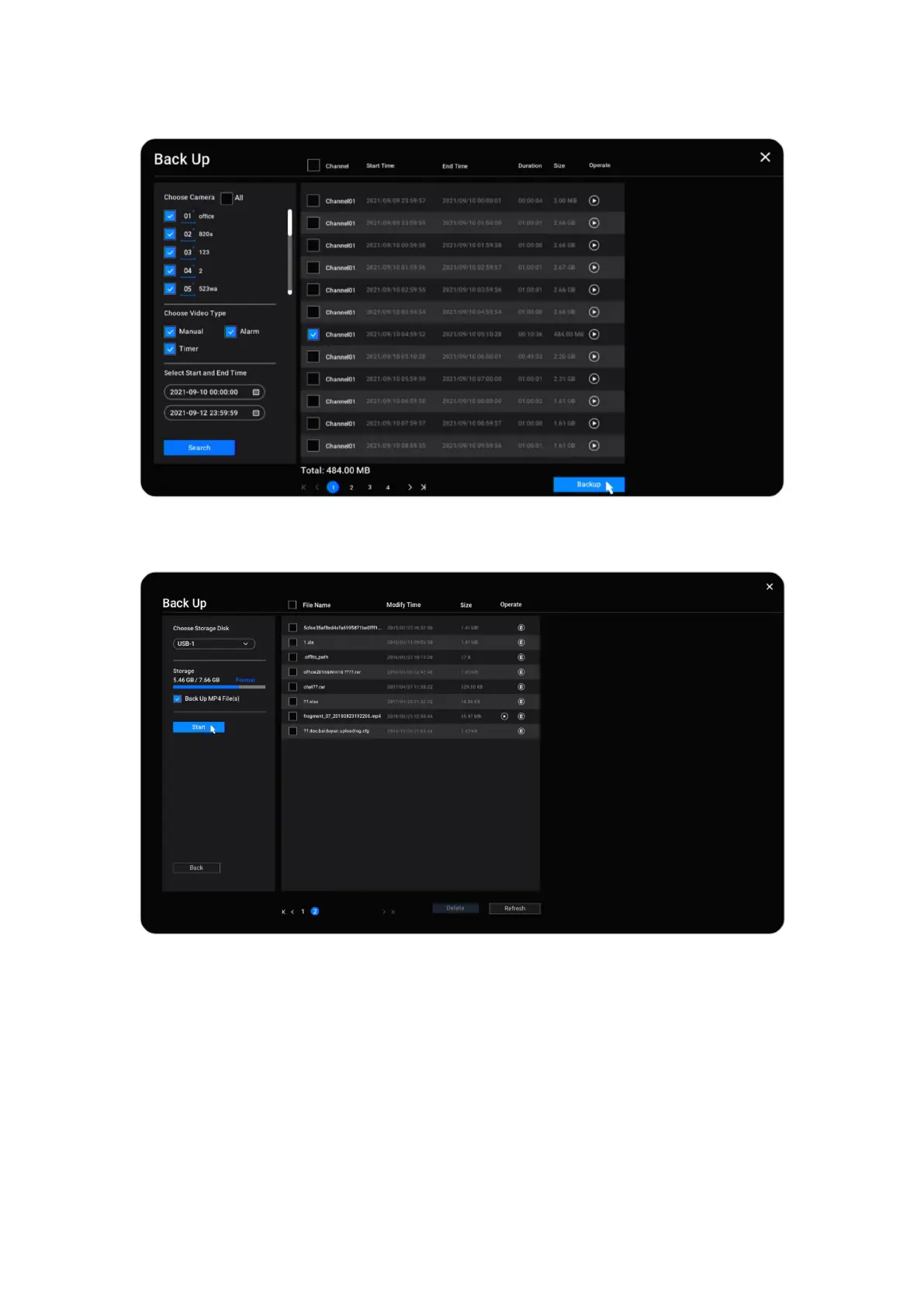

Select the recordings from the searched recording list, then click Backup.
Choose the storage disk to save the cut recording clip. Check the option Back Up
MP4 File, it’ll convert the recording into mp4 for saving. And then Click Start.
Delete Recordings
The NVR system doesn’t support deleting selected recordings. The NVR will
automatically delete and overwrite the older recordings when the HDD is full. Or
you can manually format the HDD to delete all recordings.

Reolink RLN16-410 Specifications

General

Number of users	20 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	16 channels
Supported resolutions	1024x768, 1280x720, 1280x800, 1280x1024, 1440x900, 1920x1080
Operating system installed	Embedded LINUX
Product color	Black
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	17
Supported network protocols	HTTP, HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Total installed storage capacity	3000 GB
Mobile operating systems supported	Android, iOS
Output current	2.5 A
Output voltage	48 V
AC input voltage	100-240 V
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	HDMI, LAN (RJ-45)
Wi-Fi	No

Weight and Dimensions

Depth	260 mm
Width	330 mm
Height	45 mm
Weight	3000 g
