Reolink RLN16-410 User Manual

Reolink PoE NVR
User Manual
5
NVR Supportability and Hardware Versions
NVR Model
Hardwar
e Version
Supported
Camera
Resolution
Person/Vehic
le Detection
Max Single
HDD
Capacity
Interfa
ce
RLN16-410
H3MB18
4mp/5mp/8mp/
12mp
Y
6TB
New UI
H3MB02
4mp/5mp
N
4TB
old
H3MB06
4mp/5mp
N
4TB
old
RLN8-410
N3MB01
4mp/5mp/8mp/
12mp
Y
6TB
New UI
H3MB18
4mp/5mp/8mp/
12mp
Y (with latest
firmware)
6TB
New UI
N2MB02
4mp/5mp/8mp/
12mp
Y
6TB
New UI
H3MB02
4mp/5mp
N
4TB
old
RLN8-410-E
H3MB16
4mp/5mp/8mp
N
4TB
old
2. Setup and Installation
Set up the NVR
Connect and Power the NVR

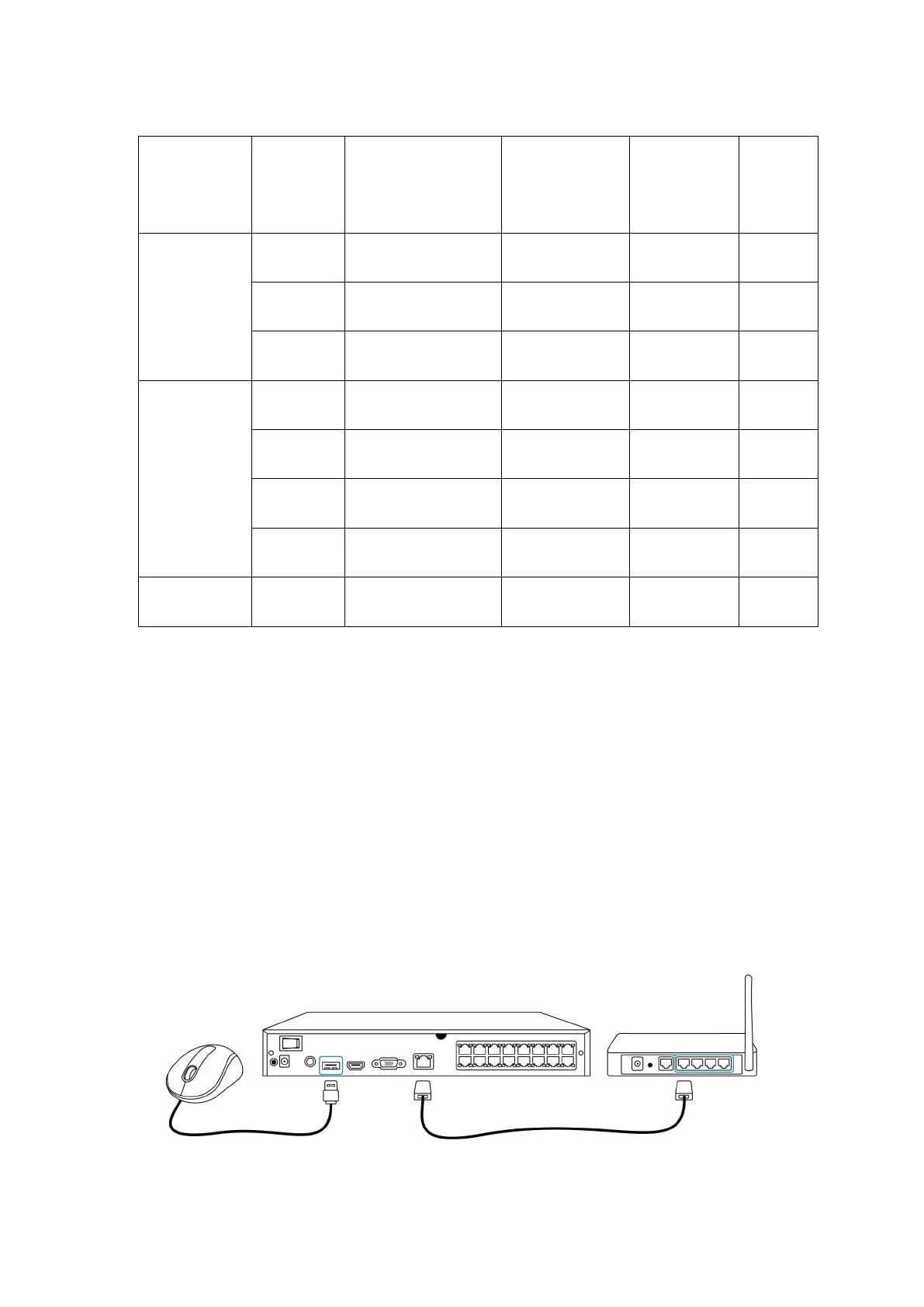

1. Connect the NVR’s LAN port to router by Ethernet cable, and connect the mouse
to the USB port of the NVR.

Reolink RLN16-410 Specifications

General

Number of users	20 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	16 channels
Supported resolutions	1024x768, 1280x720, 1280x800, 1280x1024, 1440x900, 1920x1080
Operating system installed	Embedded LINUX
Product color	Black
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	17
Supported network protocols	HTTP, HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Total installed storage capacity	3000 GB
Mobile operating systems supported	Android, iOS
Output current	2.5 A
Output voltage	48 V
AC input voltage	100-240 V
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	HDMI, LAN (RJ-45)
Wi-Fi	No

Weight and Dimensions

Depth	260 mm
Width	330 mm
Height	45 mm
Weight	3000 g
