Reolink RLN16-410 User Manual

Reolink PoE NVR
User Manual
43
Upgrade the Firmware
Before upgrade, please download the firmware file from Download Center. Unzip it
and copy the file to a USB drive, then plug the USB drive to the USB port of the
NVR.
To upgrade the firmware for NVR, please click Upgrade. Choose the firmware file
to upgrade.
To upgrade the firmware for Camera, please click Upgrade IPC. Click Local
Upgrade and choose the firmware file to upgrade.
Attention for firmware upgrade:
 If you don't want to restore your camera settings to factory status, please
uncheck the "Update Configuration Files" option during the upgrade.
 During the upgrading procedure, please do not power off the camera.
 Make sure your camera or NVR has the same model and hardware version that
matches the new firmware you’re able to upload.

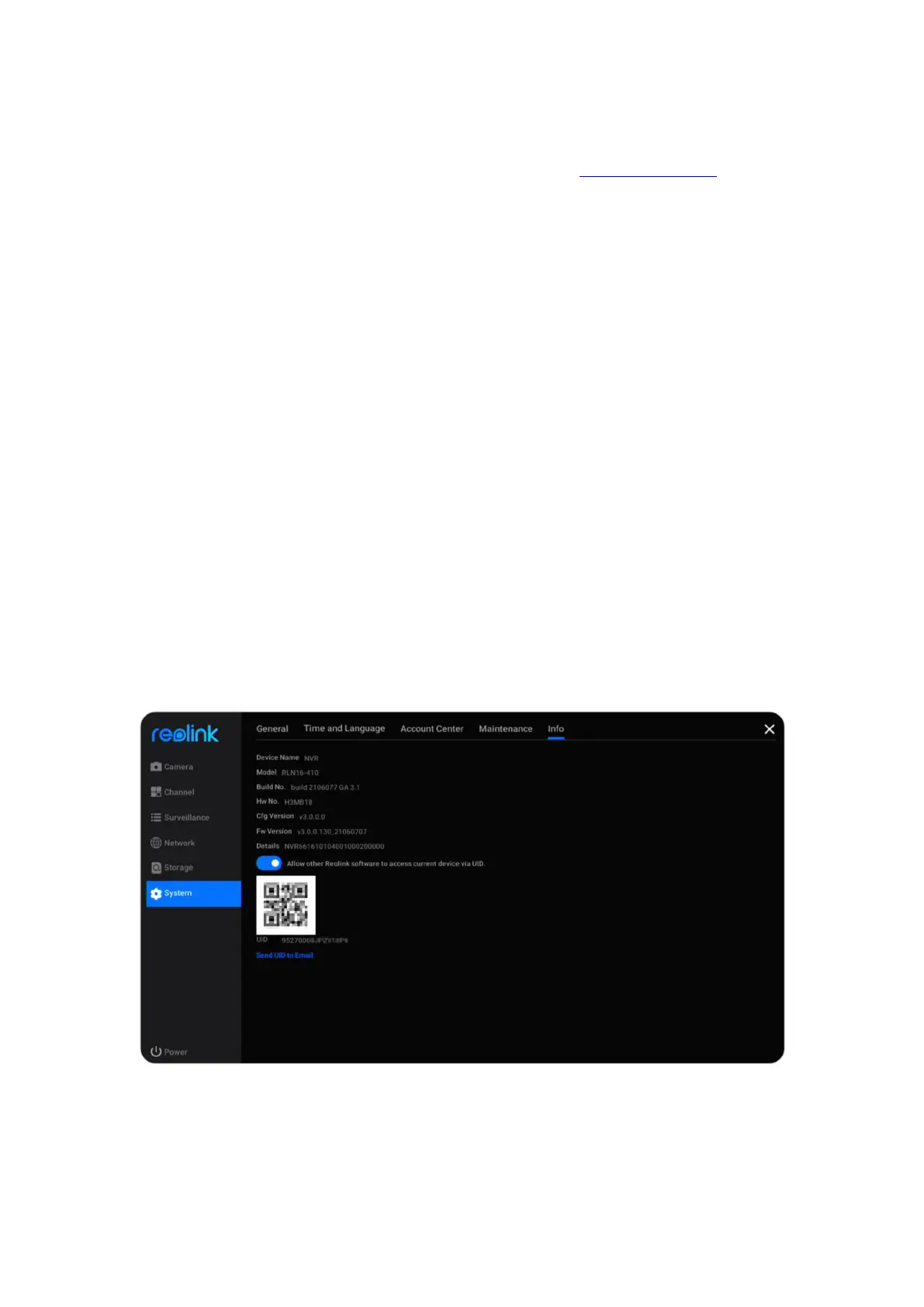

Info
Go to System > Info page, here you can see the model of the NVR, its hardware
version and firmware version, the UID numbers.

Reolink RLN16-410 Specifications

General

Number of users	20 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	16 channels
Supported resolutions	1024x768, 1280x720, 1280x800, 1280x1024, 1440x900, 1920x1080
Operating system installed	Embedded LINUX
Product color	Black
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	17
Supported network protocols	HTTP, HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Total installed storage capacity	3000 GB
Mobile operating systems supported	Android, iOS
Output current	2.5 A
Output voltage	48 V
AC input voltage	100-240 V
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	HDMI, LAN (RJ-45)
Wi-Fi	No

Weight and Dimensions

Depth	260 mm
Width	330 mm
Height	45 mm
Weight	3000 g
