ResMed Tx Link - Device connections; PSG connections

Device connections 3

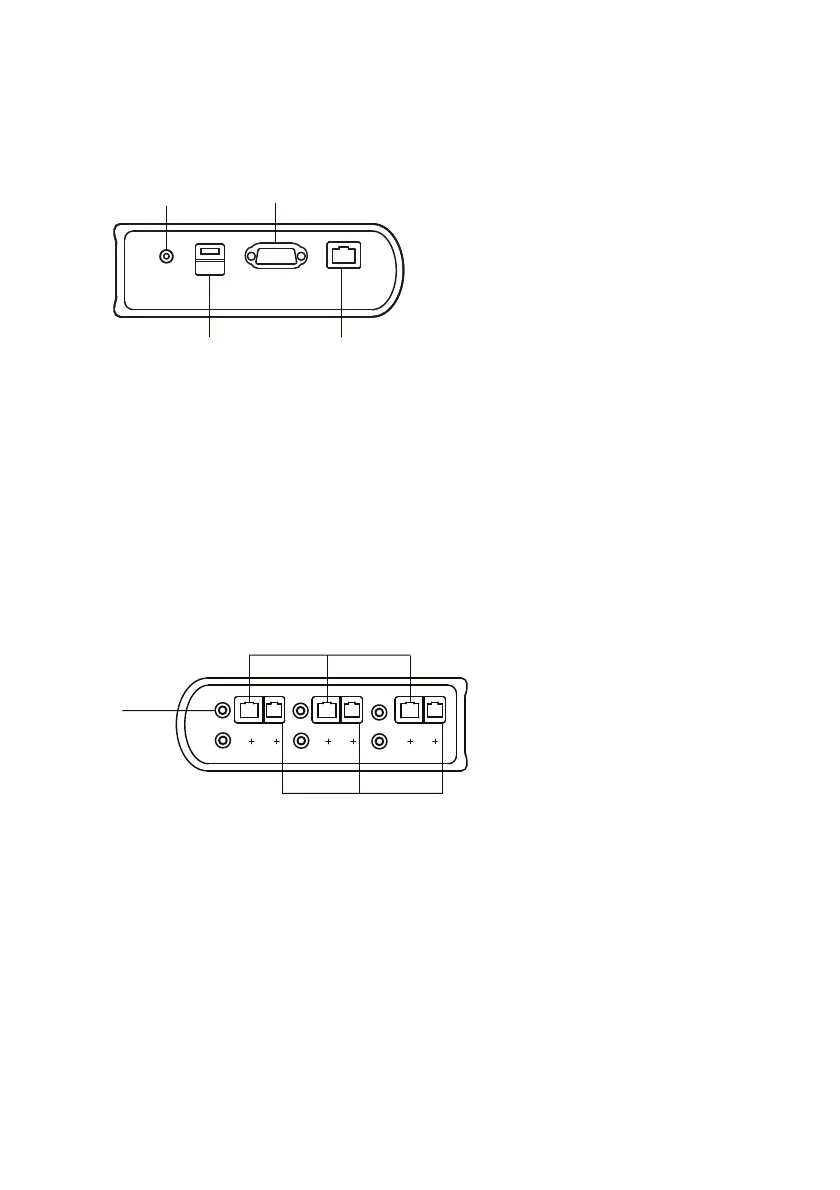

Device connections
Only one therapy device should be connected at a time via either a serial or USB
port.
1
3
2
4
1
DC Power
3
Serial
2
USB
4
Ethernet

PSG connections
Tx Link provides up to six color-coded analog DC outputs (A-F), which can be
used to connect the real-time streams measured by the ResMed therapy device
to a PSG system. To support many different types of PSG systems, each DC
output is available at three connection points. Each mono jack connector
provides one channel only. Each modular connector provides two channels.
A
A
A
B B
D
D
D
B
C
F
E
C
C
F
F
E
E
2
1
3
1
3.5 mm mono jack connector (A-F)
2
6P6C modular connector (A+B, C+D, E+F)
3
4P4C modular connector (A+B, C+D, E+F)
Using the supplied adhesive labels, tag both ends of each cable with the
color-coded label corresponding to the DC output.
For further information on setting up PSG connections, refer to the Titration
Equipment Installation Guide.

