DeltaSol
®
B Pro
© RESOL 04026 deltasol_b_pro.mon.pmd
Page 12/24
constantly green: everything o.k.
red/green flashing: initialisation phase
manual operation
red flashing: sensor defect
3.2.13 LED blinking codes
The thermostat function works independently from the
solar operation and can e.g. be used for use of surplus
energy or after-heating. Factory settings: TO = 40 °C, TF =
45 °C
•TO=TF
the thermostat function is deactivated, in this case
relay output R2 is activated if the maximum store
temperature is exceeded
•TO<TF
the thermostat function is used for after-heating
•TO>TF
the thermostat function is used as use of surplus
energy
If the 2nd relay output is activated, in the display is
shown
.

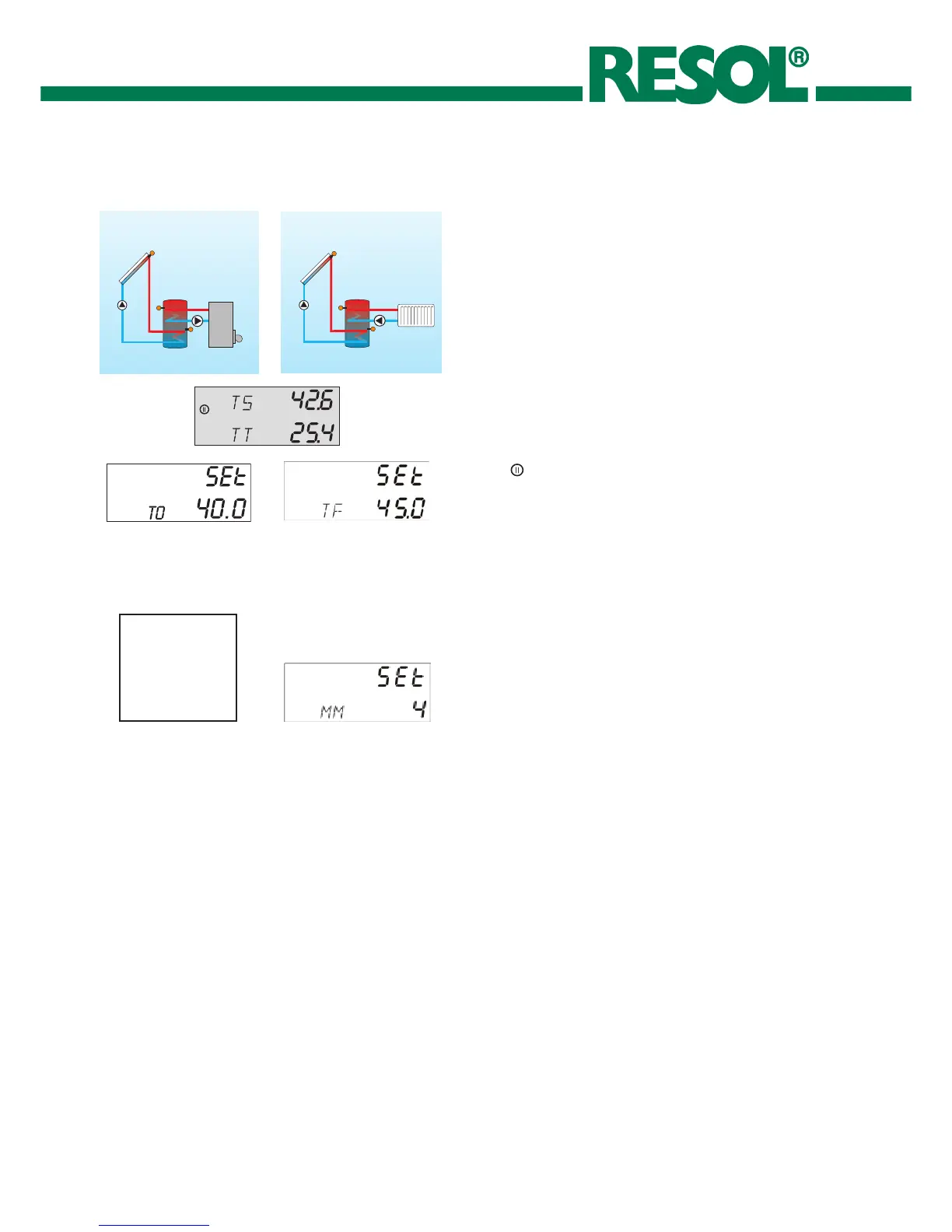

3.2.11Thermostat function (TO, TF)
(System 4, FN=4)
After heating use of surplus energy
The operating mode of the controller can manually be set
for control- and service works. Choose the adjustment
value MM, which allows the following adjustments:
3.2.12 Operation mode (MM)
•MM=Mode Manual
Manual mode:
0 : Control lamp flashes red/green. Relay 1 and 2 off
1 : Control lamp flashes red/green. Relay 1 on, relay
2 off
2 : Control lamp flashes red/green. Relay 1 off, relay
2 on
3 : Control lamp flashes red/green. Relay 1 and 2 on
4 : Control lamp flashes green. Automatic operation
MM R1 R2
0 off off
1 on off
2 off on
3 on on
4 auto auto
