DeltaSol
®
B Pro
© RESOL 04026 deltasol_b_pro.mon.pmd
Page 7/24
1
2
3
1
2
3
3. Operation and function

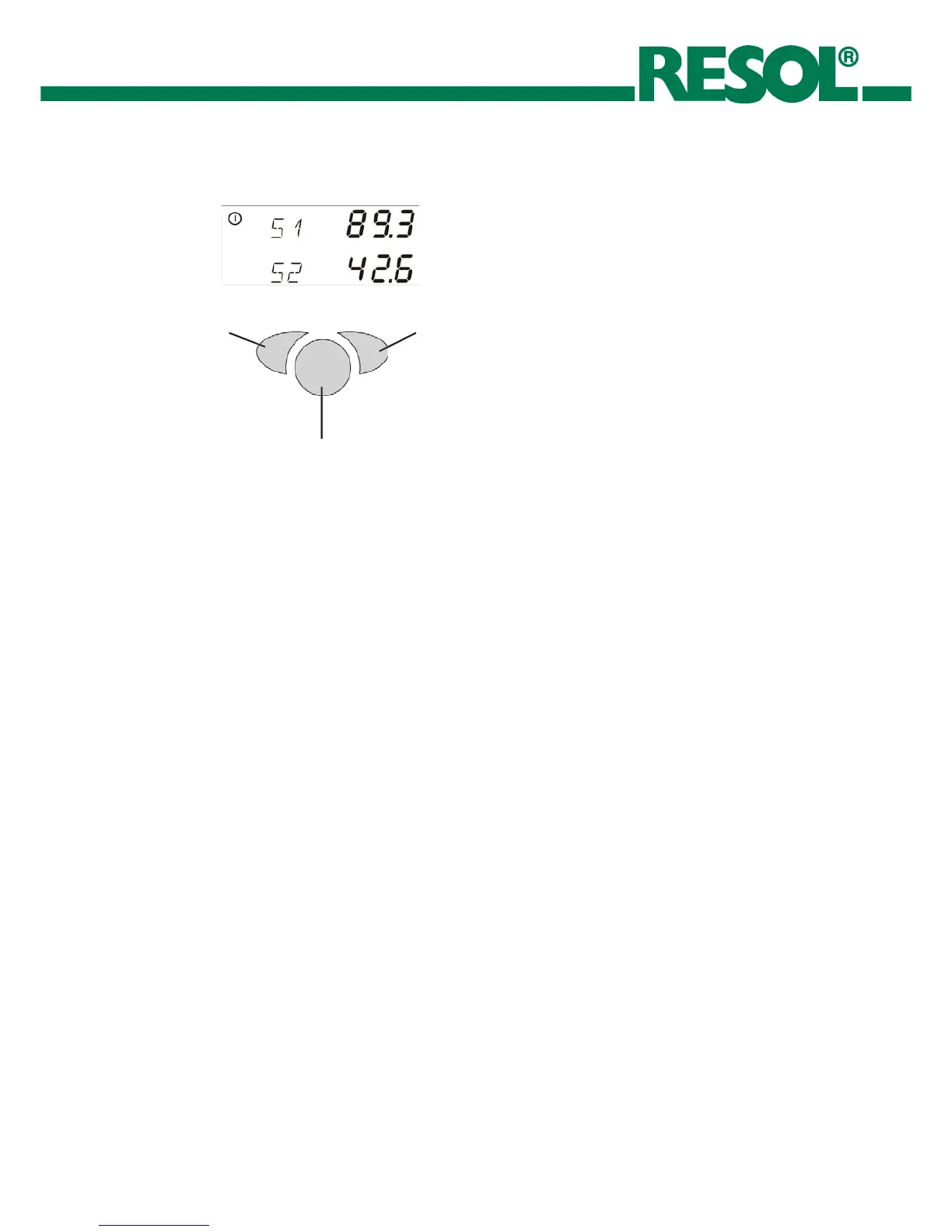

3.1 Adjustment keys
The controller is only operated by pushbuttons below the
display. The forward-key (1) is used for scrolling forward
through the indication menu or to increase the adjustment
values. The backwards-key (2) is accordingly used for the
reverse function.
The adjustment channels follow the pure indication channels
in the display. In order to come to these channels, press the
forward key to channel H1 or H2 for 2 sec. If an
adjustment value is shown on the display, SEt is indicated.
In this case you can press the key „Set“ (3) in order to
change into input mode.
y Select a channel by keys 1 and 2
y Shortly press key 3, so that „SEt“ flashes
y Adjust the value by keys 1 and 2
y Shortly press key 3, so that „SEt“ permanently appears,
the adjusted value is now saved
backwards
forwards
set
(selection / adjustment mode)
3.2 Controller parameter / indication channnels
• S1 = Sensor 1
• S2 = Sensor 2
• S3 = Sensor 3
TT if FN 4 is activated
•TT = Temperature Thermostat
• S4 = Sensor 4
• H1 = Hours of Oparation Relay 1
• H2 = Hours of Oparation Relay 2
• FN = FuNction
1 : 2 separated ∆T-circuits
2 : 2 stores, 1 collector / 2 stores
3 : East/West system, 2 collectors / 1 store
4 : 1 store with thermostat function
1 collector / 1 store with thermostat function
• DO 1 = TemperatureDifference On Relay 1
• DF 1 = TemperaturDifference OfF Relais 1
• SX 1 = StorageTemperatur MaXimum Relay 1
• CL 1 = CollectorTemperature Limited Relay 1
• CX 1 = CollectorTemperature MaXimum Relay 1
• CN 1 = CollectorTemperature MiNimum
• OC 1 = Option Cooling Relay 1
system cooling on/off circuit 1
• DO 2 = TemperatureDifference On Relay 2
• DF 2 = TemperaturDifference OfF Relay 2
• SX 2 = StorageTemperatur MaXimum Relay 2
• CL 2 = CollectorTemperature Limited Relay 2
• CX 2 = CollectorTemperature MaXimum Relay 2
• CN 2 = CollectorTemperature MiNimum Relay 2
• OC 2 = Option Cooling Relay 2
system cooling on/off circuit 2
• PR = Priority
• TS = T ime Stop
Oscillating stop
TR = Time Run
Oscillating pause
•TO = T hermostatTemperature On
• TF = T hermostatTemperature OfF
• MM = Mode Manual
0 : Relay 1 and 2 aus
1 : Relay 1 on, Relais 2 off
2 : Relay 1 off, Relais 2 on
3 : Relay 1 and 2 on
4 : automatic regulation
• PG = ProGram
Program number
•VN=Version Number
Version number
Please note: The controller is equipped with a security
switch-off of the store, which prevents a further loading of
the store at 95 °C store temperature.
