3.2.1 Indication channels S1-S4
The indication channels S1-S4 indicate the current
temperatures of the sensors S1-S4 in °C. If the thermostat
function is activated (FN=4), the channel TT (thermostat
temperature) is indicated.
3.2.2 Indication channels H1 and H2
The indication channels H1 and H2 (if FN1 or FN3 are
activated) indicate the solar operating hours of the solar
pump or the solar operating hours of the consumer
connected to the relays R1 and R2. The operating hours sum
is stored every 6 hours, so in case of a power blackout the
maximum difference would be 6 hours. This indication value
can not be reset.

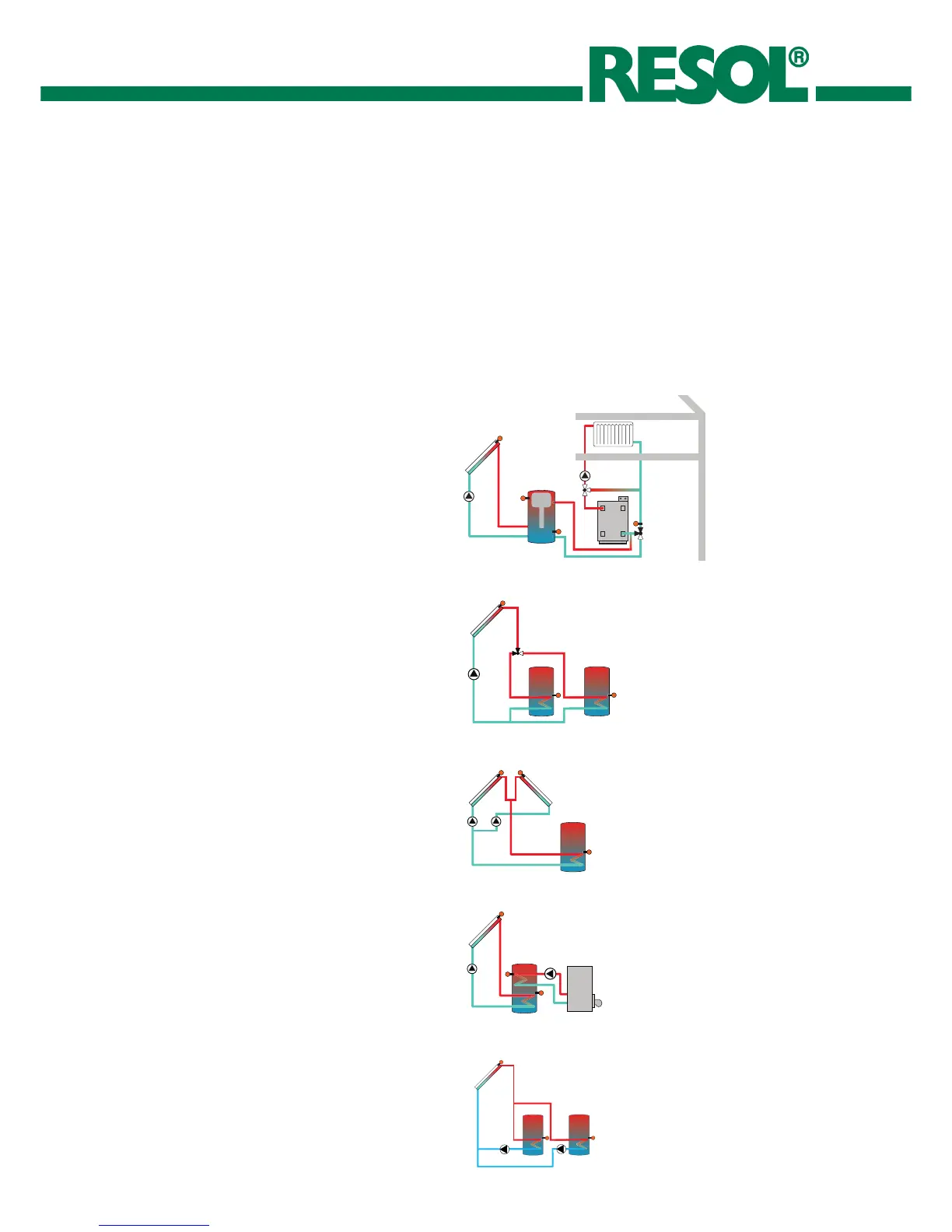

3.2.3 Function FN
FN=1: 2 separate
∆∆
∆∆
∆T-circuits
FN=2: 2 stores 1 collector / 2 stores
FN=3: East/west 2 collectors / 1 store
FN=4: 1 store and thermostat function
1 collector / 1 store with thermostat
function
For regulation of 2 independent differential-circuits with
separated adjustments.
For regulation of a system with 1 collector and 2 stores by
means of a 3-way-valve. The stores are charged according to
the priority logic (oscillating charge).
For realization of a thermostat function e.g. for using of
surplus energy or after heating function.
For regulation of a system with east/west collectors and one
store my means of 2 pumps.
FN=5: 2 stores
1 collector / 1 store
pump logic
For regulation of a system with 2 stores and 1 collector. The
stores are charged by means of 2 pumps and priority logic
(PR).
