DeltaSol
®
B Pro
© RESOL 04026 deltasol_b_pro.mon.pmd
Page 19/24
S1
S2
S3
R1
R2
Necessary adjustment:
Channel FN=5

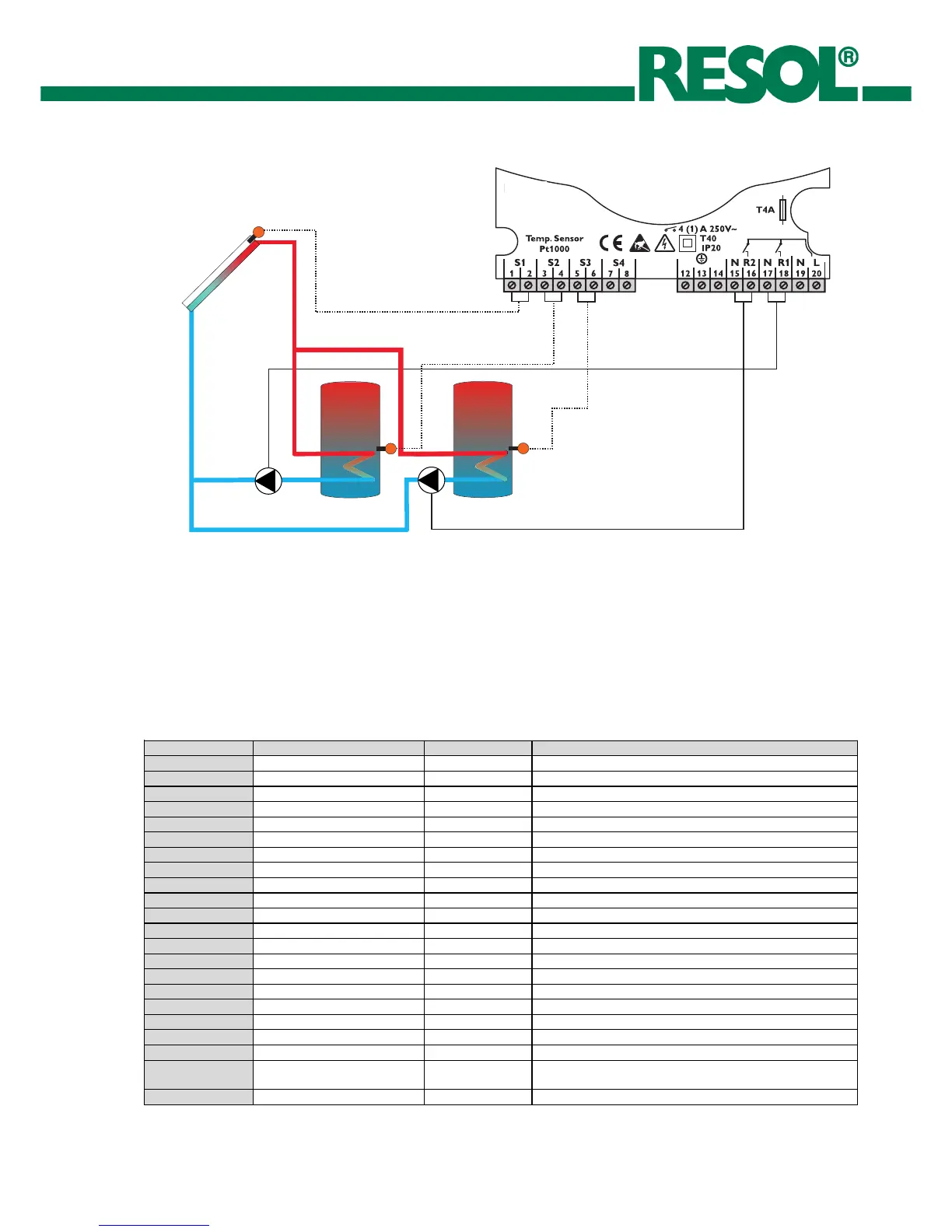

6.6 Solar system with 1 collector
and 2 stores: Pump logic
Channel Factory setting Change to Remark
S1 Sensor temperature S1 ------------------- Collector temperature
S2 Sensor temperature S2 ------------------- Store temperature1
S3
Sensor temperature S3 ------------------- Store temperature 2
S4 Sensor temperature S4 ------------------- Measuring sensor only, without operational function
H1 Hours of operation relay 1 ------------------- Control value
H2 Hours of operation relay 2 ------------------- Control value
FN 1 5 FN5 = Solar system with 2 stores and pump charge logic
DO/1 6 Switch-on temperature difference store 1
DF/1 4 Switch-off temperature difference store 1
SX/1 60 Maximum store temperature limitation 1
CL/1 140 Collector temperature limitation
CX/1 120 Maximum collector temperature
CN/1 10 Minimum temperature limitation is deactivated
OC/1
1 System cooling is activated
DO/2 6 Switch-on temperature difference store 2
DF/2 4 Switch-off temperature difference store 2
SX/2 60 Maximum store temperature limitation store 2
PR 1 Priority for store 1
TS 02:00 Pendulum deceleration time
TR 15:00 Pendulum charing time
MM 4
Manual mode
MM 4 = automatic operation
PG/VN Program number/version number
The controller compares the temperature at the temperature
sensor S1 with that of S2 and S3. If the measured
temperature differences are higher than the adjusted values
for switch-on temperature differences (DO/1) or (DO/2), in
consideration of the store priority PR the pump R1 or R2
is operated and loaded up until the adjusted maximum
temperature (SX/1/2) is reached. Priority must be given to
one of the two stores, as no parallel loading is possible.
