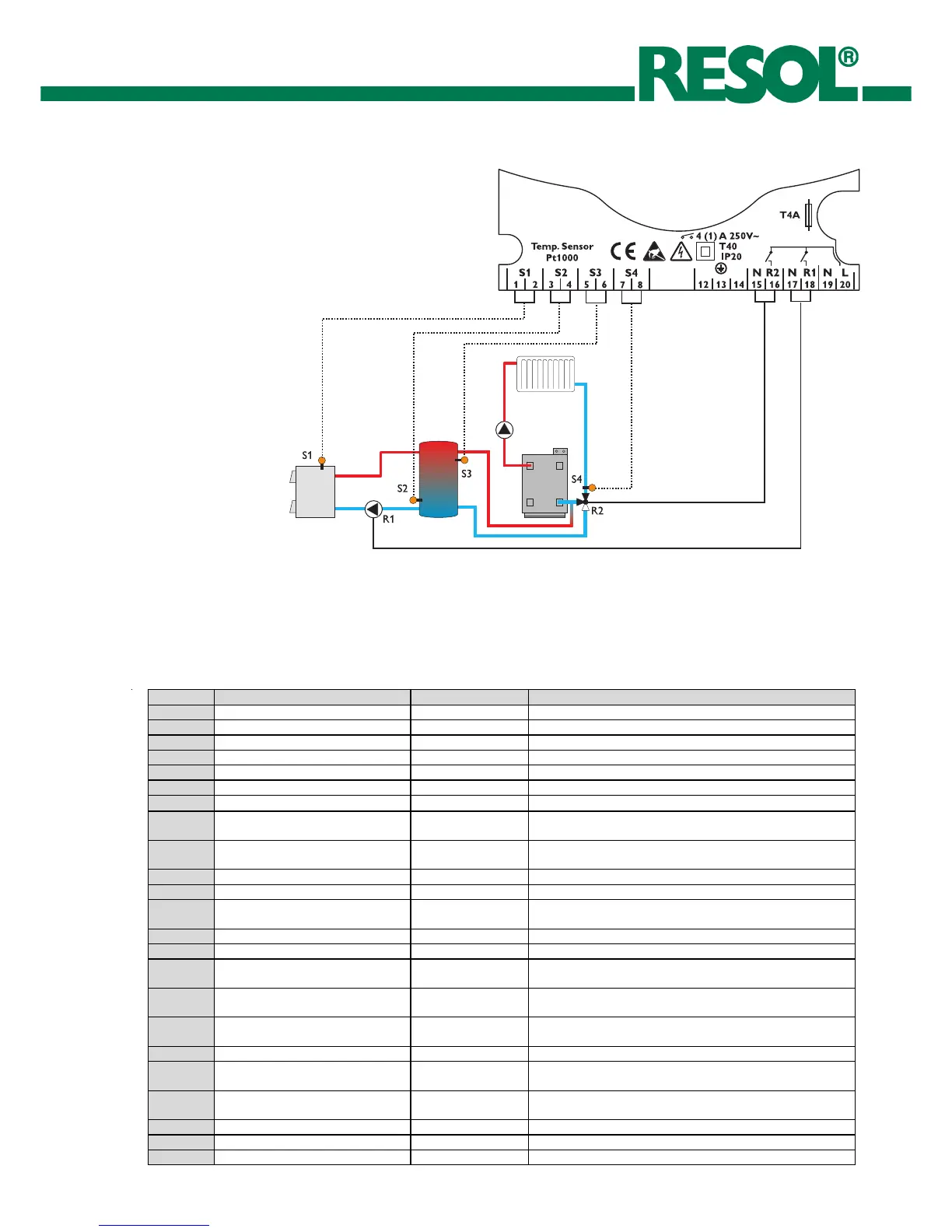

6.2 System with store charge by solid hot fuel
boiler with heating reverse raising
The solid hot fuel boiler is added on by control of the pump
R1, if the switch-on temperature difference (DO/1) as well
as the aditionally preadjusted minimum temperature (CN/
1) is exceeded (in order to avoid flue gas condensation).
The store is only loaded up to the adjusted maximum store
Channel Factory setting Change to Remark
S1
sensor temperature S1 ------------------- Measuring value
S2 sensor temperature S2 ------------------- Measuring value
S3 sensor temperature S3 ------------------- Measuring value
S4 sensor temperature S4 ------------------- Measuring value
H1 Hours of operation relay 1 ------------------- Control value
H2
Hours of operation relay 2 ------------------- Control value
FN 1 1
FN1 = 2 separated ∆T-circuits
DO/1 6
switch-on temperature difference
loading pump for solid fuel boiler
DF/1 4
switch-off temperature difference
loading pump for solid fuel boiler
SX/1 60 Maximum store temperature limitation
CL/1
140 Solid fuel boiler emergency shut down temperature
CX/1 120 ------------
switch-on temperature for system cooling has no influence,
as the system cooling is deactivated (OC/1 = 0)
CN/1
10 60 60 °C minimum temperature to avoid condensation of flue gas
OC/1 1 0 System cooling deactivated
DO/2 6
Switch-on temperature difference for 3-way-valve
reverse lifting
DF/2 4
Switch-off temperature difference for 3-way-valve
reverse lifting
SX/2 60
The 3-ay-valve is switched off as soon as the adjusted value is
reached in the heating circuit reverse.
CL/2 140 This adjustment channel has no relevance in this case.
CX/2 120
Switch-on temperature for system cooling has no influence,as
the system cooling is deactivated (OC/2 = 0)
CN/2 10
Minimum temperature limitation for reverse lifting is
deactivated
OC/2
1 0 System cooling is deactivated
MM 4 Manual mode/MM 4 = automatic operation
PG/VN Program number/version number
temperature (SX/1). At the same time a ∆T-reverse raising
is effected independently from the solid hot fuel boiler. If
the switch-on temperature difference (DO/2) between the
sensors S3 and S4 is exceeded, a 3-way-valve is activated
for heating circuit support by relay output R2.
