Installation Indications, functions and options MessagesCommissioningOperation and function

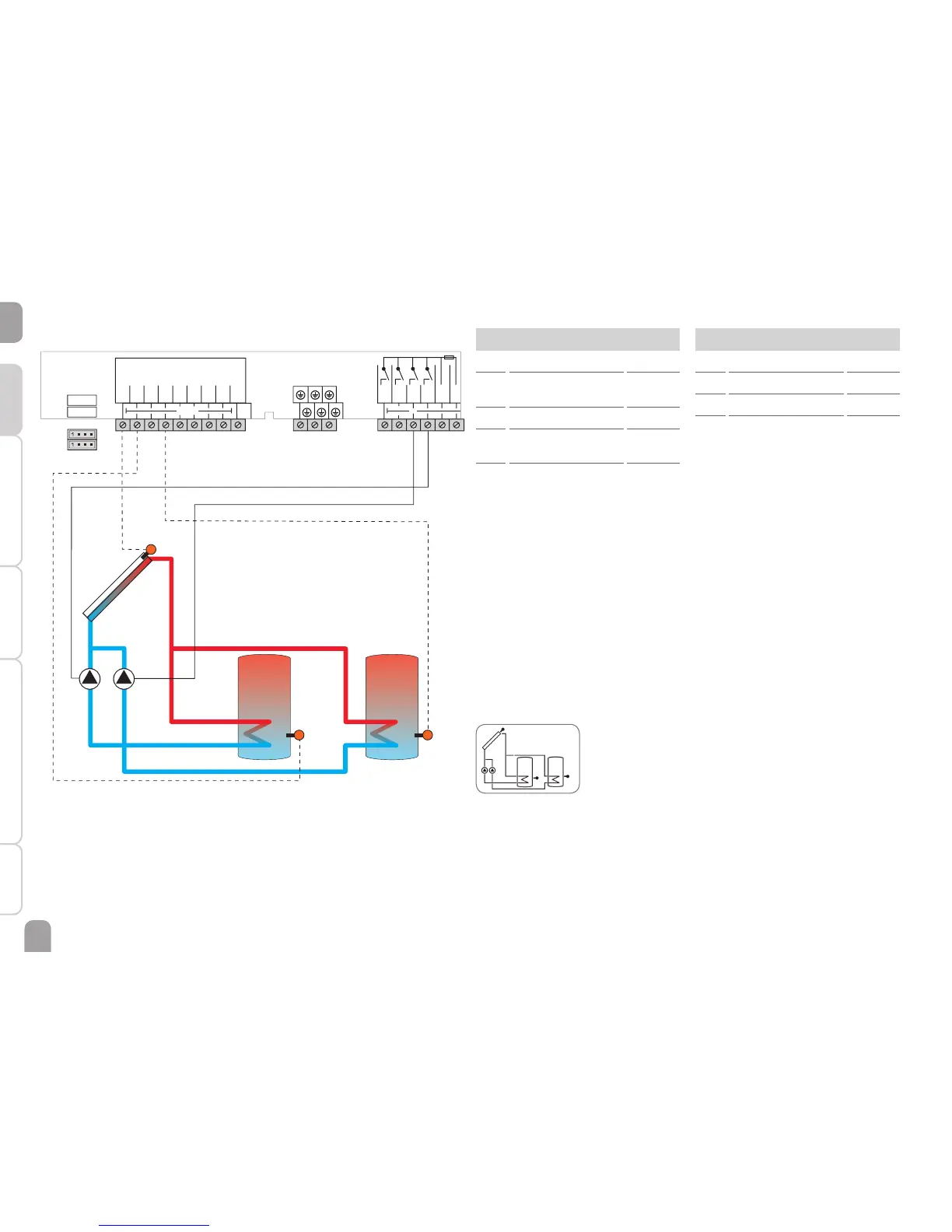

System 6: 2-store solar system with pump logic
The controller compares the temperature at sensor S1 to the temperatures at
sensors S2 and S4. If the measured temperature differences are higher than the
adjusted switch-on temperature differences, the pump (R1 and/or R2) will be
activated and the corresponding store will be loaded up to the adjusted store
maximum or set temperature respectively at most. The priority logic effects prior
loading of store 1.
R2R1
S4
S2
S1
Te mp. Sensor
Pt1000
L
R3
R2
R1
GND
S1
S2
S3
S4
S5
VBus
PWM 1
PWM 2
N
R4
V40
VBus
GND
L'
VFS
RPS
Sensors
S1 Temperature collector 1 / GND
S2 Temperature store 1
base
2 / GND
S3 Free 3 / GND
S4 Temperature store 2
base
4 / GND
S5 Free 5 / GND
Relay
R1 Solar pump store 1 R1 / N / PE
R2 Solar pump store 2 R2 / N / PE
R3 Free R3 / N / PE
R4 Free R4 / R4
