7 Indications, functions and options
Note:
The values and adjustment channels as well as the adjustment ranges de-
pend on the system selected, the functions and options as well as the user
code entered and the system components connected to the controller.
An additional document including a list with all options and parameters
can be downloaded at www.resol.com.
7.1 Status level

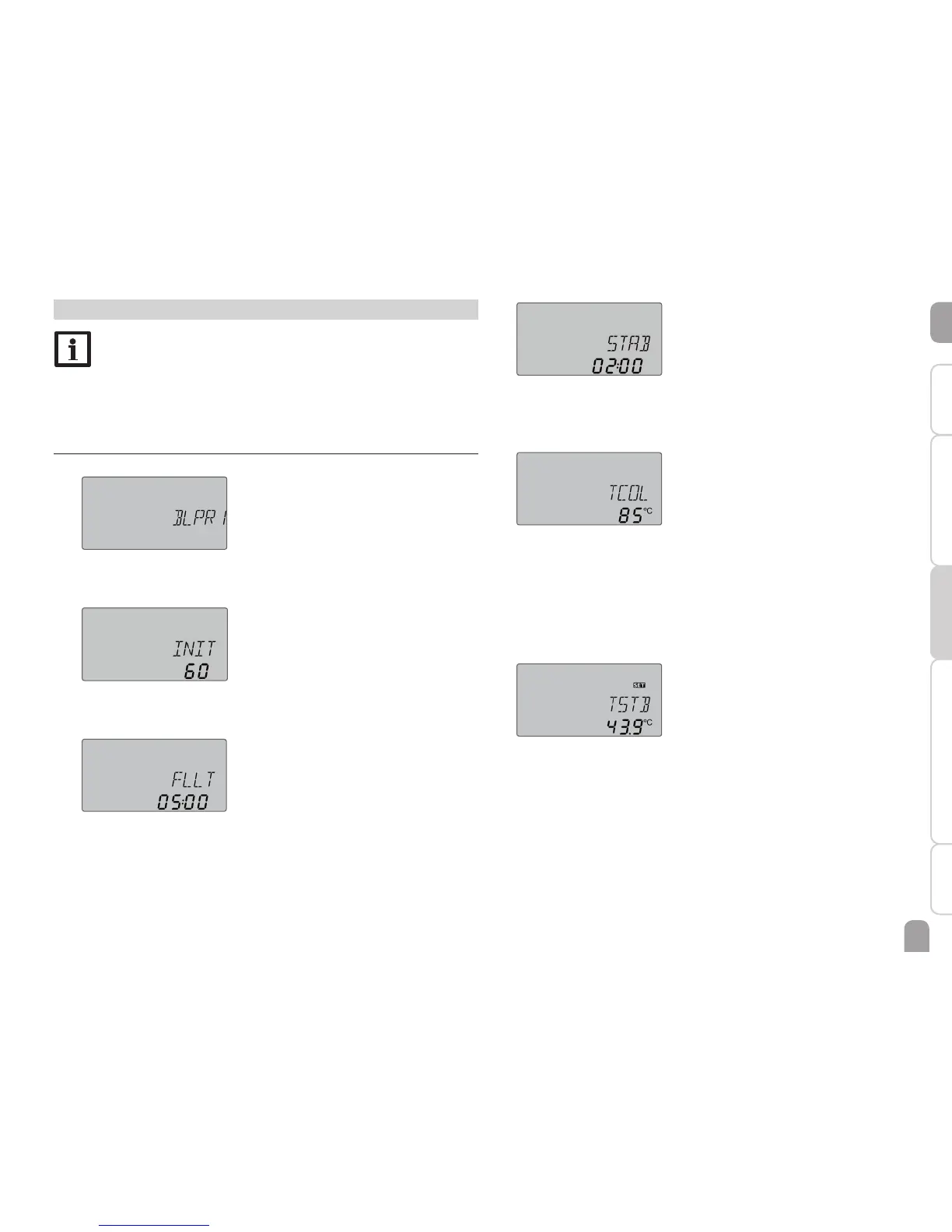

Display of blocking protection time
BLPR(2, 3)
Blocking protection active
Display of drainback time periods
INIT
Initialisation active
Indicates the time adjusted in tDTO, running backwards.
FLLT
Filling time active
Indicates the time adjusted in tFLL, running backwards.
STAB
Stabilisation
Indicates the time adjusted in tSTB, running backwards.
Display of collector temperatures
TCOL(2)
Collector temperature
Display range: -40 … +260 °C
Displays the current collector temperature.
• TCOL : Collector temperature (1-collector system)
• TCOL1 : Collector temperature 1 (2-collector system)
• TCOL2 : Collector temperature 2 (2-collector system)
Display of store temperatures
TSTB, etc.
Store temperatures
Display range: -40 … +260 °C
Displays the current store temperature.
• TSTB : Store temperature base
• TSTT : Store temperature top
in 2-store systems (only if available):
• TST1T : Temperature store 1 top
• TST1B : Temperature store 1 base
• TST2T : Temperature store 2 top
• TST2B : Temperature store 2 base
