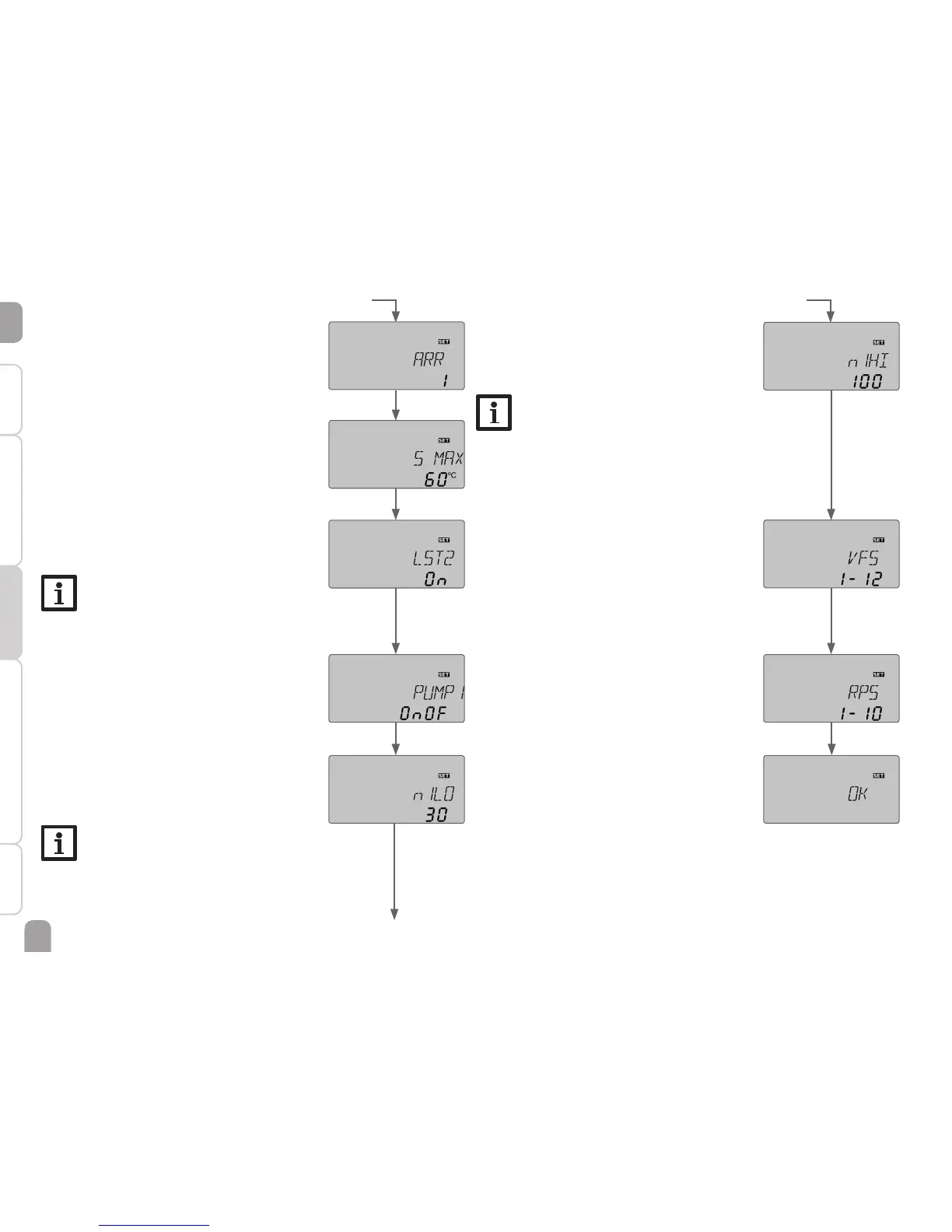

5. Arrangement:
Î Adjust the desired system (see page 46).
6. Maximum store temperature:
Î Adjust the maximum store temperature. In 2-store
systems, the adjustment has to be carried out for
S1MAX and S2MAX as well (see page 48).
7. Loading store 2:
Î Switch on or off the “loading store 2” option (see
page 48).
Note:
“Loading store 2” is only available if a 2-store
system or store loading in layers has been
previously selected in the sub-channel ARR.
8. Pump control type:
Î Select the pump control type for PUMP1. In sys-
tems with 2 pumps, carry out this adjustment for
PUMP2 as well.
9. Minimum speed:
Î Adjust the minimum speed of the pump PUMP1.
In systems with 2 pumps, carry out this adjust-
ment for PUMP2 as well.
Note:
The minimum speed can only be adjusted if
pulse control (PULS) or PWM control (A,
B, C) has been selected in the sub-channel
PUMP1,2.
10. Maximum speed:
Î Adjust the maximum speed of the pump PUMP1.
In systems with 2 pumps, carry out this adjust-
ment for PUMP2 as well.
Note:
The maximum speed can only be adjusted
if pulse control (PULS) or PWM control (A,
B, C) has been selected in the sub-channel
PUMP1,2.
11. Range of the ow rate sensor:
Î Adjust the range of the sensor, if the ow rate
sensor is connected.
12. Range of the pressure sensor:
Î Adjust the range of the sensor, if the pressure sen-
sor is connected.
Î Complete the commissioning menu by
pressing button ➄:
The controller is then ready for operation and nor-
mally the factory settings will give close to optimum
operation.
